Operator Cab
Operation Manual43

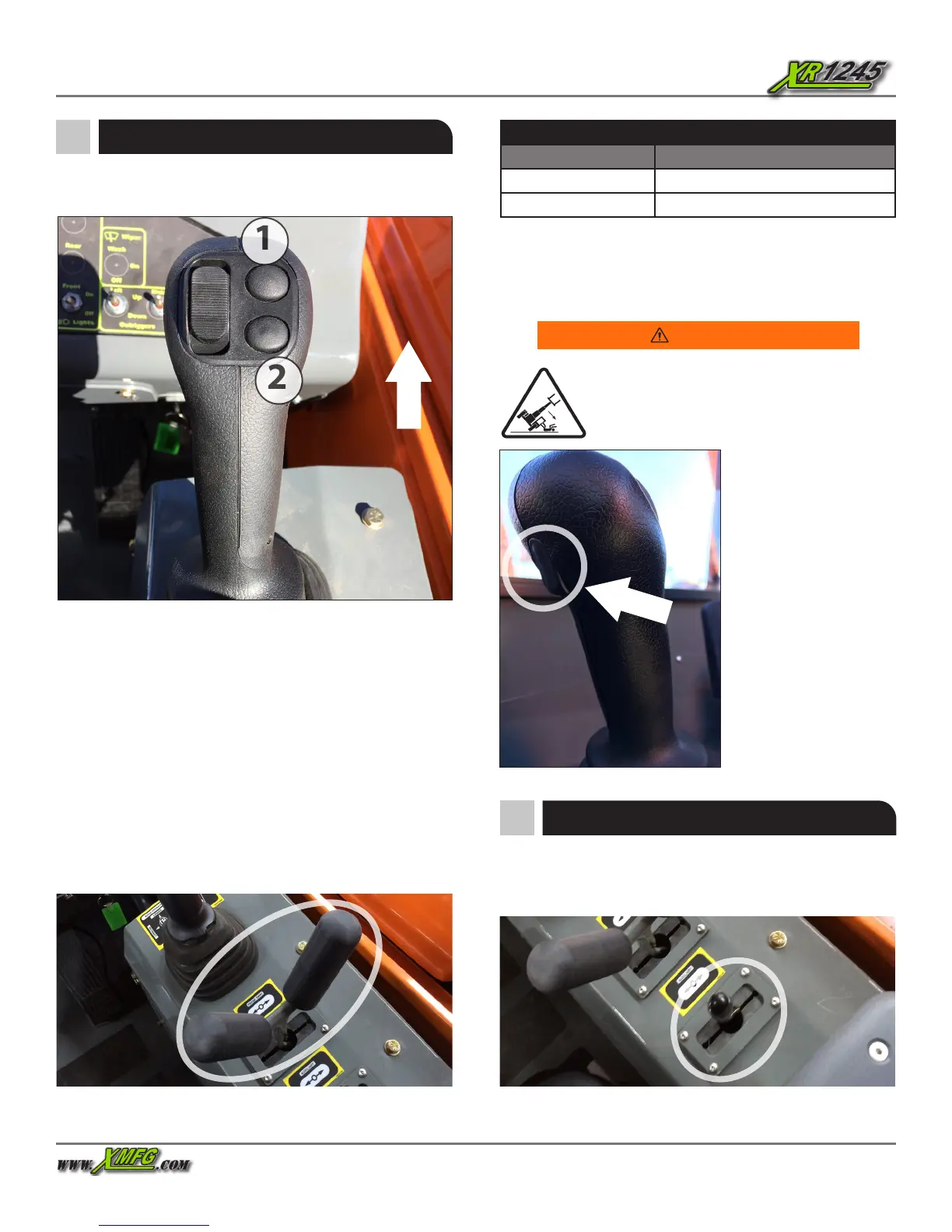

Attachment Tilt Switch
The Attachment Tilt Switch located on the top of the boom
control handle controls attachment tilt functions.
Figure 46. Attachment Tilt Switch - (A) Tilt Down (B) Tilt Up
The Attachment Tilt Switch:
• Controls the attachment tilt functions by rolling the
switch upward and downward. For the attachment to
tilt up, roll switch downward. For the attachment to tilt
down, roll switch upward.
• Is a variable speed switch. Function speed is proportional
to how far the switch is rolled. The more the switch is rolled
in the appropriate direction, the faster the corresponding
function will occur.
NOTE: The attachment carriage will retain any set angle
throughout boom raising, lowering, retracting, or extending
operations.
Figure 47. Frame Sway Control Handle
Frame Sway Control Handle
Function Purpose
Frame sway right Move handle right
Frame sway left Move handle left
NOTE: Lock the frame sway by placing the travel select lever
in NEUTRAL or applying the service or parking brake.
NOTE: Maximum frame sway is 22 overall or 11 each
direction, left and right.
Warning
The forklift includes a Frame Sway Override
switch. Improper use of the Frame Sway
Override switch could cause death, serious
injury, or property damage.
Auxiliary Attachment Control
The Auxiliary Attachment Control lever controls the functions
of approved optional attachments that can be mounted to
the forklift and require hydraulic supply for operation.
Figure 49. Auxiliary Attachment Control Lever
Figure 48. Frame Sway Over-
ride Switch
1
2
FRONT
OF
VEHICLE
The frame sway feature
becomes locked and
will not operate when
the boom is raised 40°
or more. Pressing the
Frame Sway Override
switch (the trigger) on
the control handle will
override the lockout
feature and allow slow
frame sway.
