Xtreme xr1245 User Manual

Operator Cab
Operation Manual37

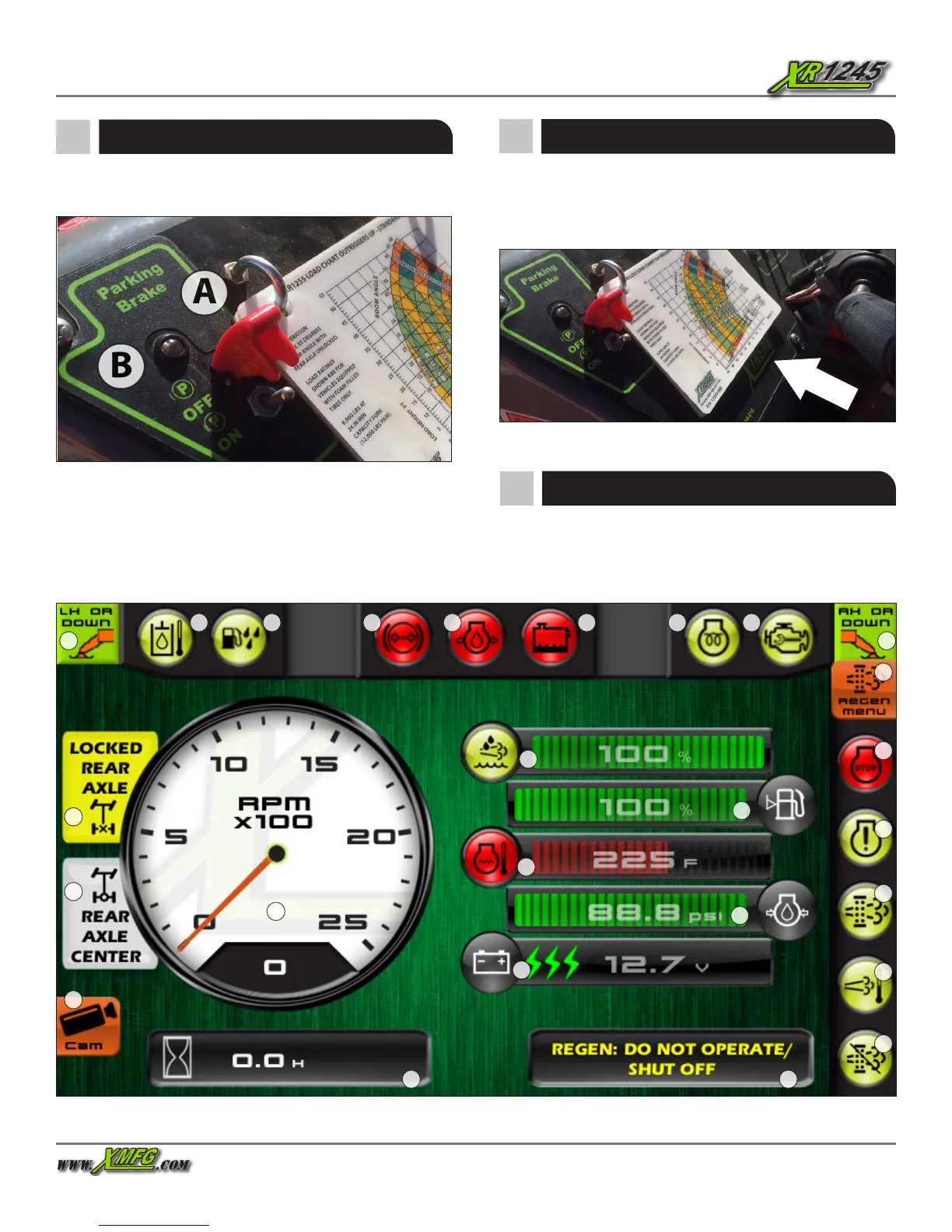

Parking Brake Switch
The Parking Brake switch (A) has two (2) positions: ON and
OFF.
Figure 27. Parking Brake
(A) Parking Brake Switch Guard (B) Parking Brake Indicator
Set Parking Brake switch (A) to ON (DOWN) to engage the
parking brake and to OFF (UP) to disengage the parking brake.
The parking brake indicator (B) illuminates when the parking
brake is set to ON (engaged).
A
B
Load Capacity Charts
Load Capacity Charts are located on the left side of the front
control panel. Load Capacity Charts are provided to assist the
operator in determining how to safely handle loads with the
forklift, including boom angle, height, and reach.
Figure 28. Load Capacity Charts
Display Indicators
The display allows the operator to view vital engine
information and other critical functions, including gauge
display, engine diagnostics to monitor engine condition and
performance, fault codes, and warning indicators.
Figure 29. Display Indicators
A
B
C
D
E
F
G
H
I
J
L
M
N
O
P
Q
R
T
U
V
S
W
X
π
∑∑
