46 RiverSurveyor S5/M9 System Manual (February 2013)
6.11.3. Start Moving
Click the Start Moving button (or F5) and the Transect window (Figure 45) will be displayed.
Try to keep the vessel speed and direction constant as it progresses across the river to the end
edge.

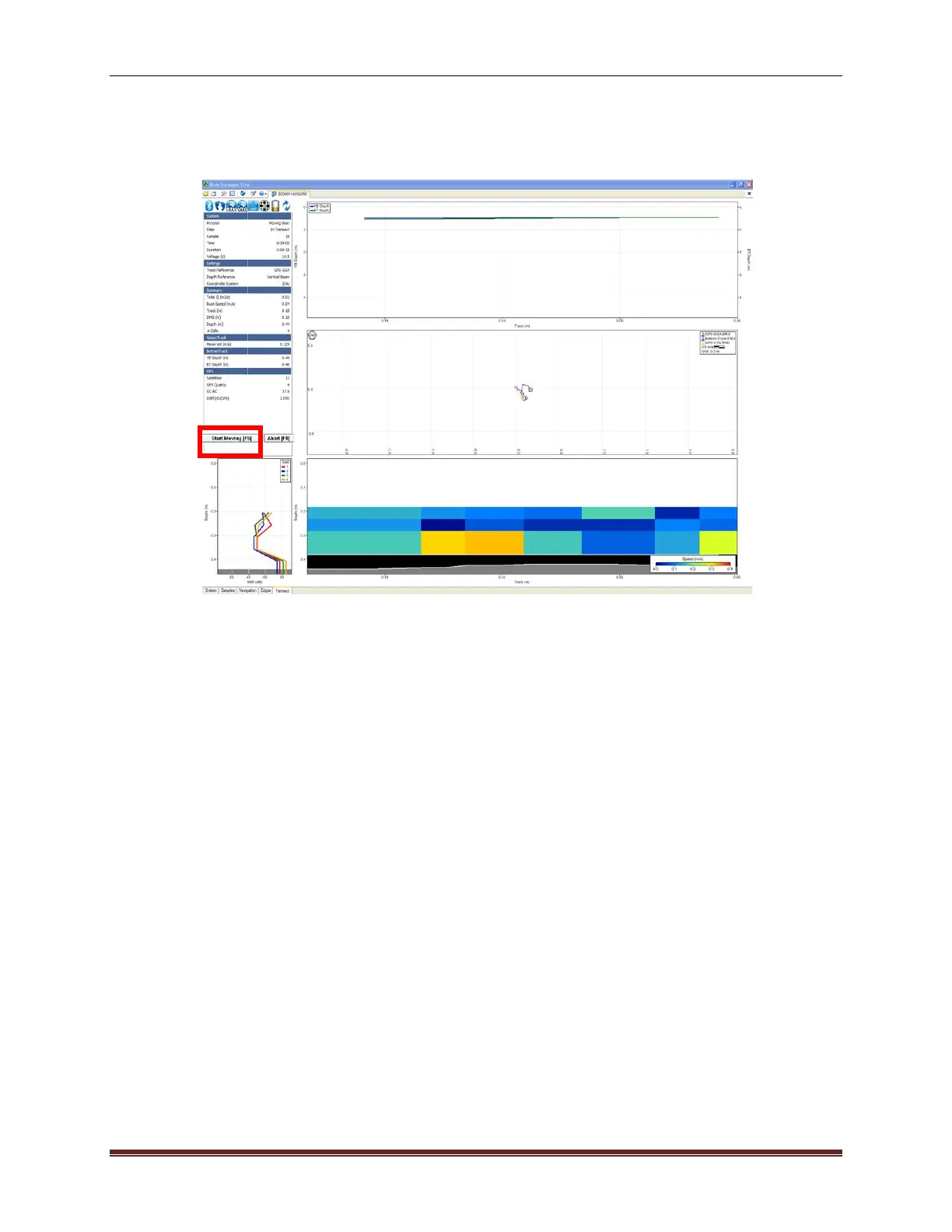

Figure 45. Data Collection – Start Moving
6.11.4.
End Edge
Click the End Edge button (or F5) when the vessel reaches the edge of the opposite bank
(Figure 46). A dialog box will prompt you to describe the End Edge (Figure 47). Note that the
screen changes from the Transect Tab to the Edges Tab. This allows detailed viewing of the
edge data collection. Be sure to collect at least 10 samples at the ending edge. Try to keep the
vessel as stationary as possible.
