SonTek, a Xylem brand
54 RiverSurveyor S5/M9 System Manual (February 2013)
From the list, select the desired system and press the corresponding soft key to Connect
(Figure 57). In the case that only one system is found, the software will connect automatically.
In the case that no RiverSurveyor system is found or within range, a “No device found” will be
displayed. Make sure that the dummy plug is installed, all system LEDs on the PCM are correct,
and the battery is charged and installed correctly. Then, click Search Again.

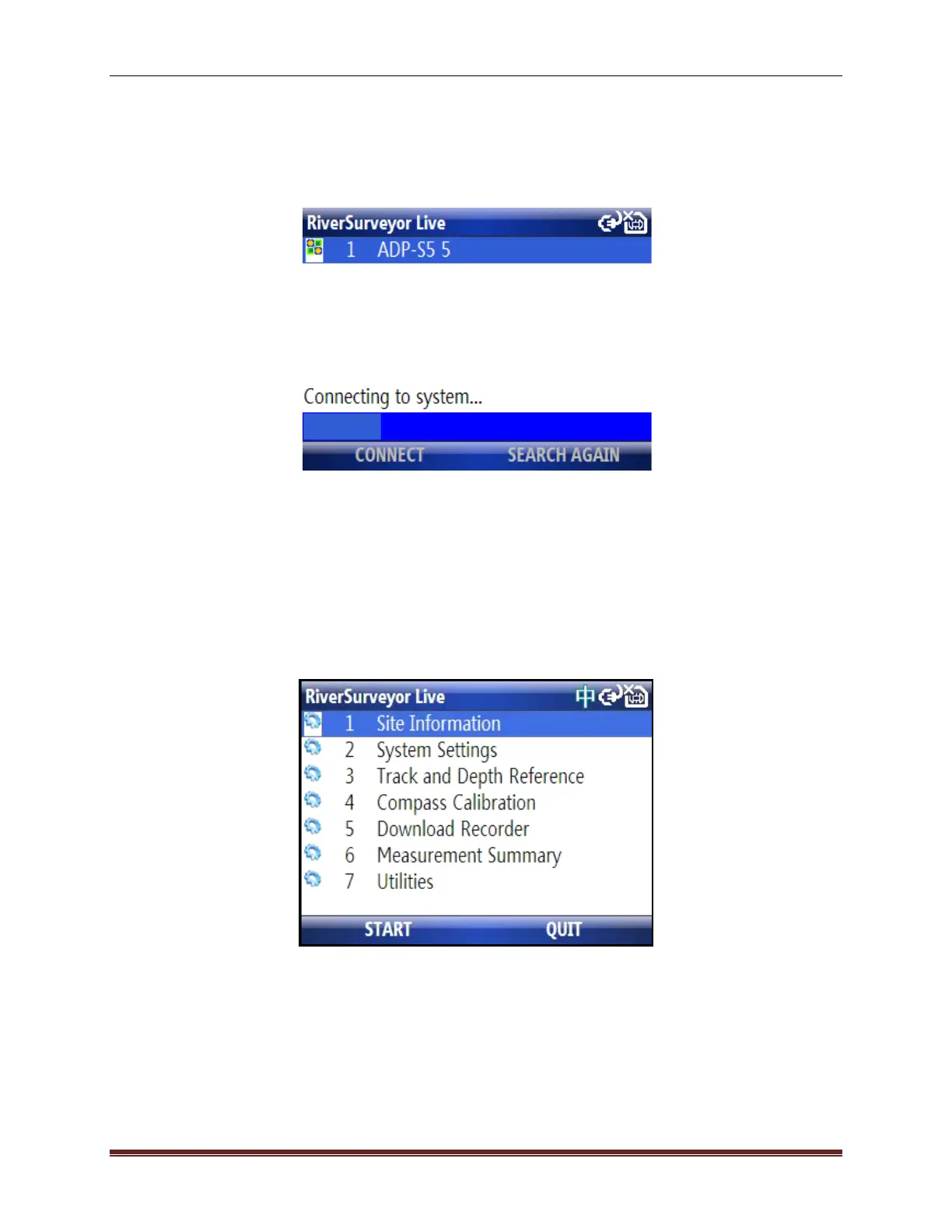

Figure 57. Connection to ADP with Serial Number ADP-S5 5
7.6. Preparing for a Measurement - Main Menu
Once a connection is established, the Main Menu (Figure 58) is displayed and is used to enter
site information and initial site parameters. Each of the menu items can be accessed using the
control pad or by pressing the corresponding number on the keypad. The
START and QUIT op-
tions (bottom bar) are selected using the soft keys.
Figure 58. Main Menu
