74 RiverSurveyor S5/M9 System Manual (February 2013)
8.3.2.
Data file Tabs
( )

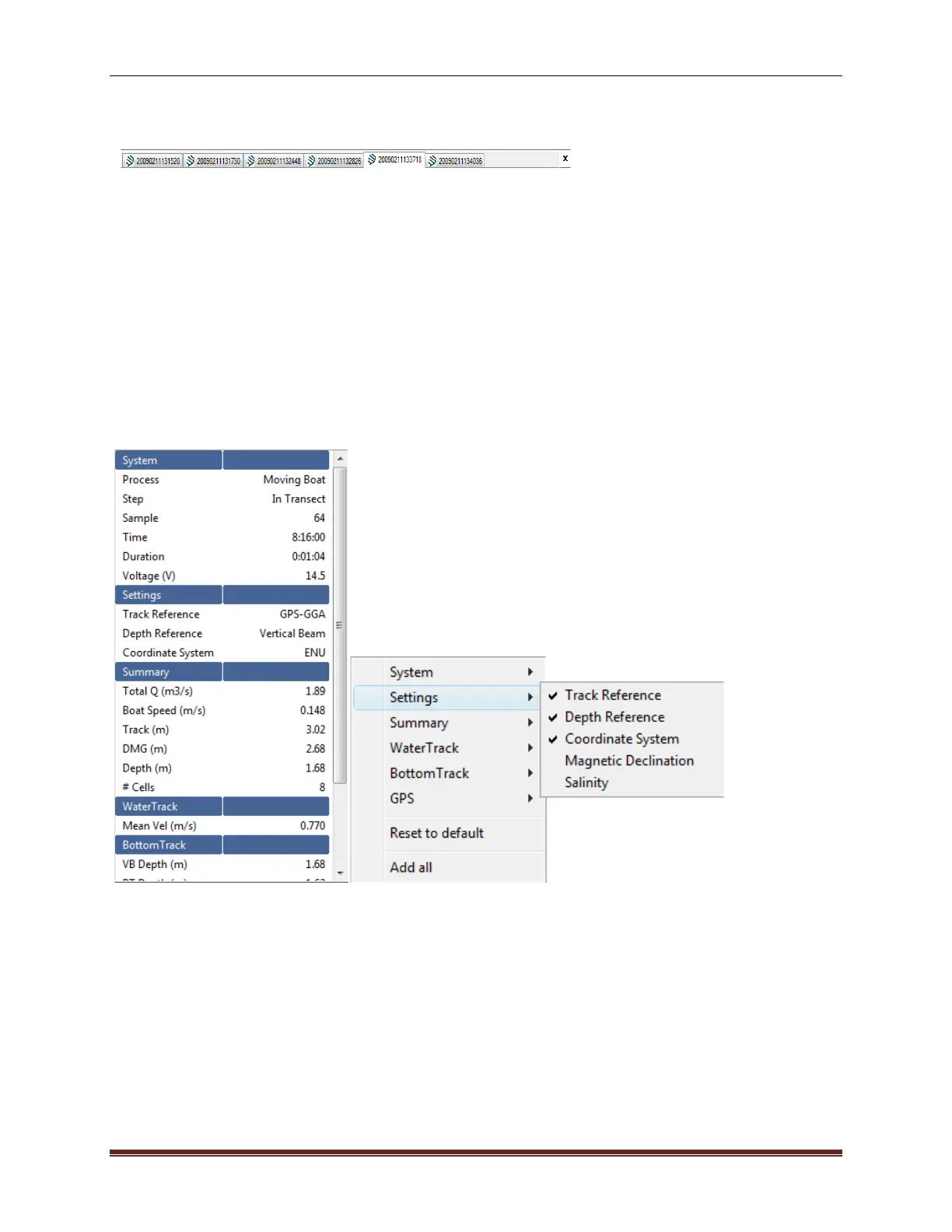

Figure 91 highlights the location of the Data file tabs. Each tab is an open file with the year,
month, day, hour, minute, second format (i.e. YYYYMMDDHHMMSS). The tabs are used to
toggle between open data files. Multiple files can be opened simultaneously. Users can swap
between tabs by clicking or using Ctrl+Tab or Ctrl+Shift+Tab. To close tabs, click the X or use
the Ctrl+F4 hot key.
8.3.3. Sidebar
The Sidebar displays the status icons as well as customizable tabular data and a profile graph
for the current sample. Status icons are explained in Appendix A. Right-click on the tabular data
to select the display options shown in Figure 92. In addition to the various data display options,
there is an “Add all” option to include all data fields or a “Reset to default” option to apply the
standard view.
Figure 92. Sidebar Tabular Data with Right Clicking Menu Options.
The graph portion of the Sidebar displays the vertical profile through the water column. Double-
click on the axes to change the scale. Right-click on the graph to display a pop-up menu that al-
lows for further customization of the graph. Below is an example for viewing the velocity profile.
After right clicking on the graph, select WaterTrack and then Velocity. This will display each ve-
locity component along with the Standard Deviation as a shaded band around each line (Figure
93).
