Read and understand all of the labels on your
machine. They contain important information
for safe and proper operation of your A
TV
.
Never remove any labels from your A
TV
. If a
label becomes difficult to read or comes of
f, a
replacement label is available from your
Y
amaha dealer
.
1-1
EBU00464

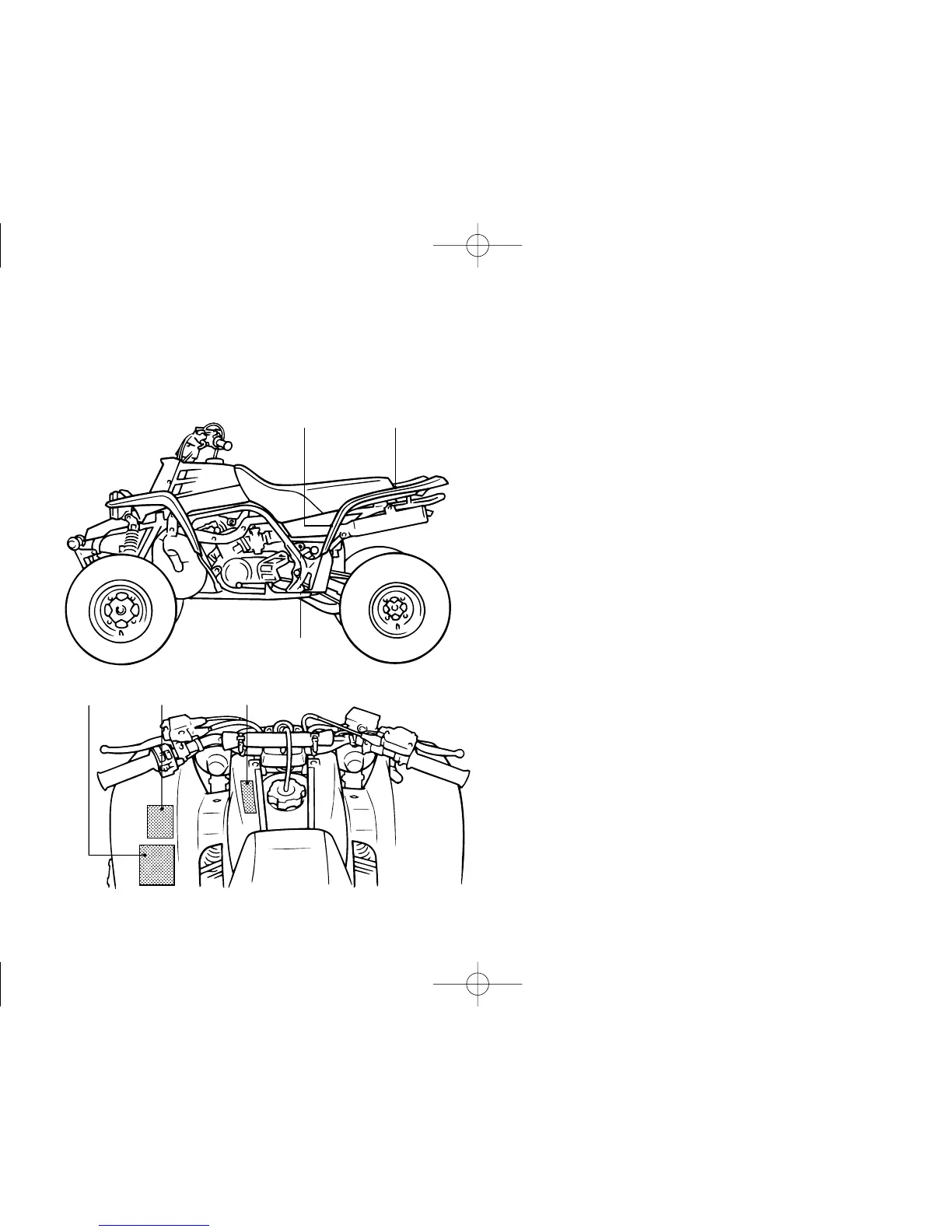

LOCA
TION OF THE W
ARNING AND
SPECIFICA
TION LABELS
q
e
t
wr
y
5FK-9-17-01 3/3/04 10:13 PM Page 8
9
11
Table of Contents
Default Chapter
4
Important Manual Information
4
Important Notice
5
Table of Contents
6
Location of the Warning and Specification Labels
10
Safety Information
13
Description and Machine Identification
20
Identification Number Records
21
Key Identification Number
21
Vehicle Identification Number
22
Model Label
22
Control Functions
23
Main Switch
23
Handlebar Switches
24
Throttle Lever
25
Throttle Override System
26
Speed Limiter
26
Clutch Lever
28
Front Brake Lever
28
Brake Pedal
29
Parking Brake
29
Shift Pedal
31
Kick Starter
31
Fuel Tank Cap
32
Fuel Cock
32
Starter (Choke)
33
Seat
34
Front Shock Absorber Adjustment
35
Rear Shock Absorber Adjustment
36
Specifications
39
Pre-Operation Checks
40
Front and Rear Brakes
42
Fuel
44
Engine Mixing Oil
45
Transmission Oil
46
Chain
46
Throttle Lever
46
Fittings and Fasteners
47
Lights
47
Switches
47
Tires
48
How to Measure Tire Pressure
49
Tire Wear Limit
50
Operation
51
Starting a Cold Engine
51
Starting a Warm Engine
53
Warming up
53
Shifting
54
To Start out and Accelerate
55
To Decelerate
56
Engine Break-In
57
Parking
58
Parking on a Slope
59
Accessories and Loading
60
Loading
61
Riding Your ATV
63
Getting to Know Your ATV
64
Ride with Care and Good Judgement
65
Be Careful Where You Ride
77
Turning Your ATV
84
Climbing Uphill
86
Riding Downhill
91
Crossing a Slope
93
Crossing through Shallow Water
95
Riding over Rough Terrain
97
Sliding and Skidding
98
What to Do if
100
What to Do
100
Periodic Maintenance and Adjustment
102
Owner's Manual and Tool Kit
102
Periodic Maintenance/Lubrication
104
Transmission Oil
107
Cooling System
109
Spark Plug Inspection
114
Air Filter Element Cleaning
115
Spark Arrester Cleaning
118
Carburetor Settings
120
Carburetor Setting Chart
121
Idle Speed Adjustment
127
Throttle Lever Adjustment
129
Front and Rear Brake Pad Inspection
130
Brake Fluid Level Check
131
Brake Fluid Replacement
132
Front Brake Lever Free Play
133
Brake Pedal Height Adjustment
134
Parking Brake Adjustment
135
Adjusting the Rear Brake Light Switch
137
Clutch Adjustment
137
Drive Chain Slack Check
138
Drive Chain Slack Adjustment
138
Lubricating the Drive Chain
139
Cable Inspection and Lubrication
140
Brake and Shift Pedal/Brake and Clutch Lever Lubrication
141
Lubricating the Front Upper and Lower Arm Pivots
141
Rear Arm Pivot Lubrication
142
Wheel Removal
143
Wheel Installation
143
Replacing the Headlight Bulb
144
Headlight Beam Adjustment
146
Tail/Brake Light Bulb Replacement
147
Troubleshooting
148
Troubleshooting Chart
149
Engine Overheating
150
No Spark
152
Cleaning and Storage
153
Cleaning
153
Storage
155
Specifications
156
Noise Regulation
161
Maintenance Record
162
5
