Transmission oil
Transmission oil measurement
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes,
and then stop it.
3. Remove the oil filler cap and wipe off the
dipstick with a clean rag. Insert the dip-
stick in the filler hole without screwing it
in.

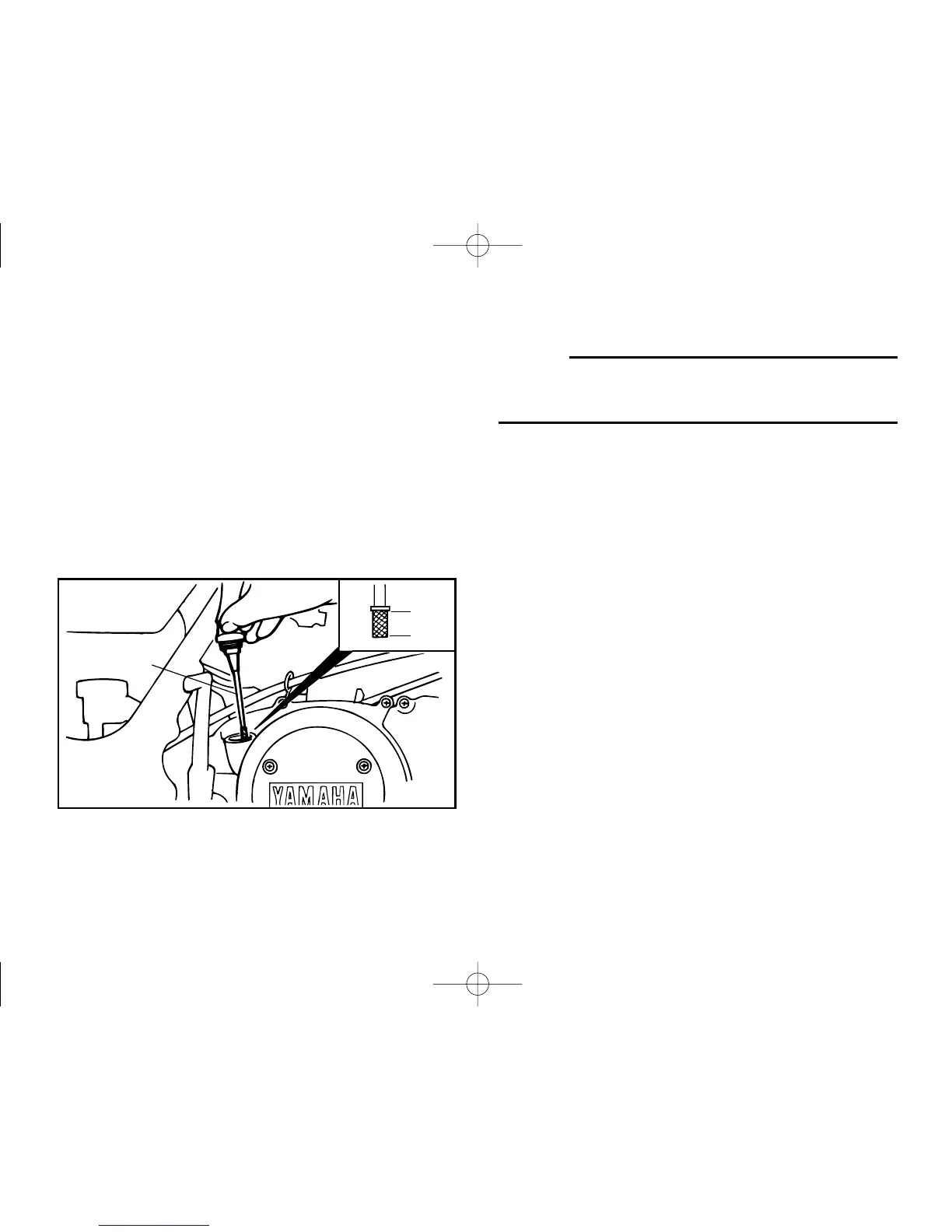

1. Dipstick 2. Maximum level mark 3. Minimum level mark
NOTE:
Wait a few minutes until the oil level settles
before checking.
4. Remove the dipstick and check the oil
level.
5. The oil level should be between the mini-
mum and maximum level marks. If the
level is low, add oil to raise it to the proper
level.
6. Install the oil filler cap.
Transmission oil replacement
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes
and then stop it.
3. Place a container under the engine to col-
lect the used oil.
4. Remove the oil filler cap and drain bolt to
drain the oil.
