EBU11440
Drive chain slack check
NOTE:
Move the ATV back and forth and find the tight-
est position of the drive chain. Check and/or
adjust the chain slack while it is in this tightest
position.
To check the drive chain slack, all tires must be
touching the ground and there should be no weight

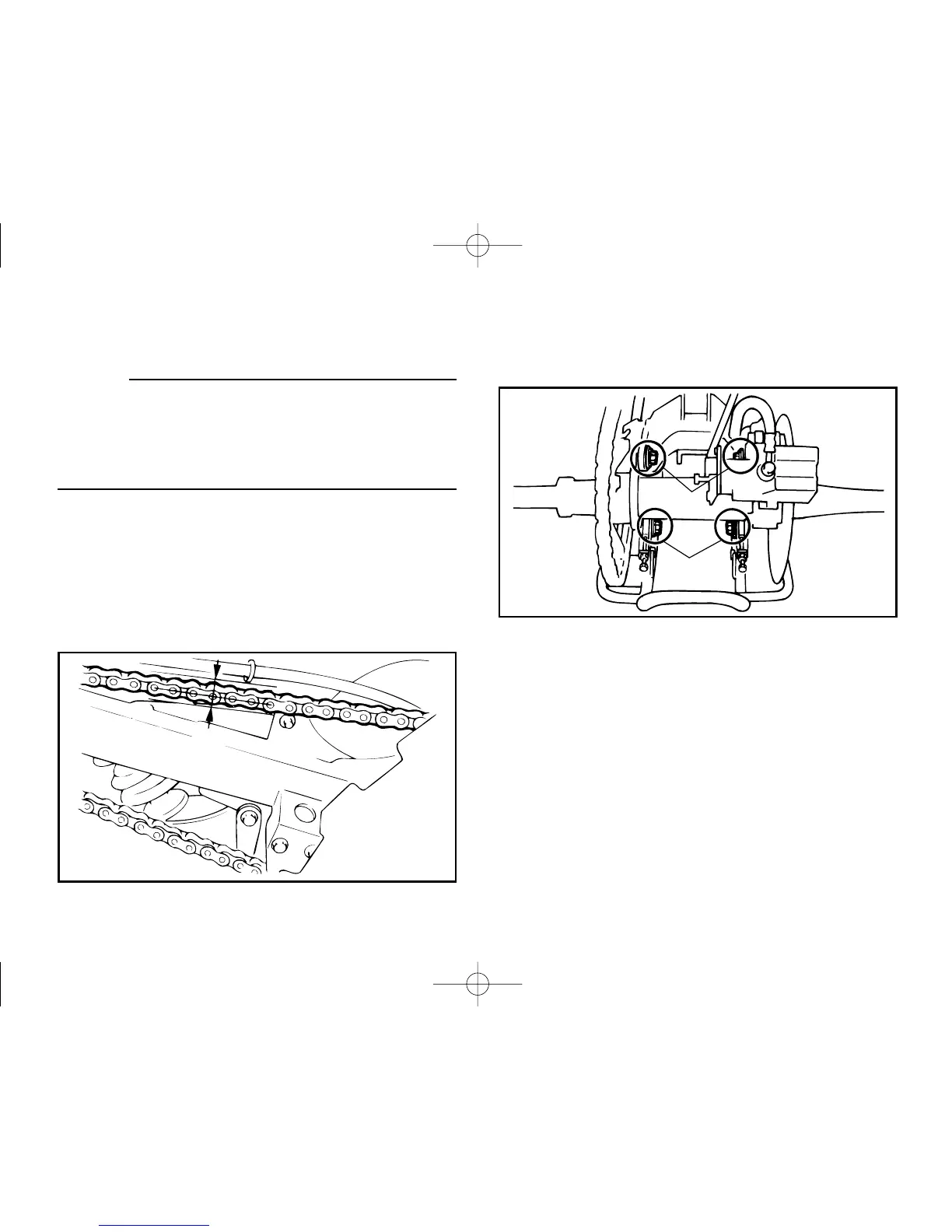

on it. Check the drive chain slack at the position
shown in the illustration Normal slack is approxi-
mately 15–20 mm (0.59–0.79 in). If the slack
exceeds 20 mm (0.79 in), adjust it to specification.
EBU00351
Drive chain slack adjustment
1. Loosen the rear wheel hub bolts.
1. Upper wheel hub bolt (×2)
2. Lower wheel hub bolt (×2)
2. Loosen the adjuster locknuts on each
side. To tighten the chain, turn the chain
adjuster clockwise. To loosen the chain,
turn the adjuster counterclockwise and
push the wheel forward. Turn each
adjuster exactly the same amount to
maintain correct axle alignment.
There are marks on each side of the
swingarm and on each chain adjuster.
Use them to check for proper alignment.
