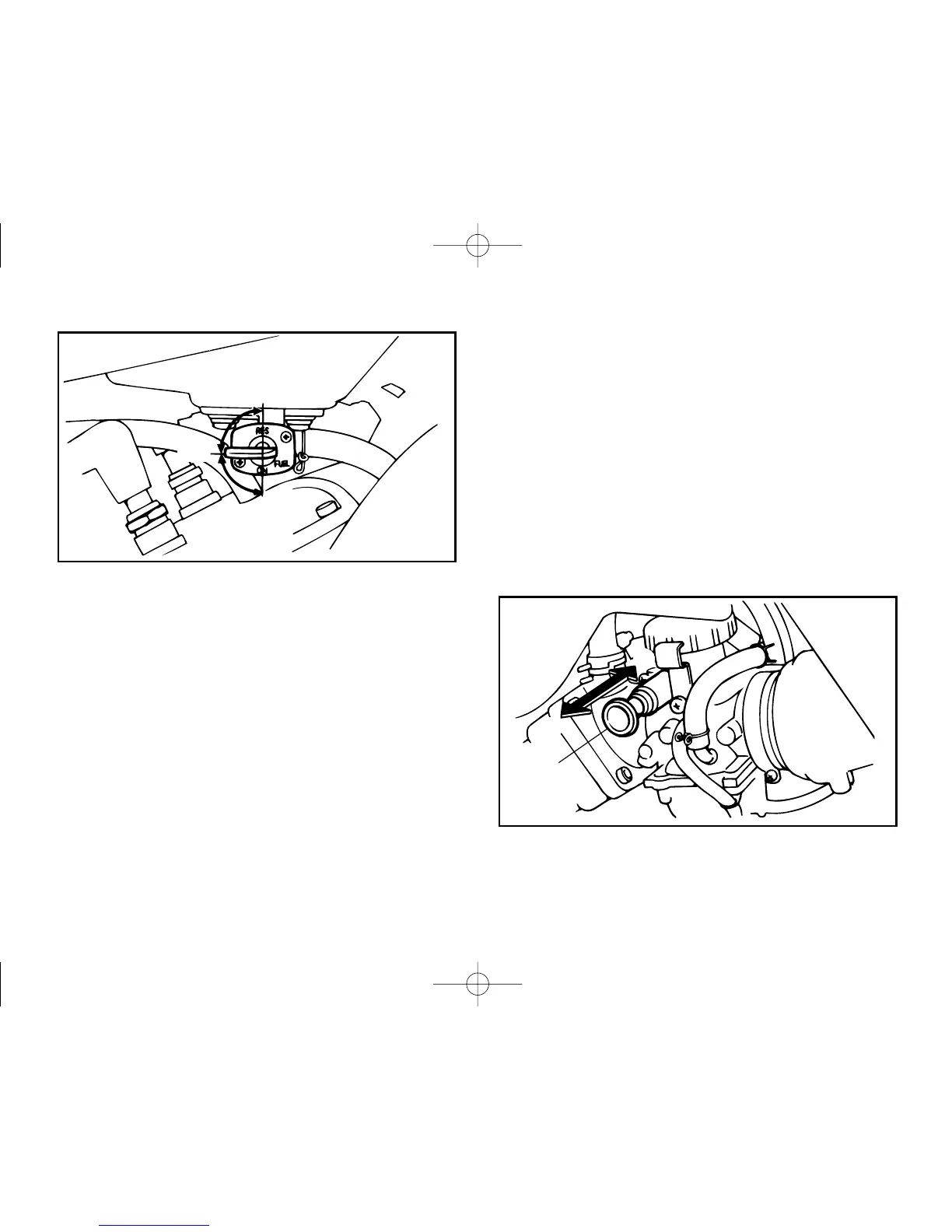

EBU00094
Starter (choke)
Starting a cold engine requires a richer air-fuel
mixture. A separate starter circuit supplies this
mixture.
Move in direction
a
to turn on the starter
(choke).
Move in direction
b
to turn of
f the starter
(choke).
Refer to
“
Starting a cold engine
”
for proper
operation. (See page 6-1.)
1.
Starter (choke)
4-11
q
a
b
RES
ON
OFF
5FK-9-17-01 3/3/04 10:13 PM Page 31
32
34
