3-1

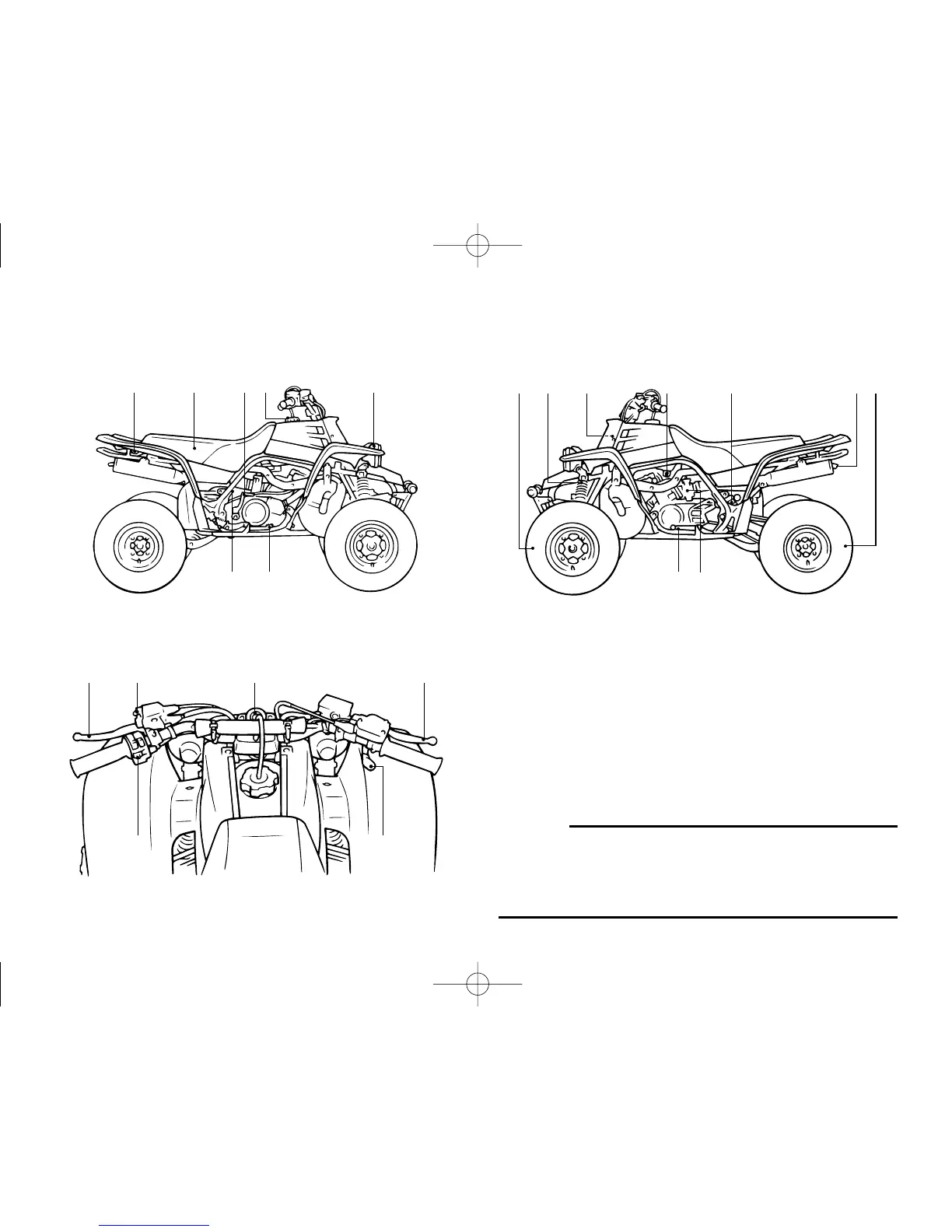

1. Tail/brake light 12. Rear shock absorber

2. Seat 13. Spark arrester

3. Kick starter 14. Rear wheel

4. Fuel tank cap 15. Starter (choke)

5. Headlight 16. Shift pedal

6. Brake pedal 17. Clutch lever

7. Rear brake light switch 18. Parking brake

8. Front wheel 19. Main switch

9. Front shock absorber 20. Brake lever

10. Radiator 21. Throttle lever

11. Fuel cock 22. Handlebar switches

NOTE:

The machine you have purchased may differ

slightly from those shown in the figures of this

manual.

EBU00032

DESCRIPTION AND MACHINE IDENTIFICATION

wer t

!1 !2

!3!4

!5!6

5FK-9-17-01 3/3/04 10:13 PM Page 18
