EBU00307

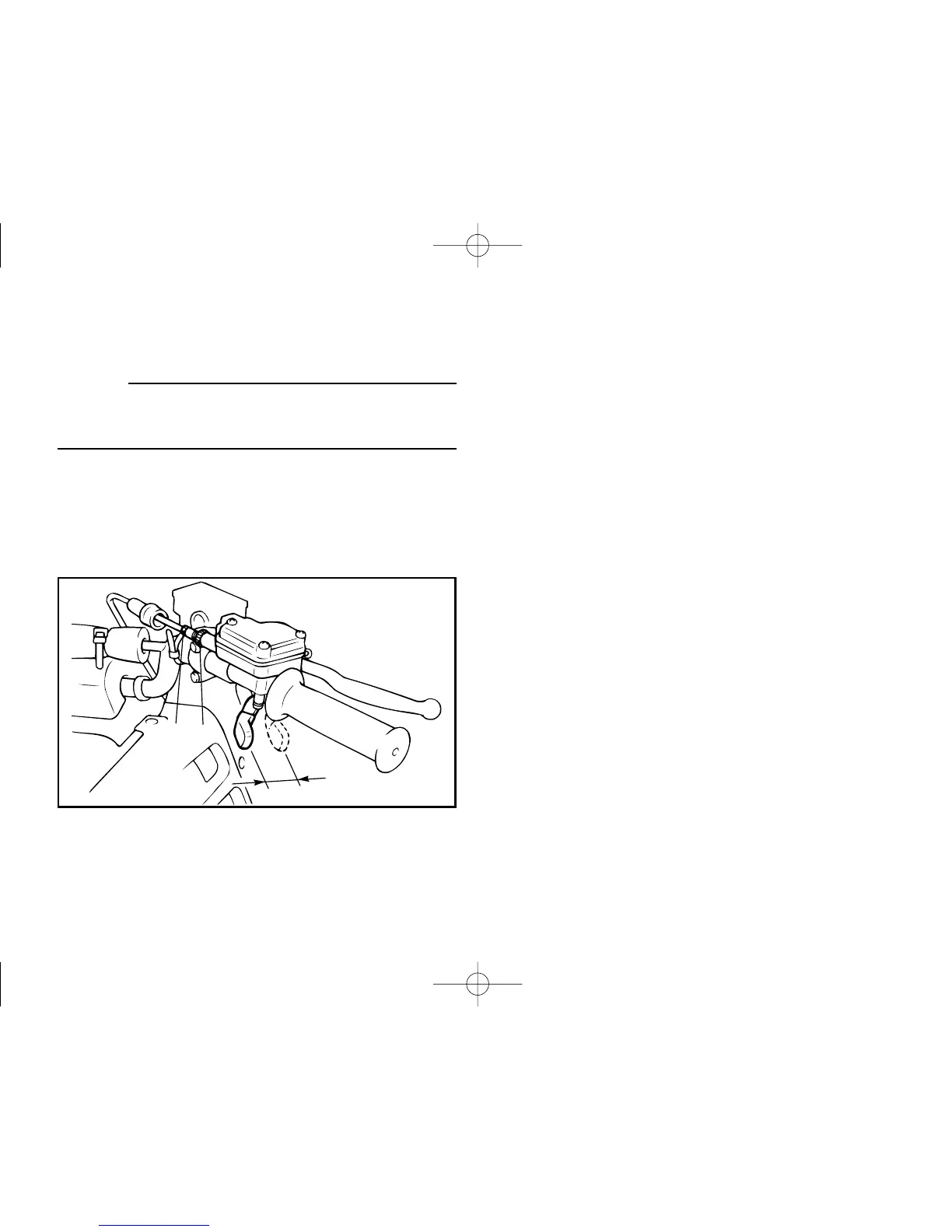

Throttle lever adjustment
NOTE:
Adjust the engine idling speed before adjust-
ing the throttle lever free play
.
1.
Loosen the locknut.
2
.
T
urn the adjusting bolt until the throttle
lever free play is 4
–
6 mm (0.16
–
0.24 in).
3.
T
ighten the locknut.
1.
Adjusting bolt
2.
Locknut
a. Free play
8-28
q
w
a
5FK-9-17-03 10/3/04 9:36 PM Page 29
