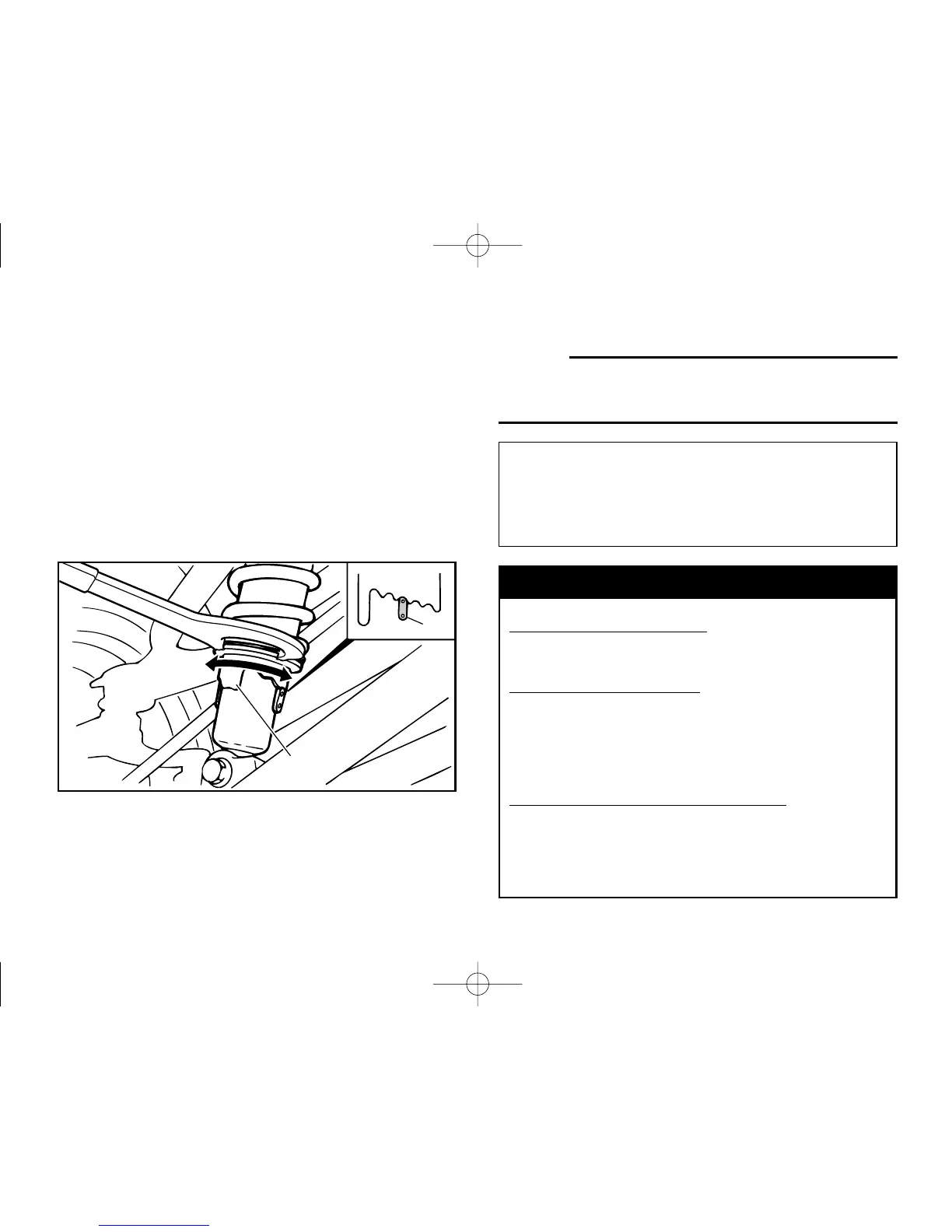

Front shock absorber adjustment
The spring preload can be adjusted to suit the
rider’s weight and riding conditions.
Adjust the spring preload as follows.
To increase the spring preload, turn the
adjusting ring in direction a.
To decrease the spring preload, turn the
adjusting ring in direction b.
NOTE:
A special wrench can be obtained at a
Yamaha dealer to make this adjustment.
4-13
POTENTIAL HAZARD
Improper shock absorber adjustment.
WHAT CAN HAPPEN
Uneven adjustment can cause poor han-
dling and loss of stability, which could
lead to an accident.
HOW TO AVOID THE HAZARD
Always adjust the shock absorbers on
the left and right side to the same set-
ting.
q
WARNING
Standard position: C
A - Minimum (soft)
E - Maximum (hard)
1. Spring preload adjusting ring
2. Position indicator
