24
Components
EMU46722

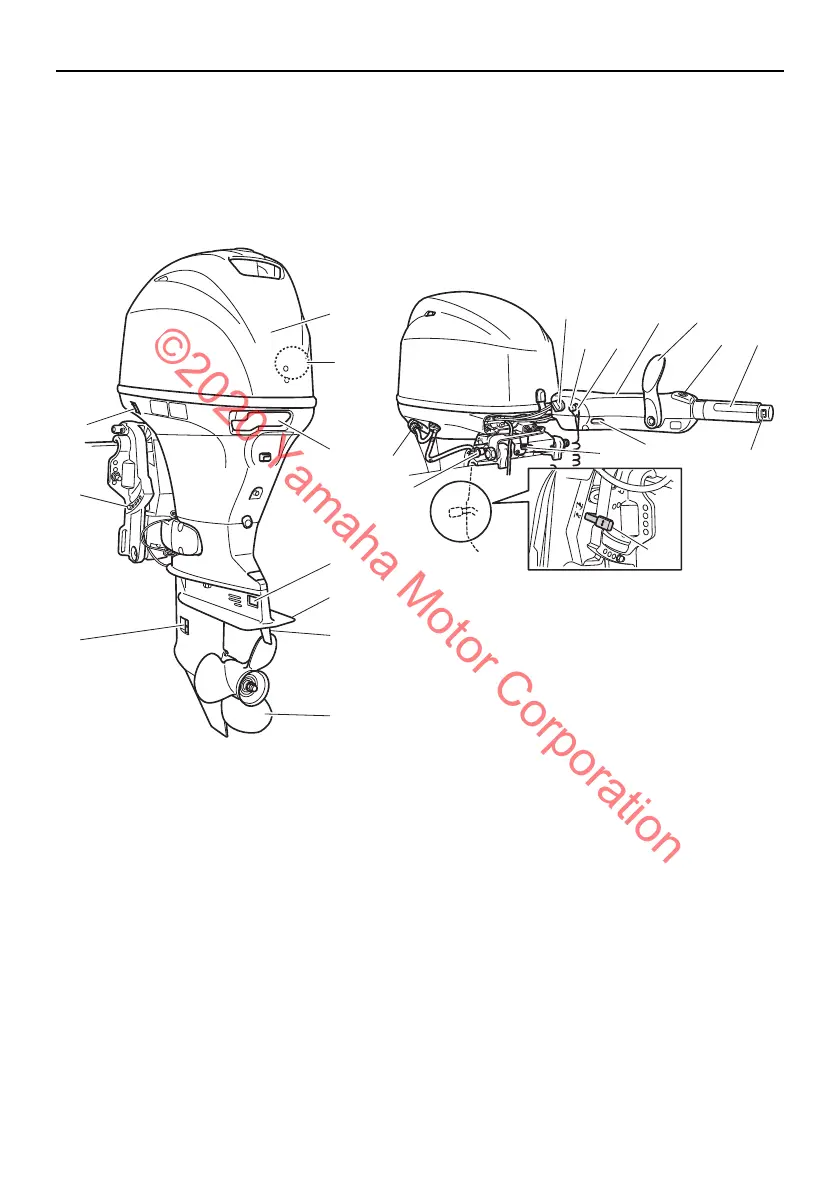

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
ZMU08213
1
3
4
6
7
10
9
8
5
2
14 13
1516
19
22
17
18
10
21
12 11
20
1. Top cowling
2. Water separator
3. Cowling lock lever
4. Anode
5. Anti-cavitation plate
6. Trim tab (anode)
7. Propeller*
8. Cooling water inlet
9. Clamp bracket
10. Power trim and tilt switch*
11. Throttle grip*
12. Variable trolling RPM switch*
13. Gear shift lever*
14. Tiller handle*
15. Clip*
16. Engine stop button/Engine shut-off switch*
17. Main switch*
18. Alert indicator*
19. Steering friction adjuster*
20. Tilt lock lever*
21. Tilt support knob
22. Flushing device
6BG-9-3F-E0.book 24 ページ 2018年11月1日 木曜日 午後5時1分
