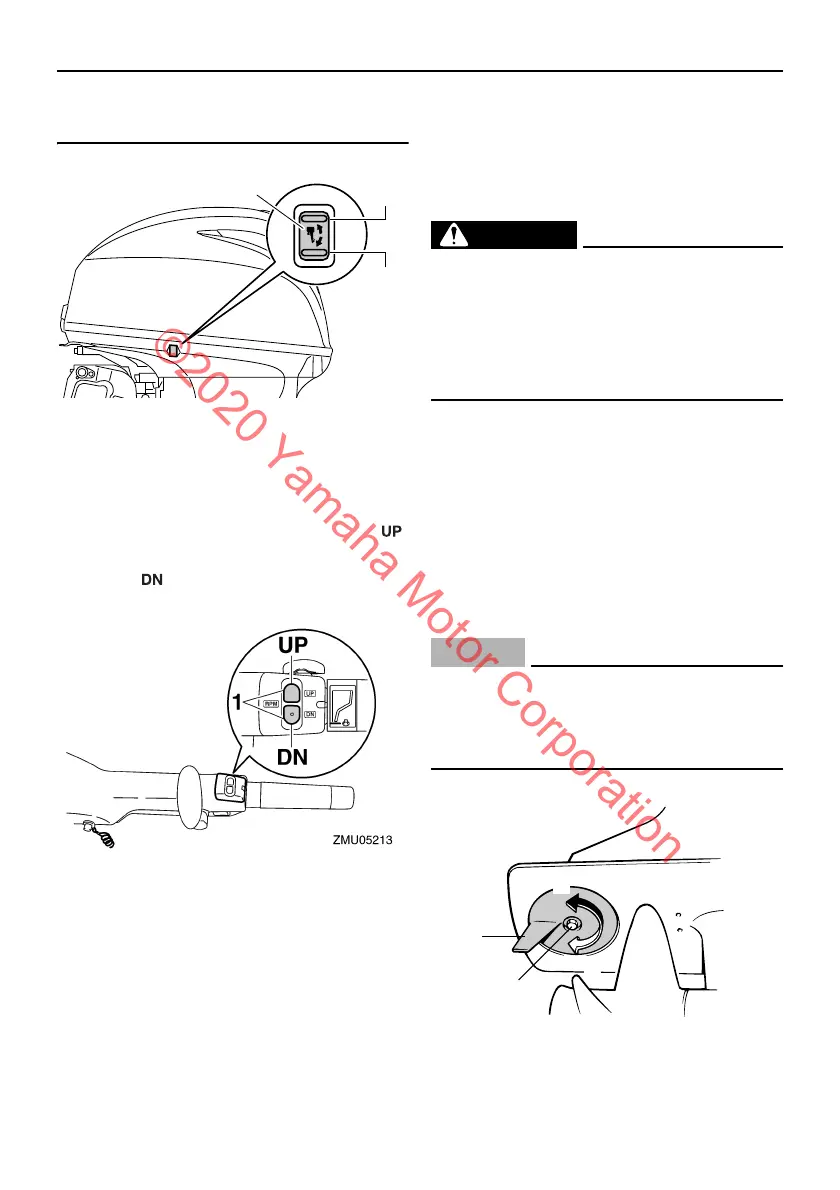

Variable trolling RPM switches

The trolling speed can be adjusted when the

outboard motor is trolling. Press the “ ”

switch to increase the trolling speed and

press the “ ” switch to decrease the trolling

speed.

TIP:

 The trolling speed changes approximately

50 r/min each time a switch is pressed.

 If the trolling speed has been adjusted, the

engine returns to the normal trolling speed

when the engine is stopped and restarted

or when the engine speed exceeds ap-

proximately 3000 r/min.

 For instructions on using the variable troll-

ing RPM switches, see page 63.

EMU26246

Trim tab with anode

WARNING

EWM00841

An improperly adjusted trim tab could

cause difficult steering. Always test run

after the trim tab has been installed or re-

placed to be sure steering is correct. Be

sure you have tightened the bolt after ad-

justing the trim tab.

The trim tab should be adjusted so that the

steering control can be turned to either the

right or left by applying the same amount of

force.

If the boat tends to veer to the left (port side),

turn the trim tab rear end to the port side “A”

in the figure. If the boat tends to veer to the

right (starboard side), turn the trim tab end to

the starboard side “B” in the figure.

NOTICE

ECM00841

The trim tab also serves as an anode to

protect the engine from electrochemical

corrosion. Never paint the trim tab as it

will become ineffective as an anode.

1. Power trim and tilt switch

1. Variable trolling RPM switch

ZMU06394

1. Trim tab

2. Bolt

ZMU03097
