Yamaha F30 User Manual

Maintenance
93
4. Align the propeller nut slot with the pro-
peller shaft hole. Insert a new cotter pin
in the hole and bend the cotter pin ends.
NOTICE: Do not reuse the cotter pin.
Otherwise, the propeller can come off
during operation.
[ECM01892]
TIP:
If the propeller nut slot does not align with the
propeller shaft hole after tightening the pro-
peller nut to the specified torque, tighten the
nut further to align the slot with the hole.
EMU47070
Changing gear oil
WARNING
EWM00801
 Be sure the outboard motor is securely
fastened to the transom or a stable
stand. You could be severely injured if
the outboard motor falls on you.
 Never get under the lower unit while it
is tilted, even when the tilt support lever
or knob is locked. Severe injury could
occur if the outboard motor accidental-
ly falls.
1. Tilt the outboard motor so that the gear
oil drain screw is at the lowest point pos-
sible.
2. Place a suitable container under the
gear case.
3. Remove the gear oil drain screw and
gasket. NOTICE: If there is an exces-
sive quantity of metal particles on the
magnetic gear oil drain screw, this
can indicate lower unit problem. Con-
sult your Yamaha dealer.
[ECM01901]

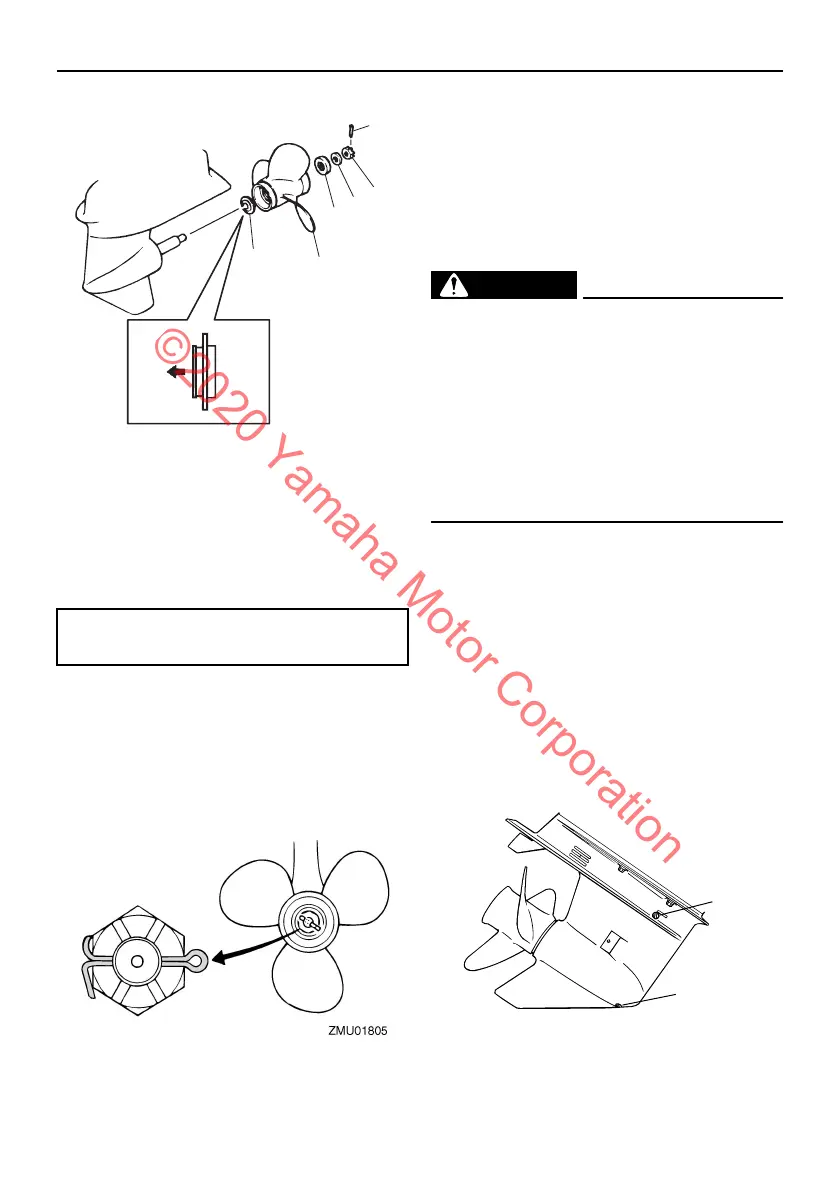

1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
Propeller nut tightening torque:
34 N·m (3.4 kgf·m, 25 lb·ft)
1
2
3
4
5
6
ZMU08159
1. Gear oil drain screw
2. Oil level plug
ZMU03273
2
1
6BG-9-3F-E0.book 93 ページ ２０１８年１１月１日 木曜日 午後５時１分
©2020 Yamaha Motor Corporation

Yamaha F30 Specifications

General

Engine Type	4-Stroke, SOHC
Prop Shaft Horsepower	30 hp
Full Throttle RPM Range	5000-6000 rpm
Starting System	Electric
Gear Ratio	2.08:1
Lubrication	Wet sump
Gear Shift	F-N-R
Displacement	747 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Ignition System	TCI
Shaft Length	15 in, 20 in
Steering	Remote
Bore x Stroke	65.0 mm x 75.0 mm (2.6 x 3.0 in.)
