Operation

TIP:

Depending on the type of boat, the outboard

motor trim angle may have little effect on the

trim of the boat when operating.

EMU27936

Tilting up and down

If the engine will be stopped for some time or

if the boat is moored in shallows, the out-

board motor should be tilted up to protect the

propeller and lower casing from damage by

collision with obstructions, and also to re-

duce salt corrosion.

WARNING

EWM00223

Make sure that no one is near the out-

board motor when tilting the outboard

motor up or down. Otherwise, body parts

could be crushed between the outboard

motor and the clamp bracket.

WARNING

EWM00251

Leaking fuel is a fire hazard. If there is a

fuel joint on the outboard motor, discon-

nect the fuel line or close the fuel cock if

the engine will be tilted for more than a

few minutes. Otherwise fuel may leak.

NOTICE

ECM00242

 Before tilting the outboard motor, stop

the engine by following the procedure

on page 64. Never tilt the outboard mo-

tor while the engine is running. Severe

damage from overheating can result.

 Do not tilt up the engine by pushing the

tiller handle (if equipped) because this

could break the handle.

EMU33153

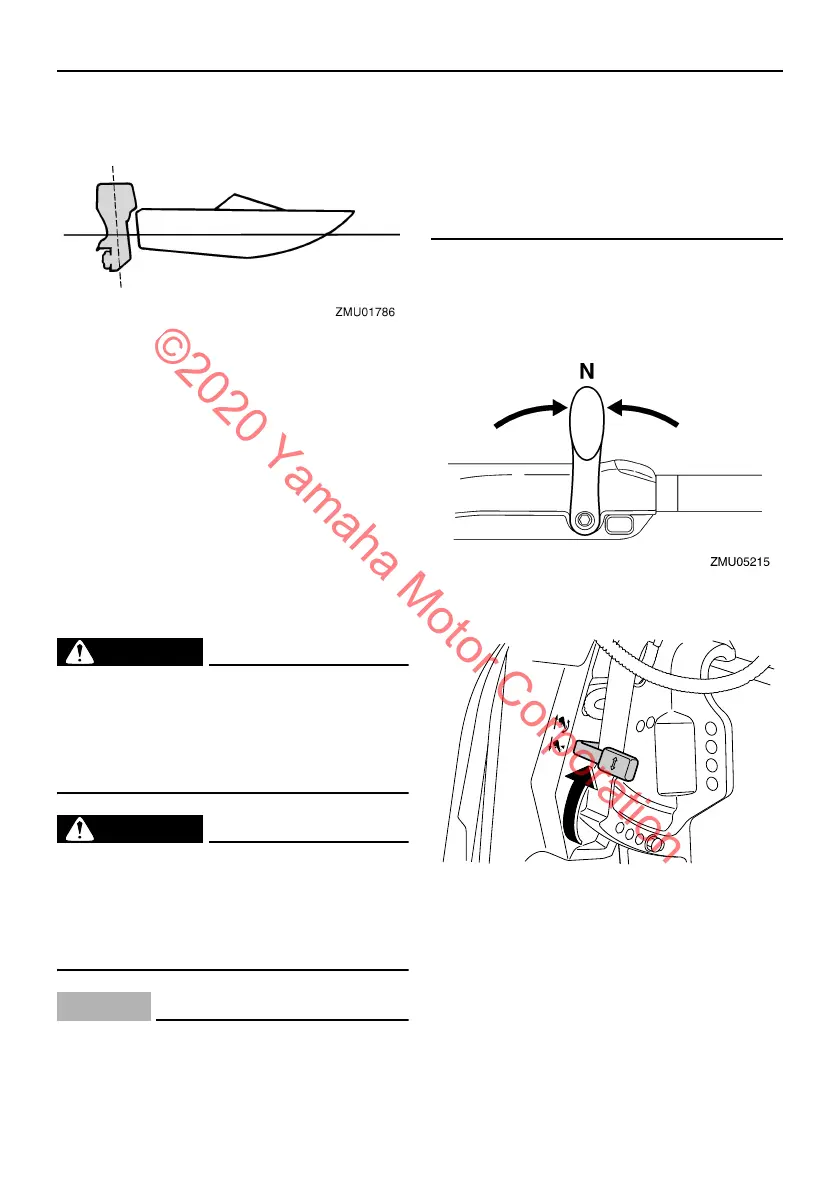

Procedure for tilting up (hydro tilt

models)

1. Place the gear shift lever in neutral.

2. Place the tilt lock lever in the release po-

sition.

3. Hold the rear of the top cowling with one

hand, tilt the engine up, and turn the tilt

support lever toward you or tilt support

knob into the clamp bracket, and then

place the tilt lock lever back into the lock

position to support the outboard motor.

NOTICE: Do not use the tilt support

lever or knob when trailering the

boat. The outboard motor could

ZMU06406

6BG-9-3F-E0.book 69 ページ２０１８年１１月１日　木曜日　午後５時１分

Other manuals for Yamaha F30

Installation Manual224 pages

Need help?

Do you have a question about the Yamaha F30 and is the answer not in the manual?

Yamaha F30 Specifications

General

Engine Type	4-Stroke, SOHC
Prop Shaft Horsepower	30 hp
Full Throttle RPM Range	5000-6000 rpm
Starting System	Electric
Gear Ratio	2.08:1
Lubrication	Wet sump
Gear Shift	F-N-R
Displacement	747 cc
Fuel Induction System	EFI (Electronic Fuel Injection)
Ignition System	TCI
Shaft Length	15 in, 20 in
Steering	Remote
Bore x Stroke	65.0 mm x 75.0 mm (2.6 x 3.0 in.)
