Components

cap, press and hold the pressure relief tab

and turn the cap counterclockwise.

Air vent screw

This screw is on the fuel tank cap. When

turning the air vent screw counterclockwise,

it is loosened and the pressure in the fuel

tank is released to a certain pressure. Air is

allowed to enter the fuel tank while operating

the engine.

EMU46751

Yamaha Security System (Y-COP)

NOTICE

ECM02461

The Yamaha Security System is sold in

conformity with the relevant laws and

regulations regarding radio wave trans-

mission. Therefore, if this product is used

outside the country where it was sold, it

may violate the laws or regulations re-

garding radio wave transmission in the

country it is used in. For details, consult

your Yamaha dealer.

The Yamaha Security System, which pro-

tects against theft, consists of the receiver

and remote control transmitters. The

Yamaha Security System is available from

your Yamaha dealer. For details, consult

your Yamaha dealer.

The engine cannot be started if the security

system is in the lock mode. The engine can

be started only in the unlock mode. For more

information, see the installation and owner’s

manual included with the security system.

TIP:

The security system cannot be used with

quad engine applications or Helm Master®.

EMU26182

Remote control box

The remote control lever actuates both the

shifter and the throttle. The electrical switch-

es are mounted on the remote control box.

EMU26191

Remote control lever

Moving the lever forward from the neutral po-

sition engages forward gear. Pulling the le-

ver back from neutral engages reverse. The

engine will continue to run at idle until the le-

ver is moved about 35 (a detent can be felt).

Moving the lever farther opens the throttle,

and the engine will begin to accelerate.

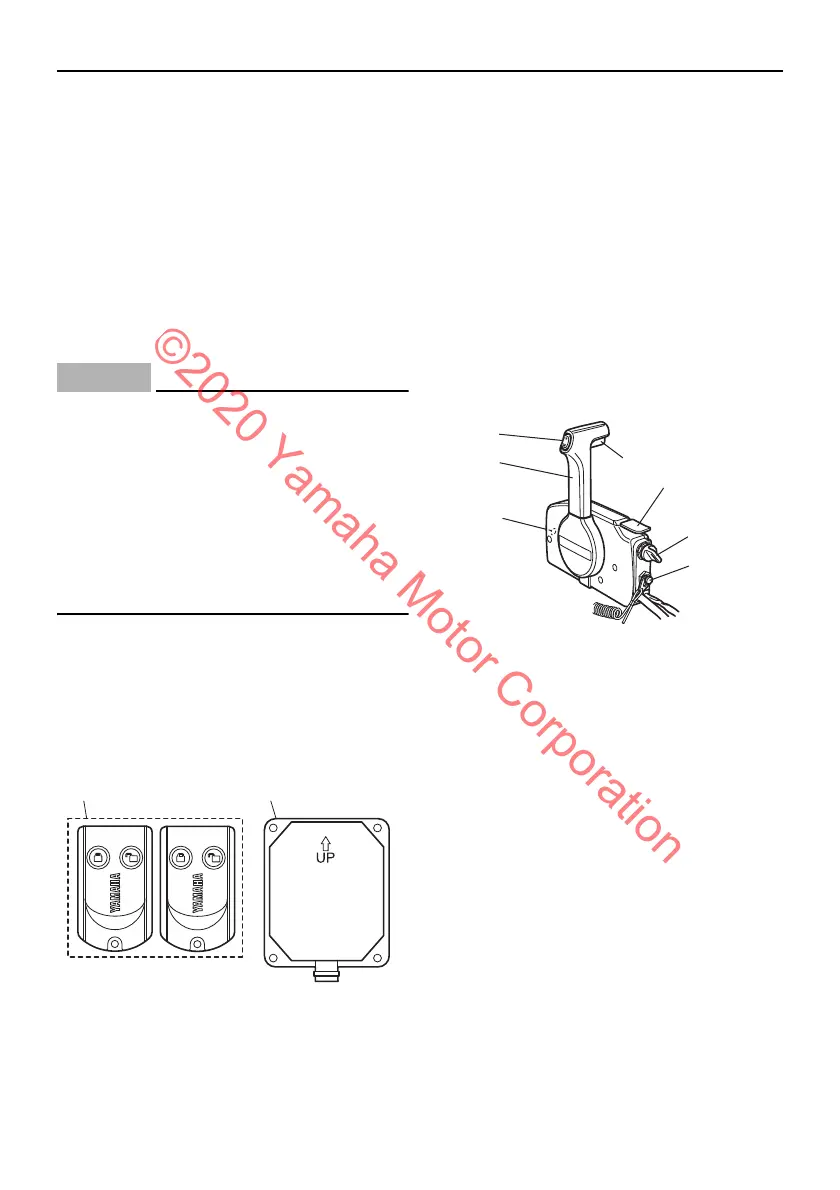

1. Remote control transmitter

2. Receiver

ZMU08527

1. Power trim and tilt switch

2. Remote control lever

3. Neutral interlock trigger

4. Neutral throttle lever

5. Main switch

6. Engine shut-off switch

7. Throttle friction adjuster

ZMU01723
