Components
34
EMU26313

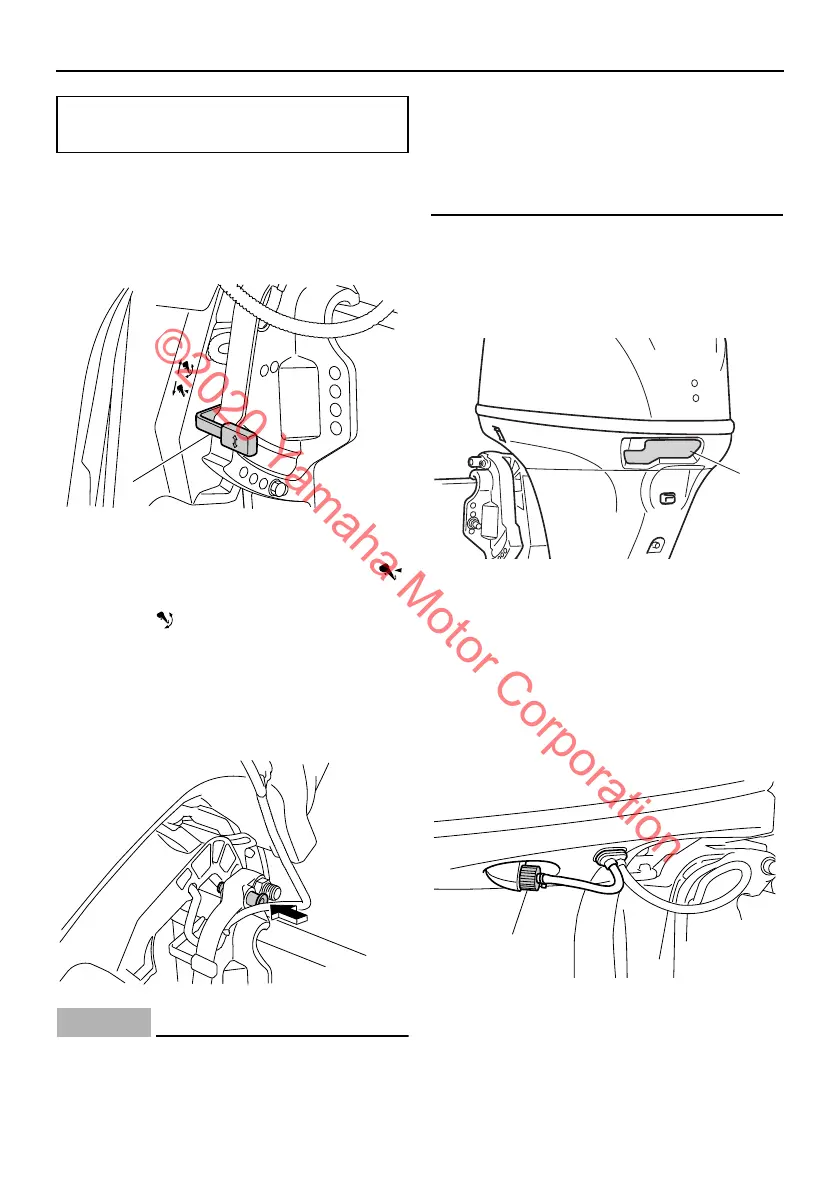

Tilt lock mechanism
The tilt lock mechanism is used to prevent
the outboard motor from lifting out of the wa-
ter when in reverse gear.
To lock it, set the tilt lock lever in the “ ”
(lock) position. To release, push the tilt lock
lever in the “ ” (release) position.
EMU26323
Tilt support knob
To keep the outboard motor in the tilted up
position, push the tilt support knob under the
swivel bracket.
ECM00661
Do not use the tilt support lever or knob
when trailering the boat. The outboard
motor could shake loose from the tilt sup-
port and fall. If the motor cannot be
trailered in the normal running position,
use an additional support device to se-
cure it in the tilt position.
EMU39264
Cowling lock lever
The cowling lock lever(s) is used to secure
the top cowling.
EMU26464
Flushing device
This device is used to clean the cooling wa-
ter passages of the motor using a garden
hose and tap water.
For details on usage, see page 79.
Bolt tightening torque:
18 N·m (1.8 kgf·m, 13 lb·ft)
1. Tilt lock lever
1. Cowling lock lever(s)
1. Flushing device
1
