INSTRUMENT AND CONTROL FUNCTIONS
Indicator lights<IXE>
Turn signal indicator light<IXE>
High beam indicator light<IXE>
Speedometer unit<IXE>
Fuel gauge<IXE>
EAU10980
Indicator lights
1
2
0
10
MPH
20
30
40
50
60
70
80
0
20
40
60
80
100
120
ZAUM00**

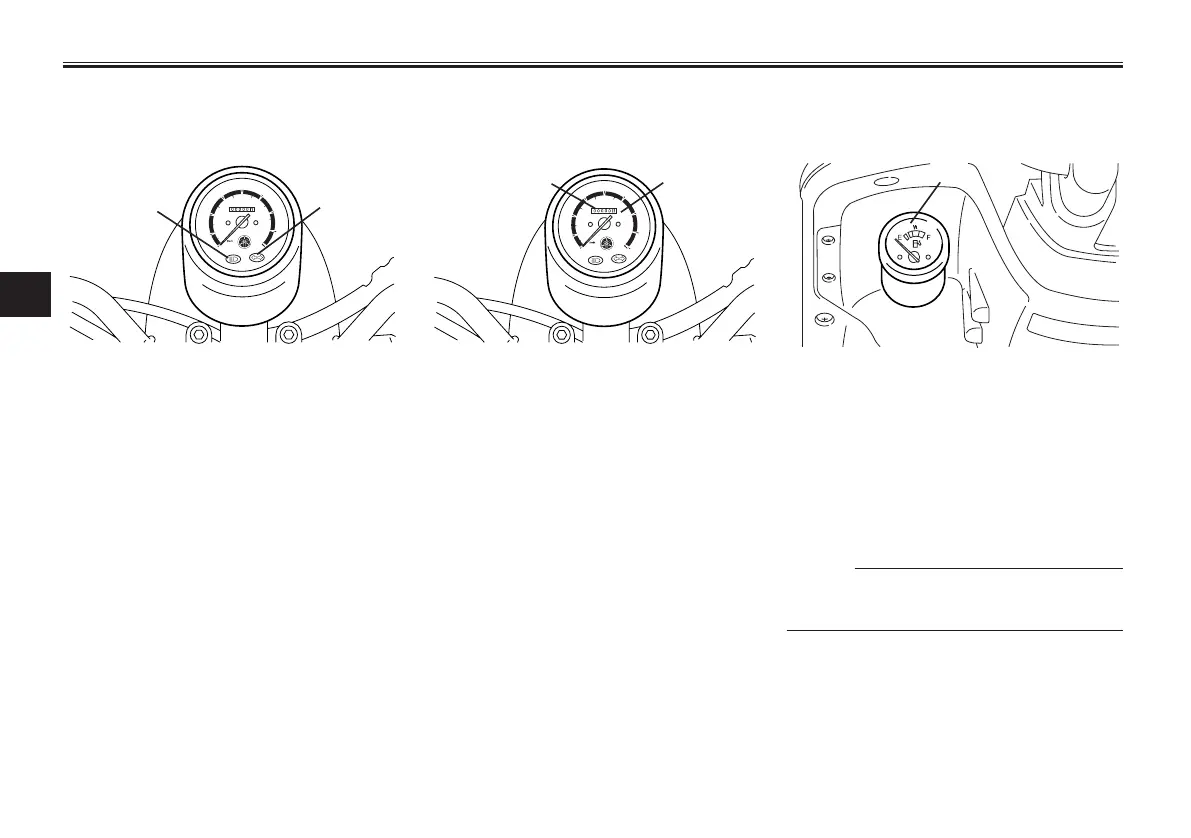

1. High beam indicator light“&”
2. Turn signal indicator lights“4”and 6”
EAU11020
Turn signal indicator light “
44
44
4
66
66
6”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU11080
High beam indicator light “
&&
&&
&”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU12150
Fuel gauge
1
ZAUM00**
1. Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches the
red line, refuel as soon as possible.
NOTE:
Do not allow the fuel tank to empty it-
self completely.
EAUT1820
Speedometer unit
1
0
10
MPH
20
30
40
50
60
70
80
0
20
40
60
80
100
120
2
ZAUM00**
1. Speedometer
2. Odometer
The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
