INSTRUMENT AND CONTROL FUNCTIONS
Brake lever, front<IXE>
Brake lever, rear<IXE>
Fuel tank cap<IXE>
EAU12900

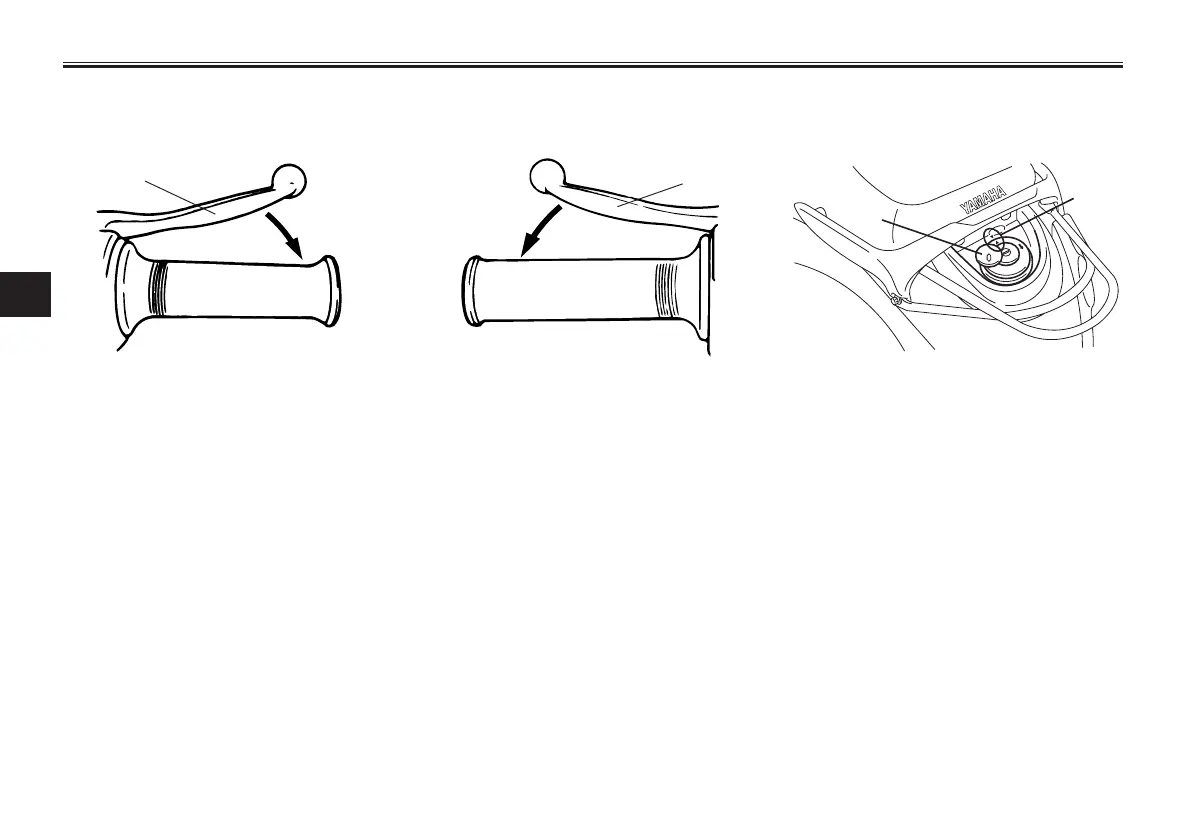

Front brake lever
1
ZAUM00**
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake lever
1
ZAUM00**
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
EAU32483
Fuel tank cap
1
2
ZAUM00**
1. Fuel tank cap lock cover
2. Match marks
To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released and
the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the tank
opening with the key inserted in the
lock and with the marks on the cap
and tank aligned.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
5YR-F8199-14_ch3.pmd 2007/05/21, 17:404
