PERIODIC MAINTENANCE AND MINOR REPAIR
EAUT1301
Air filter and V-belt case air fil-
ter elements
The air filter and V-belt case air filter el-
ements should be cleaned at the inter-
vals specified in the periodic mainte-
nance and lubrication chart. Clean both
filter elements more frequently if you are
riding in unusually wet or dusty areas.
Cleaning the air filter element
1. Place the scooter on the
centerstand.
2. Remove the air filter case cover by
removing the screw.
1
ZAUM00**
1. Air filter case cover
3. Pull the air filter element out, and
Air filter and V-belt case air filter elements<IXE>
1
ZAUM00**

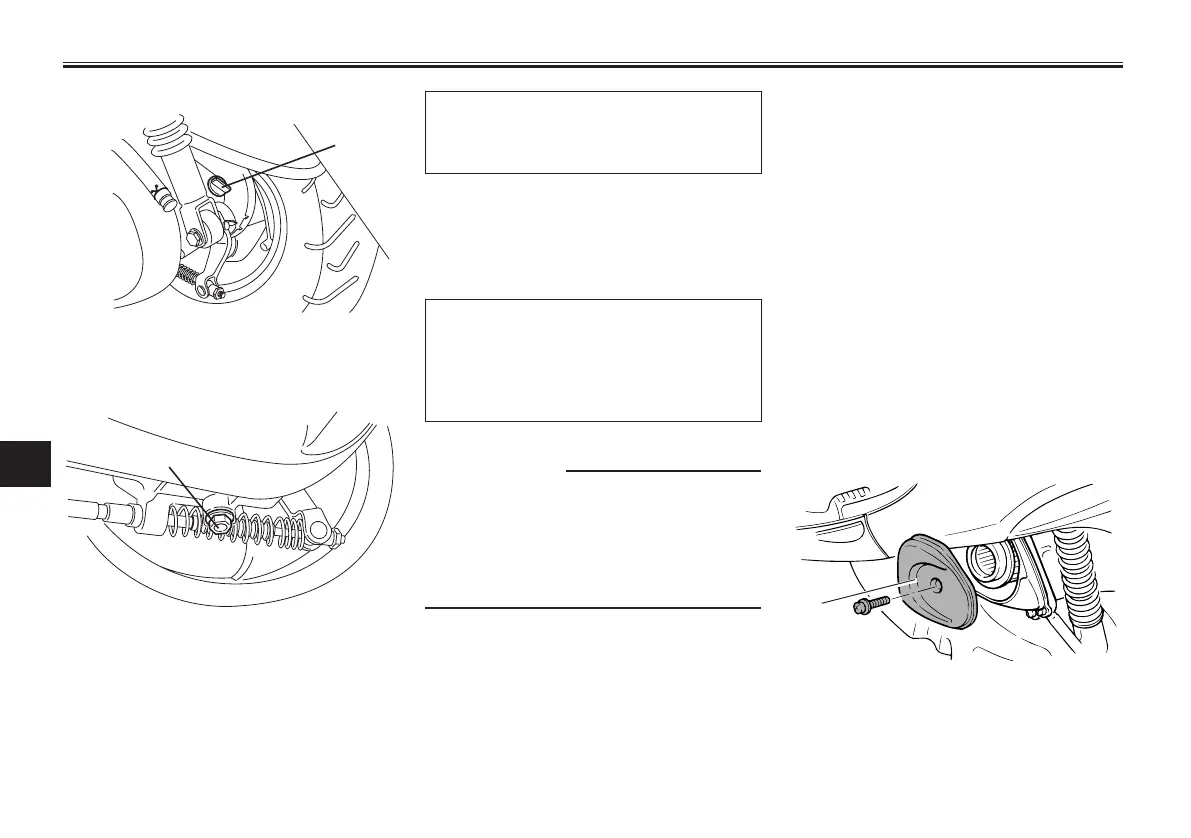

1. Final transmission oil filler cap
1
ZAUM00**
1. Final transmission oil drain bolt
5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
Tightening torque:
Final transmission oil drain bolt:
23 Nm (2.3 m•kgf, 16.6 ft•lbf)
6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten the
oil filler cap.
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.13 L (0.14 US qt) (0.11 Imp.qt)
EWA11310
w
88
88
8 Make sure that no foreign mate-
rial enters the final transmission
case.
88
88
8 Make sure that no oil gets on the
tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
