INSTRUMENT AND CONTROL FUNCTIONS
Handlebar switches<IXE>
Dimmer switch<IXE>
Turn signal switch<IXE>
Horn switch<IXE>
Engine stop switch<IXE>
Start switch<IXE>
EAU12460
Turn signal switch “
44
44
4/
66
66
6”
To signal a right-hand turn, push this
switch to “4”. To signal a left-hand turn,
push this switch to “6”. When released,
the switch returns to the center position.
To cancel the turn signal lights, push the
switch in after it has returned to the cen-
ter position.
EAU12500
Horn switch “
**
**
*”
Press this switch to sound the horn.
EAU12660
Engine stop switch “
##
##
#/
$$
$$
$”
Set this switch to “#” before starting
the engine. Set this switch to “$” to stop
the engine in case of an emergency, such
as when the motorcycle overturns or
when the throttle cable is stuck.
EAU12700
Start switch “START”
Push this switch while applying the front
or rear brake to crank the engine with
the starter.
ECA10050
cC
See page 5-1 for starting instructions
prior to starting the engine.
Right
1
2
ZAUM00**
1. Engine stop switch “#/$“
2. Start switch “START”
EAU12400
Dimmer switch “
&&
&&
&/
%%
%%
%”
Set this switch to “&” for the high beam
and to “%” for the low beam.
EAU12347

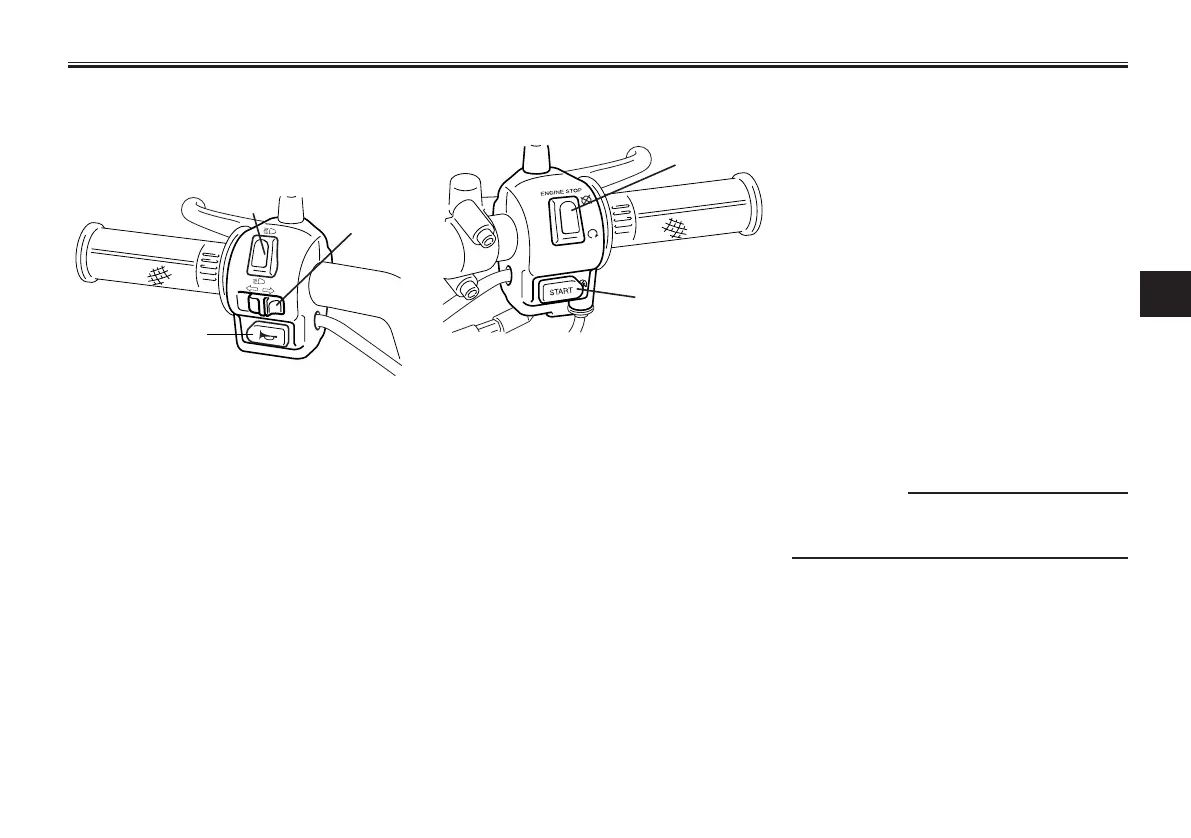

Handlebar switches
Left
1
2
3
ZAUM00**
1. Dimmer switch “%/&“
2. Turn signal switch “4/6”
3. Horn switch “*”
