PERIODIC MAINTENANCE AND MINOR REPAIR
EAU18771
Removing and installing pan-
els

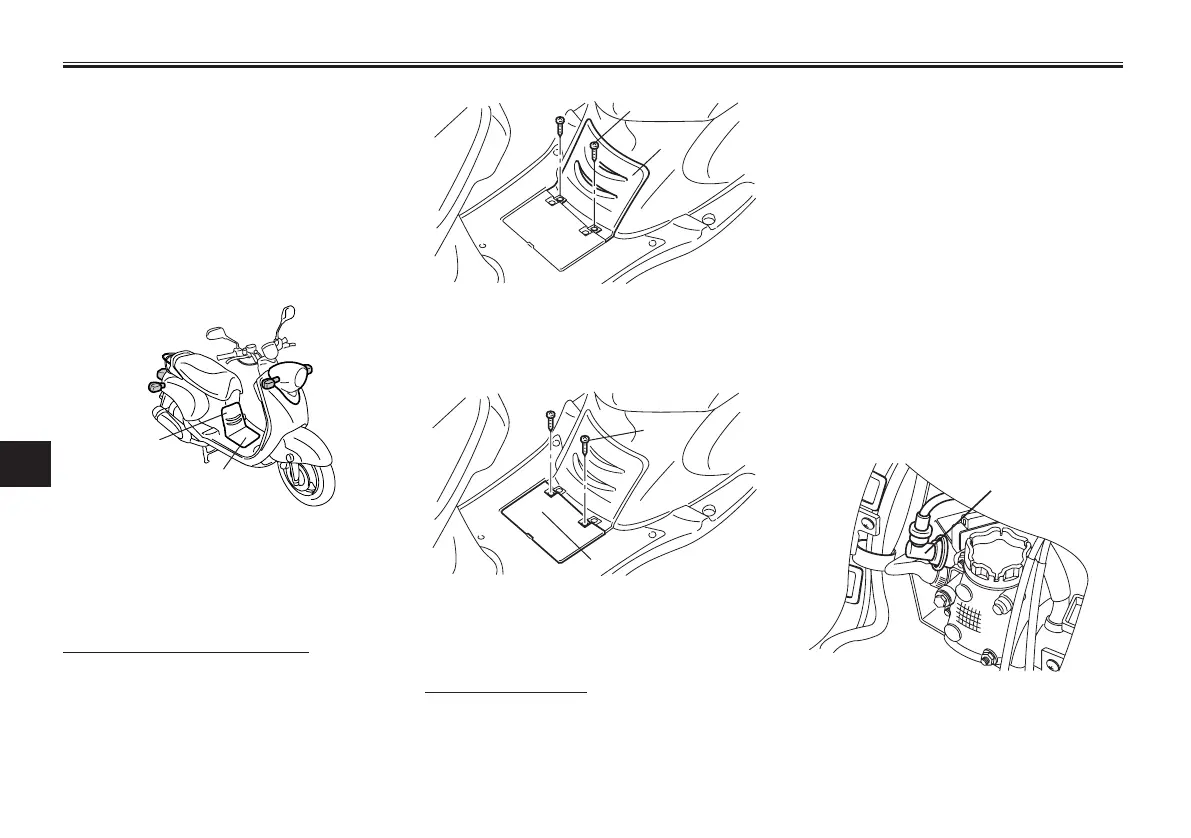

The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
1
2
ZAUM00**
1. Panel A
2. Panel B
Panels, removing and installing<IXE>
Spark plug, checking<IXE>
EAUT1660
Panels A and B
To remove one of the panels
Remove the screws, and then pull the
panel off as shown.
1
2
ZAUM00**
1. Panel A
2. Screw
1
2
ZAUM00**
1. Panel B
2. Screw
To install the panel
Place the panel in the original position,
and then install the screws.
EAUT1831
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked in
accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 6-8.)
2. Remove the spark plug cap.
1
ZAUM00**
1. Spark plug cap
3. Remove the spark plug as shown,
with the spark plug wrench included
5YR-F8199-14_ch6.pmd 2007/05/24, 19:588
