PERIODIC MAINTENANCE AND MINOR REPAIR
EAUT1240

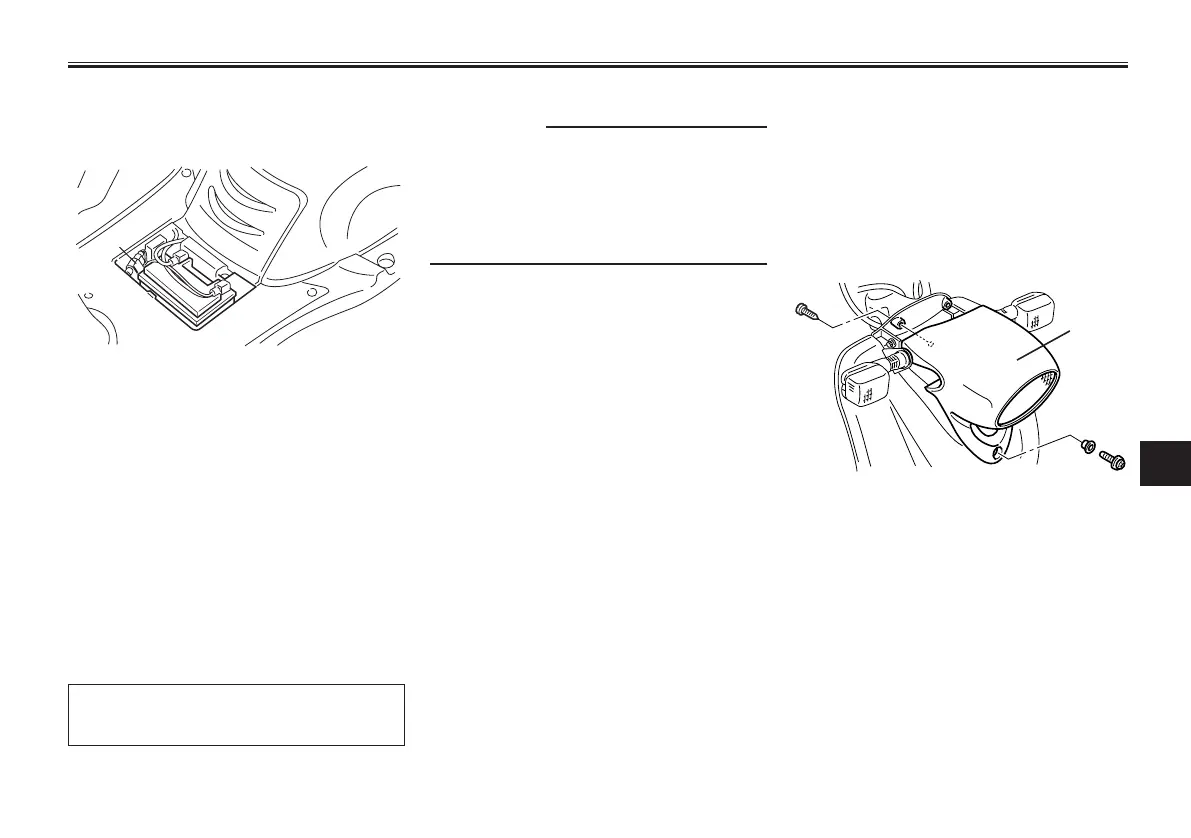

Replacing the fuse
1
ZAUM00**
1. Fuse
The fuse holder is located beside the
battery. Remove panel B to access the
fuse. (See page 6-8.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
Specified fuse:
10.0 A
Fuse, replacing<IXE>
Headlight bulb, replacing<IXE>
ECA10640
cC
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows again,
have a Yamaha dealer check the
electrical system.
EAU23780
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb burns
out, replace it as follows.
1. Remove the headlight unit by re-
moving the screws.
1
ZAUM00**
1. Headlight unit
2. Disconnect the headlight coupler,
and then remove the bulb cover.
5YR-F8199-14_ch6.pmd 2007/05/24, 19:5825
