3.2.10 Manual Servo-tuning of Torque Reference Offset (Fn00B)
3-26
3.2.10 Manual Servo-tuning of Torque Reference Offset (Fn00B)
This function executes the manual adjustment or the torque reference offset value.
Use this function in the following cases.
• To deliberately set the offset amount to some value.
• To check the offset amount calculated in the automatic adjustment mode.
(1) Preparation
The following conditions must be met to adjust the offsets of torque reference manu-
ally.
• The write prohibited setting (Fn010) must not be set to write-protect parameters.
• The main circuit power supply must be ON.
• All alarms must be cleared.
• The hardwire baseblock (HWBB) must be disabled.
• When an absolute encoder is used, the SEN signal is ON (high level).

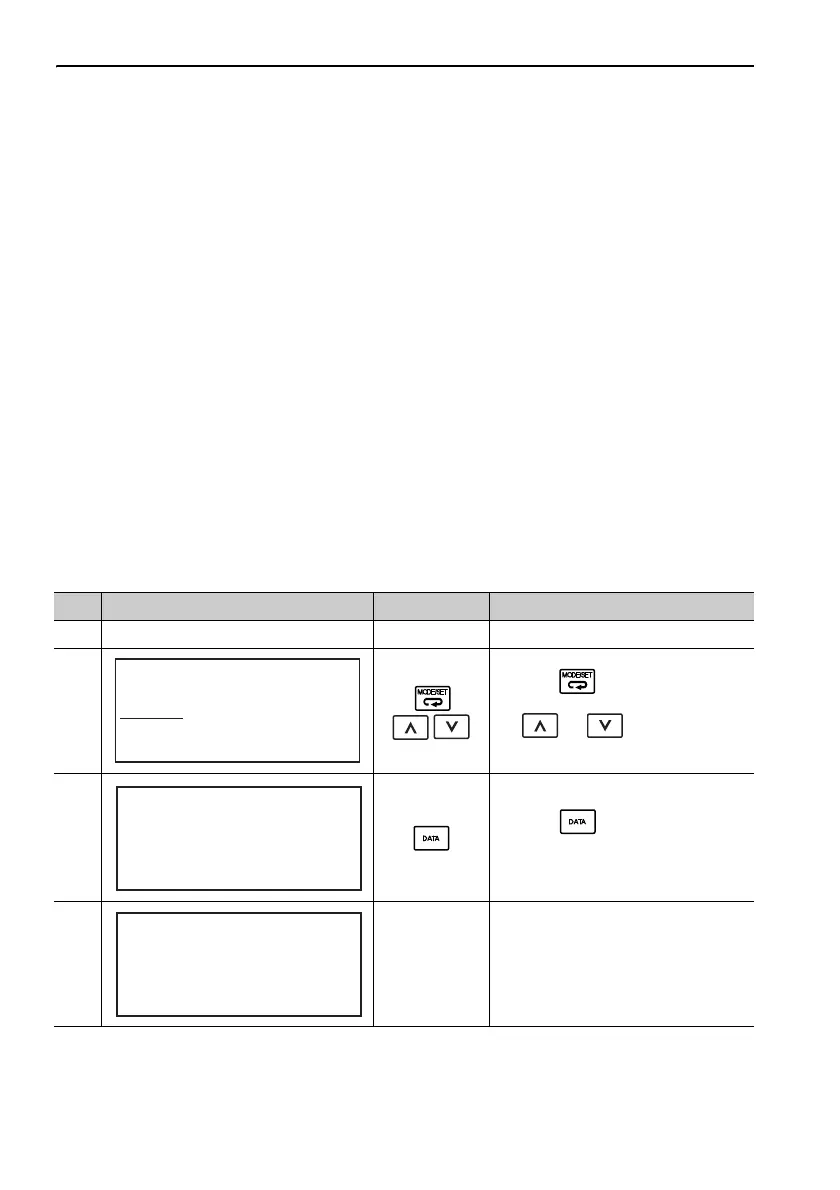

(2) Operating Procedure
Use the following procedure.
Step Display after Operation Keys Operation
1 Set the analog voltage input to 0 V.
2
Press the
Key to view the main
menu of the utility function mode. Use
the
or Key to move
through the list and select Fn00B.
3
Press the Key. The display
changes to the Fn00B execution dis-
play.
4 Turn ON the servo ON (/S-ON) signal.
BB
− FUNCTION−
Fn00A:Vel Adj
Fn00B:Trq Adj
Fn00C:MonZero Adj
Fn00D:MonGain Adj
BB
T orqu e Adjust
ZADJT=-00004
T ref = 00000
RUN
Torque Adjust
ZADJT=-00004
Tref = 00000
