3.2 Operations
3-51
9
head1
3
Utility Function Mode

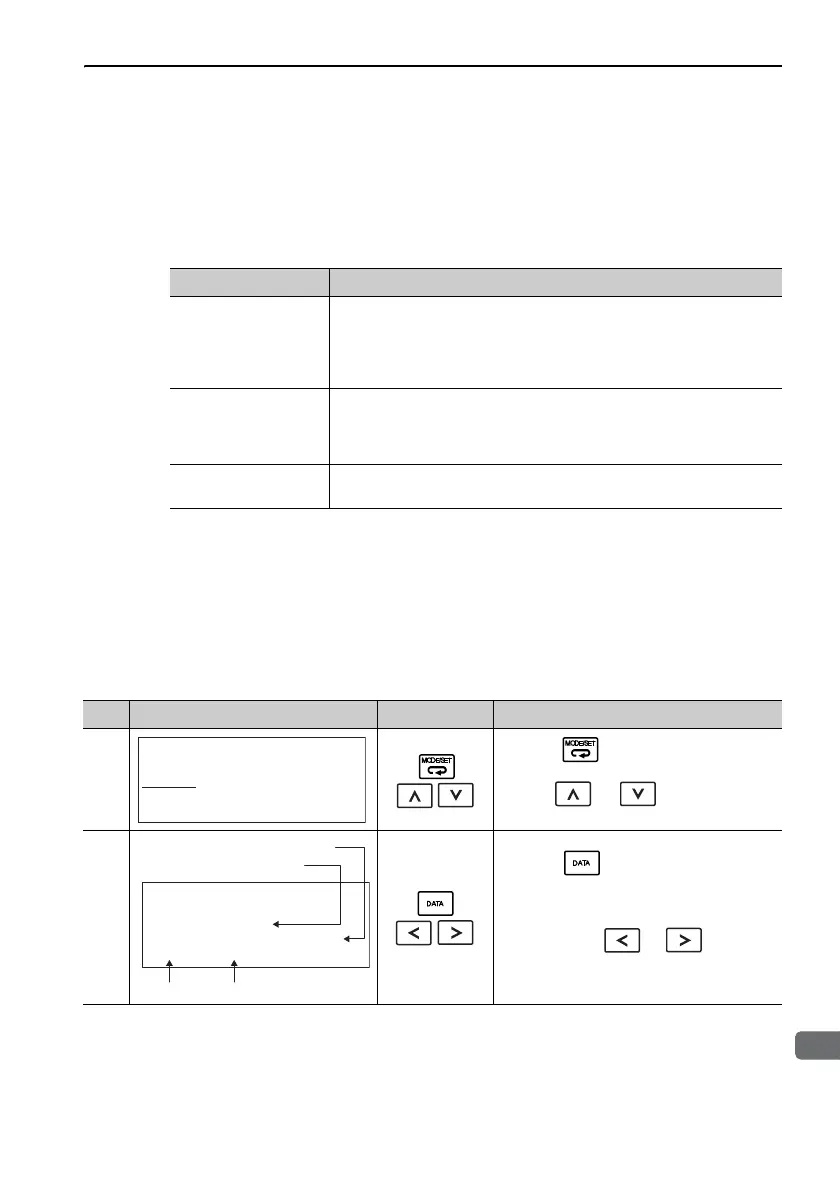

3.2.22 Display of Servomotor ID in Feedback Option Module (Fn01F)
This function displays ID information for servomotor and encoder in Feedback
Option Module connected to the SERVOPACK. If the option module is not con-
nected, “Not connect” will be displayed after the module name.
The following items can be displayed.
(1) Preparation
There are no tasks that must be performed before the execution.
(2) Operating Procedure
Use the following procedure.
ID Items to be Displayed
Servomotor ID
• Servomotor model
• Servomotor order number
• Servomotor input voltage (V)
• Servomotor capacity (W)
• Servomotor rated current (Arms)
Encoder ID
• Encoder model
• Encoder serial number
• Encoder type/resolution (Two types of resolution display avail-
able: Number of bits and number of pulses/rev.)
Parameter File ID
• Parameter file source ID (14 characters)
• Parameter file version (4 digits hexadecimal display)
Step Display after Operation Keys Operation
1
Press the Key to view the main
menu for the utility function mode.
Use the
or Key to move
through the list and select Fn01F.
2
Press the
Key.
The display changes to the Fn01F execu-
tion display.
The servomotor ID information is dis-
played. Use the or Key to
scroll left and right and to view other infor-
mation.
BB − FUNCTION−
Fn01E:SvMotOp ID
Fn01F:FBOpMot ID
Fn020:S− Orig Set
Fn030:Soft Reset
BB − FBOpMotID−
Motor
SGM− 04A312
R10419− 511− DK5000
200V, 400W
Serial number
Servomotor model
Input voltage
Capacity
To Next Page
