REAR THREE POINT HITCH
REAR THREE POINT HITCH ATTACHING

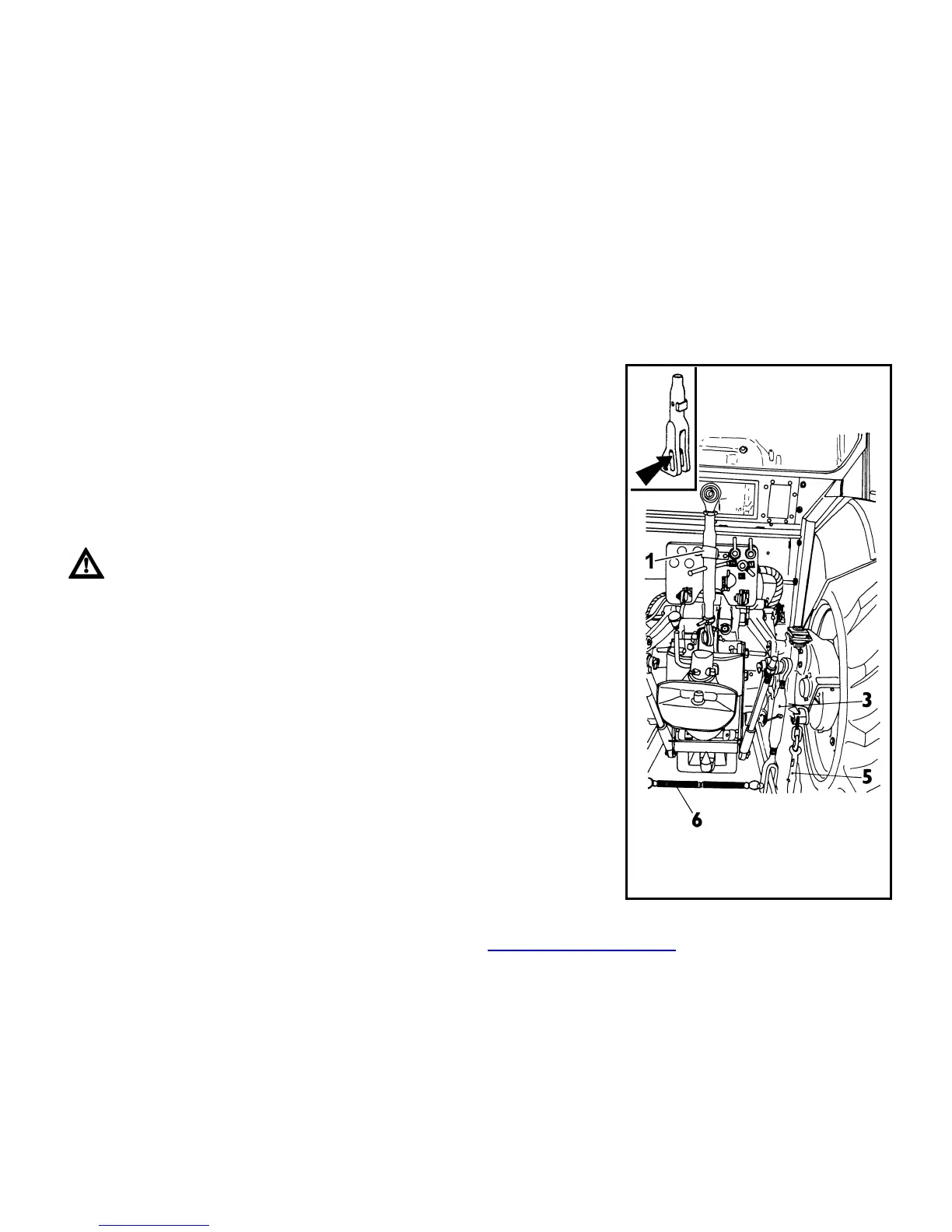

The left lifting link is intended for course vertical adjustment of lower link position and
is adjustable after disconnecting of its upper end from hydraulic lifting arm pin. The
right lift link (3) serves for fine adjustment of lower link position by means of gearbox
controlled from driver´s cab. Lower link ends can be mutually vertically adjusted
within range 200 mm. Floating (free) position of implement and swinging round the
axis is enabled after sliding of left link pin into the groove. In this case the lower draft
link ends can be freely vertically moved by 100 mm one each other. Lower link
stabilizers (5) serve for limiting of side to side swing of lower links within the whole
three point hitch lift. The side swing can be max. 125 mm to each side measured on
the lower link balls after adjusting to maximal stabilizer length.
Lower draft links have to be connected by springs (6) and the top link (1)
hooked in the spring holder when transportation without implement. Lower
link stabilizers (5) need to be shortened at transportation to avoid the
undesired side swing of implement.
A 111
