55 Installation
EN
D
B
C
A

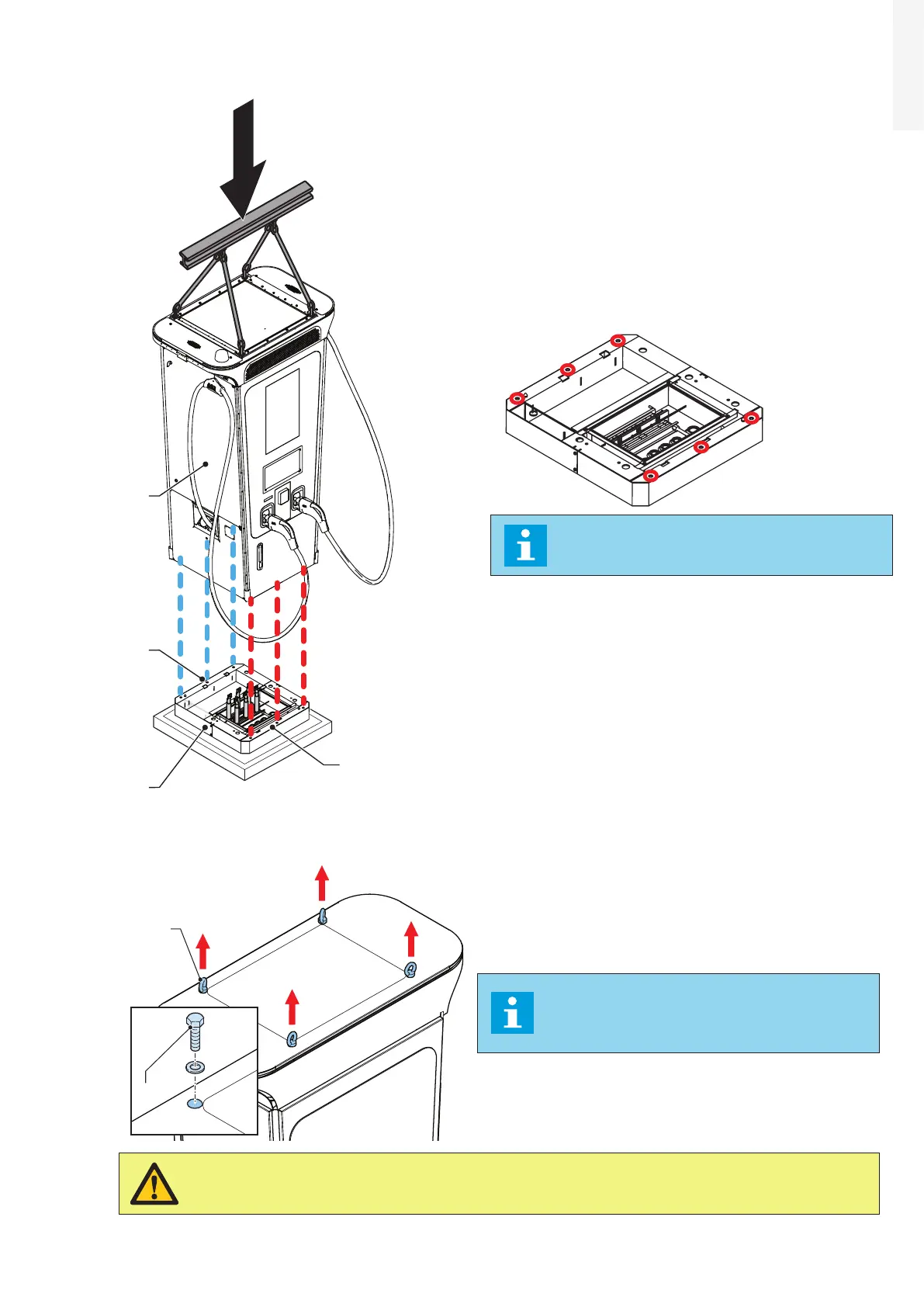

• Move the EVSE (A) on top of the base (B). Use a crane or
a forklift.
•
Carefully lower the EVSE on the base. Make sure that
cables do not get trapped between the EVSE and the
base.
• Make sure that the 6 holes in the EVSE (A) and the base
(B) are aligned.
NOTE
To help this operation 2 centering pins are
installed on the base.
• Open the front door of the EVSE.
•
Install the 3 front bolts (D), located on the internal lower
part of the EVSE (in red), to secure it to the base.
• Open the rear door of the EVSE.
• Install the 3 rear bolts (C), located on the internal lower
part of the EVSE (in blue), to secure it to the base.
• Close all doors of EVSE.
A
B
• Remove the eye bolts (A) on the roof.
•
Install the fasteners (B), each with a flat washer and a
split lock washer.
NOTE
The fasteners, the flat washers and the split
lock washers are placed in a bag, in the lower
internal part of the EVSE.
CAUTION
Make sure that there are no kinks in the cables
The mechanical installation of the EVSE Terra 360 is completed and the electrical connections can be done.
