Electrical installation
70
Cabinet installation (IP21, UL type 1)
The drive can be installed in a cabinet without the connection box and front cover.
It is recommended:
• to ground the cable shield 360 degrees at the cabinet entry
• to lead the cable unstripped as close to the terminals as possible.
Secure the cables mechanically.
Protect the RMIO board terminals X25 to X27 against contact when input voltage
exceeds 50 V AC.

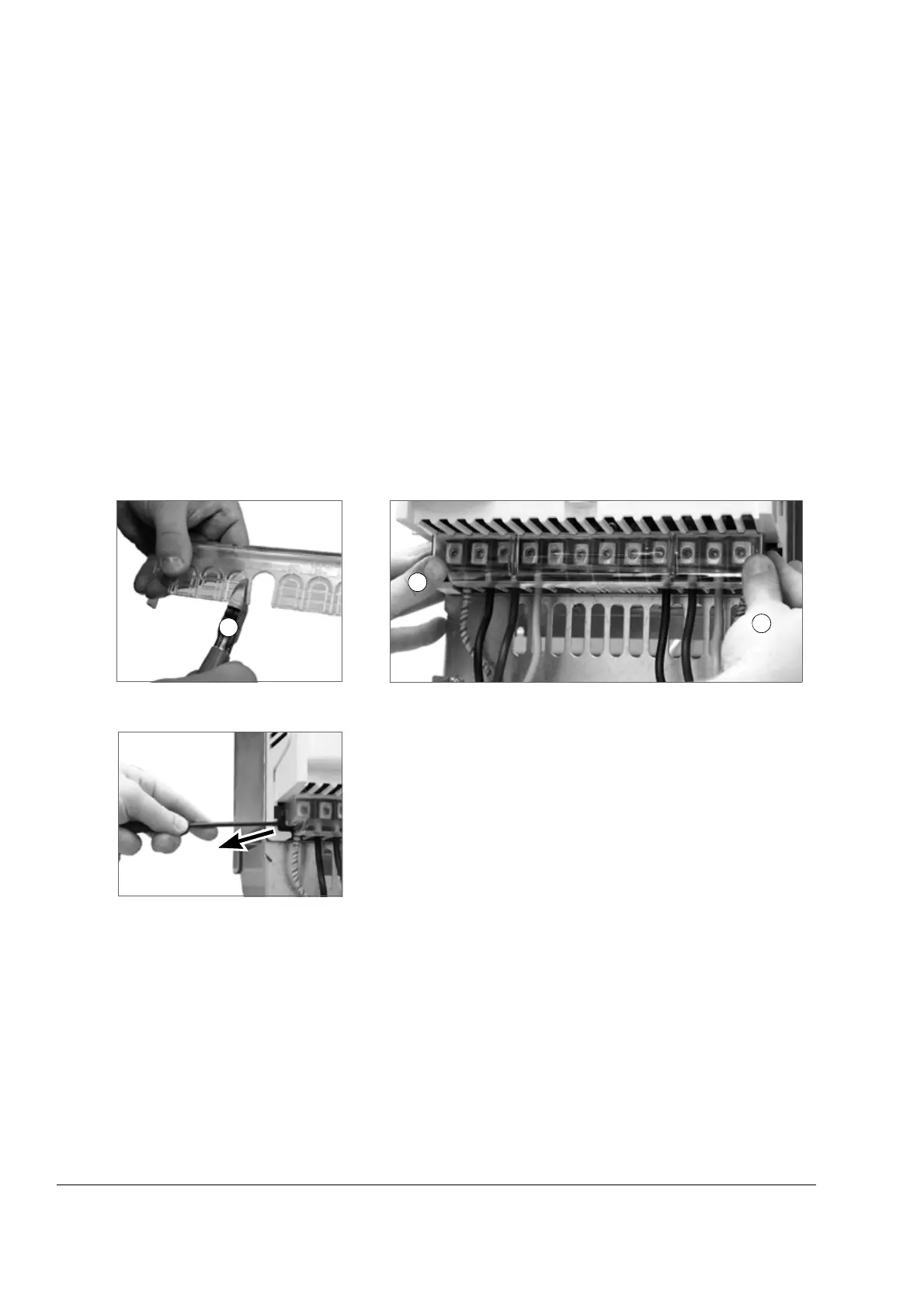

Frame size R5
Cover the power cable terminals as follows:
1. Cut holes for the installed cables into the clear plastic shroud.
2. Press the shroud onto the terminals.
Removal of the shroud with a screw driver:
