Start-up and use
95
Start-up and use
What this chapter contains
This chapter describes the start-up procedure and use of the drive.
Startup procedure
1. Ensure that the installation of the drive has been checked according to the
checklist in chapter Installation checklist, and that the motor and driven
equipment are ready for start.
2. Switch the power on and set-up the drive control program according to the start-
up instructions given in the drive firmware manual.
3. Validate the Prevention of unexpected start-up function (option +Q950) according
to the instructions given in chapter Installation of the AGPS board (Prevention of
unexpected start-up, +Q950).
4. Validate the Safe torque off function (option +Q967) according to the instructions
given in ACS800-01/04/11/31/104/104LC Safe torque off function (+Q967),
Application guide (3AUA0000063373 [English]).
Control panel
The user interface of the drive is the control panel (type CDP 312R). For more
information on using the control panel, see the firmware manual delivered with the
drive.
Removing the control panel

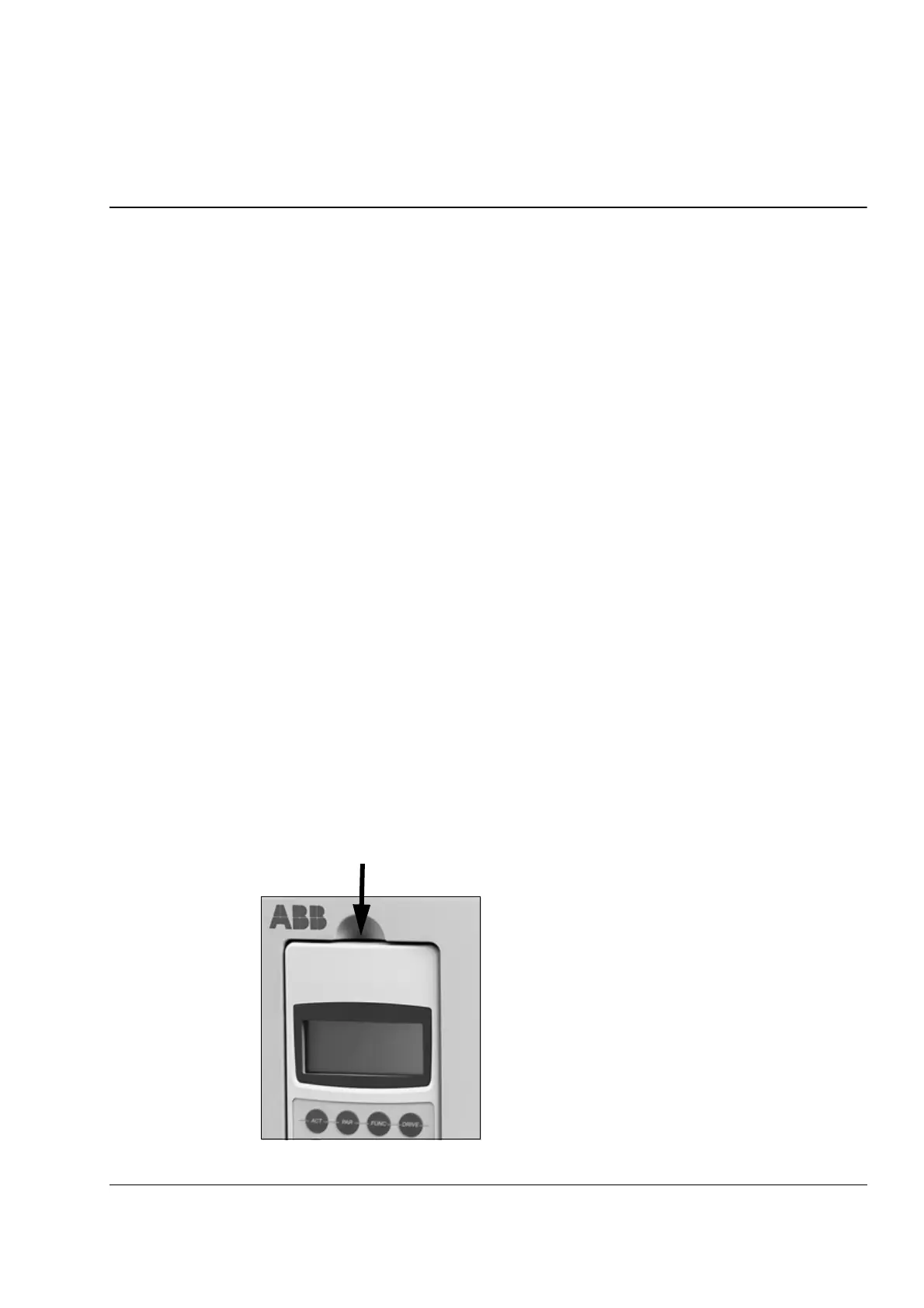

To remove the control panel from the panel holder, press down the locking clip and
pull the panel out.
