43
13.
Command
page
From
this
page,
it
is
possible
to
access
the
HMI
command
objects
configured
in
the
application
software
of
REF
542plus.
For
more
information
on
these
objects,
refer
to
Operating
T
ool
user
manual.
A051352

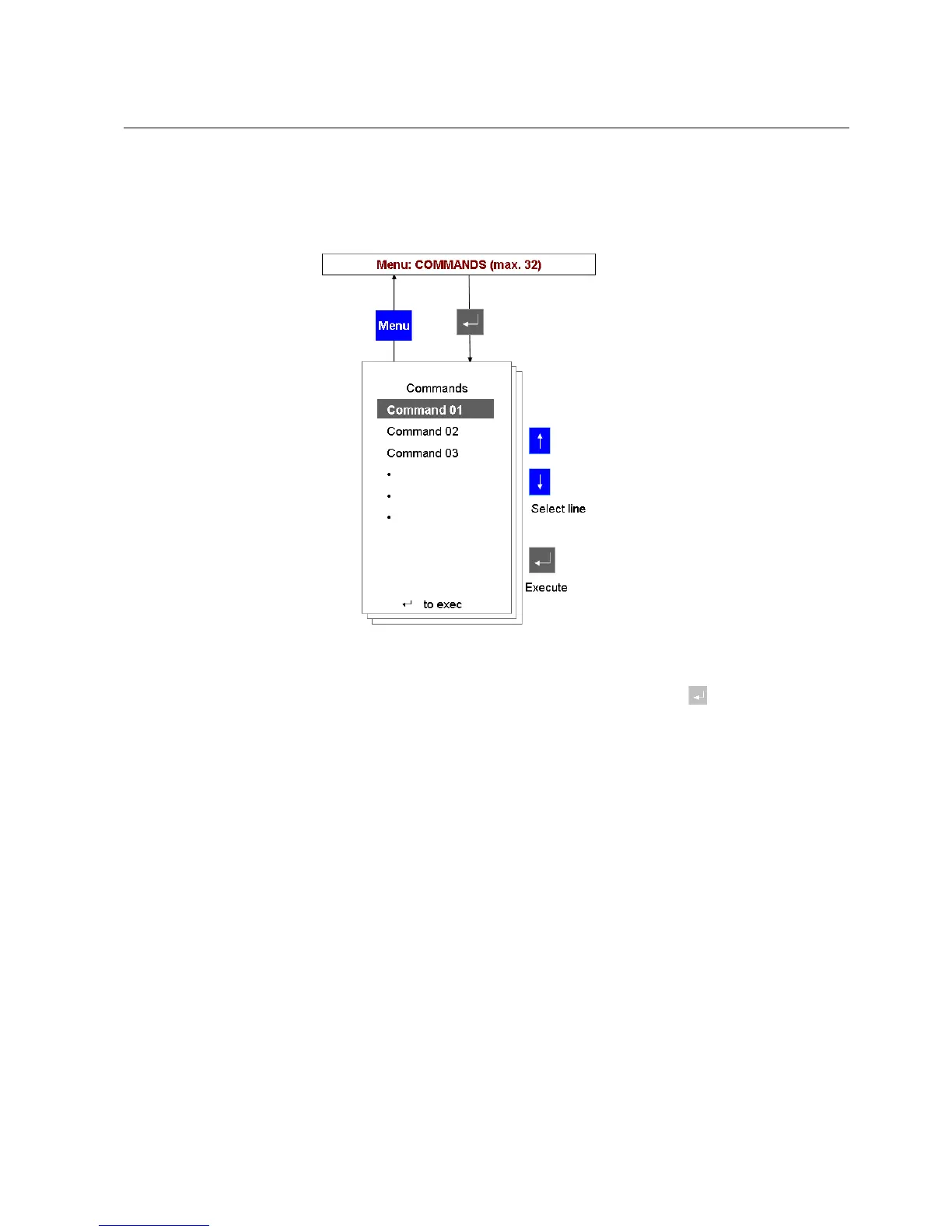

Fig.
13.-1
Command
page
By
selecting
the
desired
command
and
pressing
ENTER
the
command
is
executed.
Multifunction
Protection
and
Switchgear
Control
Unit
Operator's
manual
REF
542plus
REF
542plus
1MRS755869
42
44
