ABB REF 542plus User Manual

BIO3 Code Description
1VCF750132R0804 Binary I/O3 - 80..250 VDC/50 VDC Standard with
Static Channel
1VCF750132R0802 Binary I/O3 - 80..250 VDC/50 VDC Standard with
interconnected '-' on inputs
1VCF750132R0804 Binary I/O3 - 80..250 VDC/50 VDC Standard with
Static Channel and with interconnected '-' on inputs
1VCF750132R0805 Binary I/O3 - 80..250 VDC/72 VDC Standard
1VCF750132R0806 Binary I/O3 - 80..250 VDC/72 VDC Standard with
Static Channel
1VCF750132R0807 Binary I/O3 - 80..250 VDC/143 VDC Standard
1VCF750132R0808 Binary I/O3 - 80..250 VDC/143 VDC Standard with
Static Channel
A051455

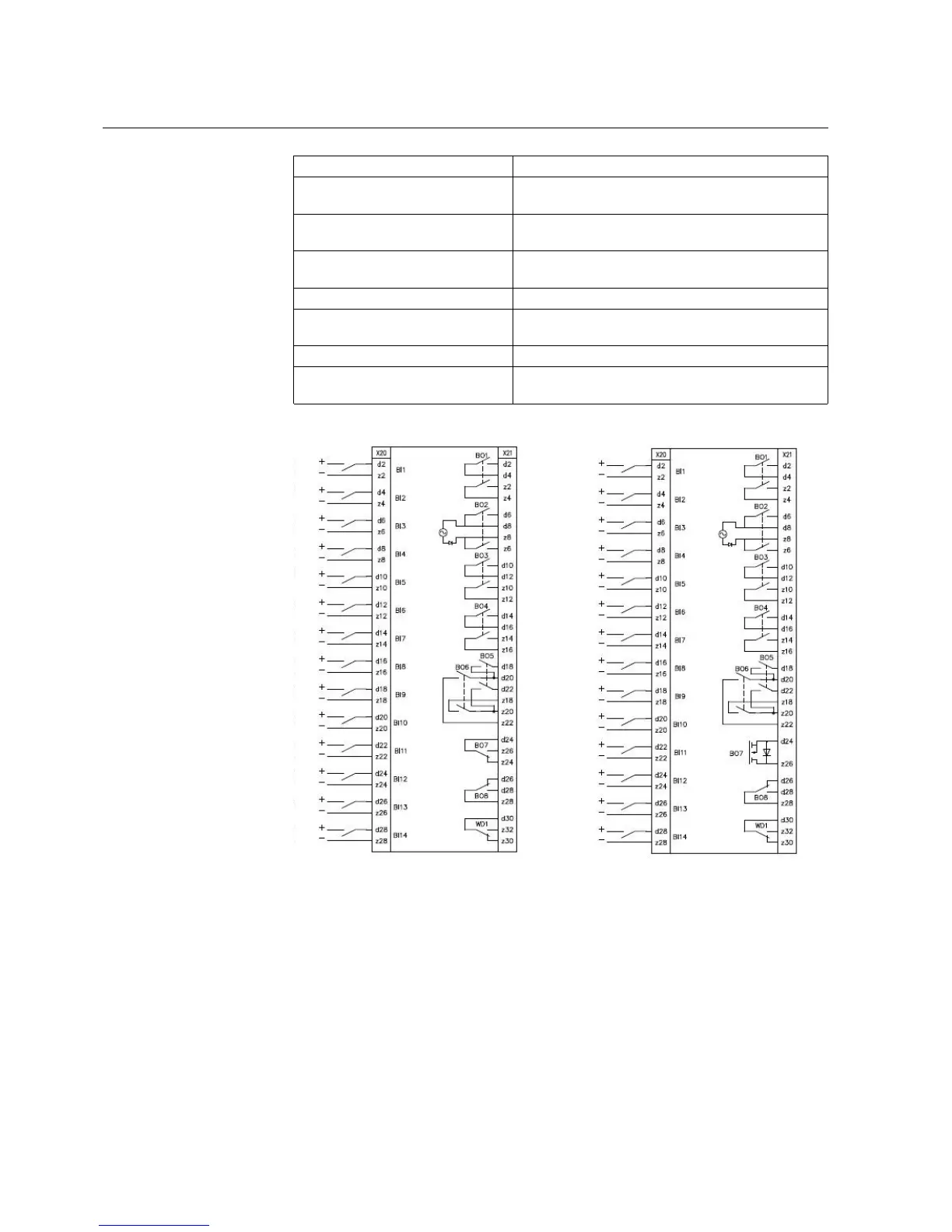

Fig. 19.2.2.1.-1 2 BIO3 modules with interconnected inputs and the static output
19.3. Other connections
19.3.1. Analog outputs 0/4-20 mA
The 4 analog outputs, when present, are available at connector X50 accordingly to
the following diagram (see Fig. 19.3.1.-1). The not used pins, including the
shielding of the cable are connected to ground.
80
REF 542plusREF 542plus
Multifunction Protection and Switchgear Control Unit
Operator's manual
1MRS755869
