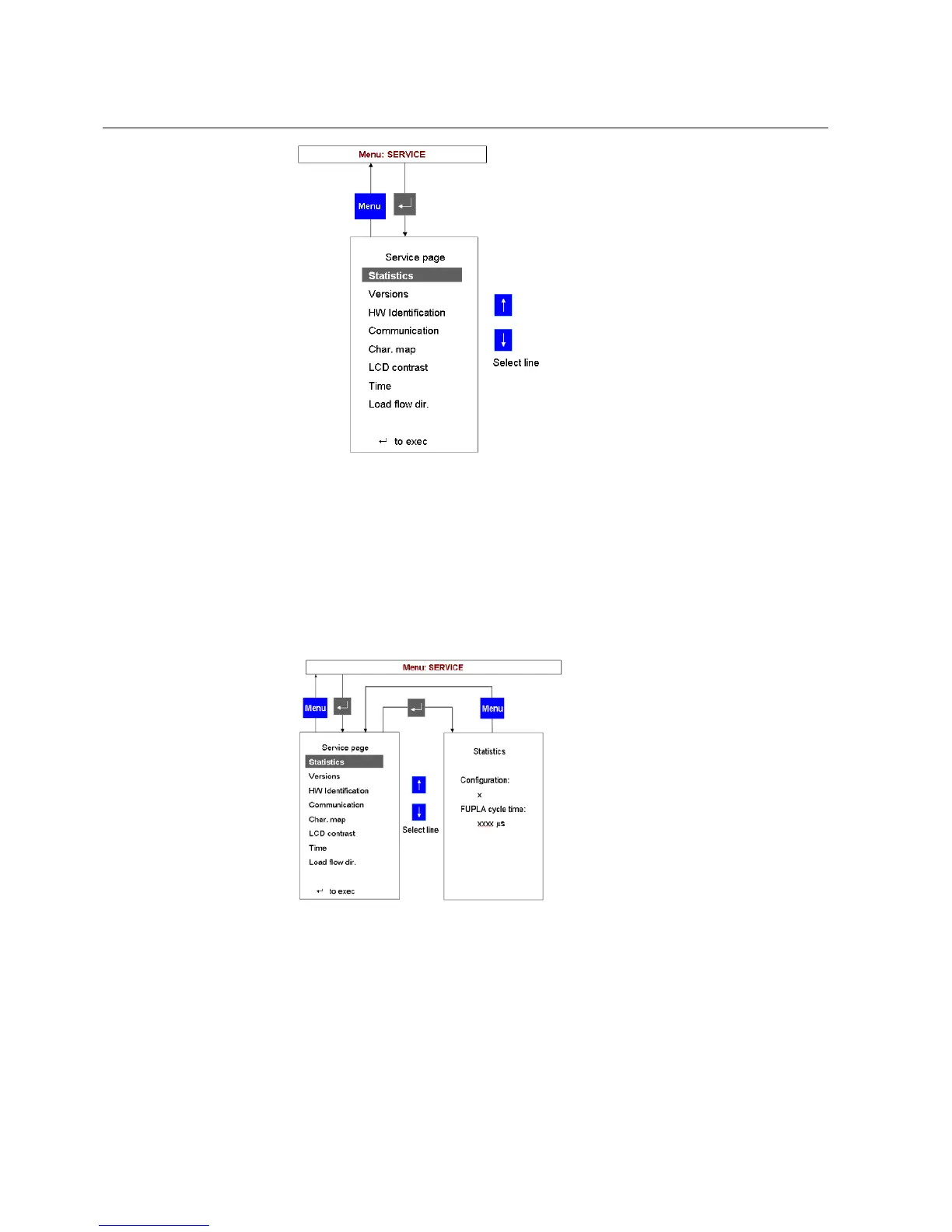

A051463
Fig.
20.6.-1
Service
page
menu
The
service
page
contains
the
following
submenus.
20.6.1.
Statistics
This
submenu
shows
the
FUPLA
cycle
time
and
other
information
related
to
the
current
configuration
in
the
unit.
A051464
Fig.
20.6.1.-1
Statistics
submenu
20.6.2.
V
ersions
This
submenu
displays
information
on
the
firmware
versions
loaded
inside
the
unit.
88
REF
542plus
REF
542plus
Multifunction
Protection
and
Switchgear
Control
Unit
Operator's
manual
1MRS755869
87
89
