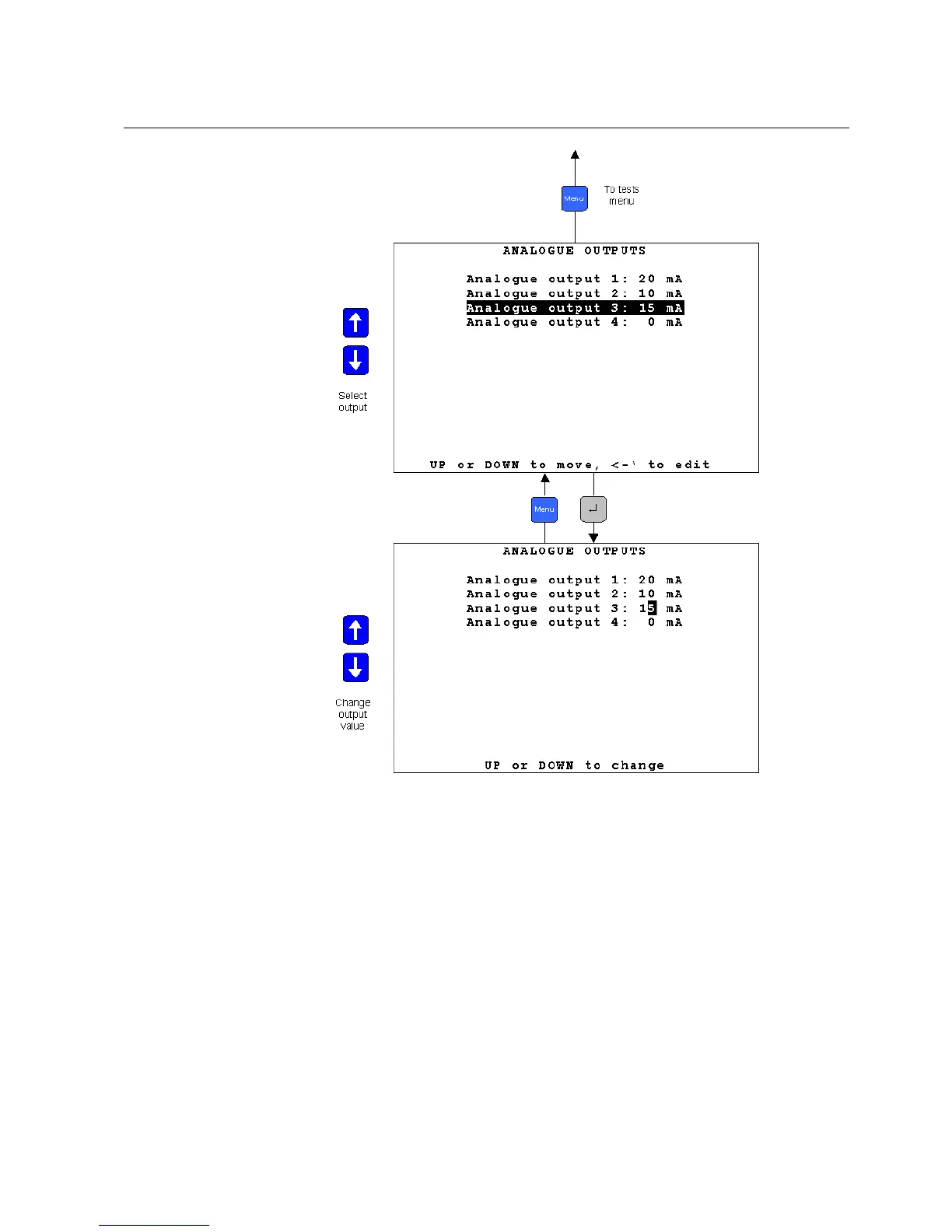

Fig. 14.4.-1 A 4-20 mA analog outputs commissioning page
14.5. Analog input 4-20 mA commissioning page
From this page, it is possible to read the analog measurements of the Analog Input
4-20 mA module. The shown measurements will be depending on the connected
sensor type. In case of a general 4-20 mA sensor, the value of the applied current to
the channel is displayed. In case of a SF6 Trafag sensor, the density and the
temperature are displayed.
Multifunction Protection and Switchgear Control Unit
Operator's manual
REF 542plusREF 542plus
1MRS755869
