ABB REF 542plus User Manual

A051357

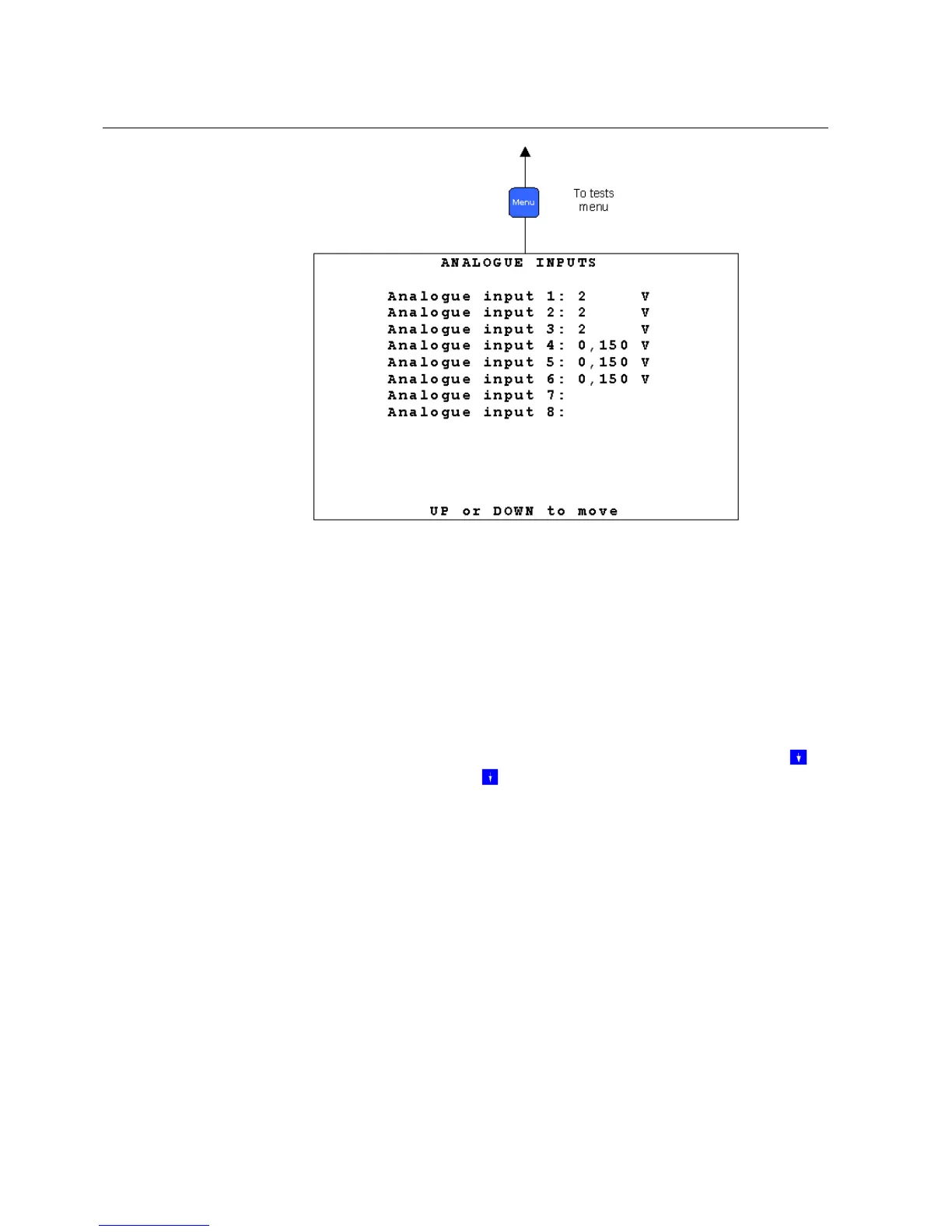

Fig. 14.3.-2 Analog inputs commissioning page for the 6 sensor module connected to 3
voltage divider and 3 Rogowski coils
14.4. Analog output 4- 20 mA commissioning page
This page allows setting the value of the analog channels in the 4-20 mA module.
Line description: “Channel descriptor”“Channel number “: “Values”
Channel descriptor: Analog Output
Channel number: x. Where x addresses the analog output channel.
Values:
0/4 mA to 20 mA, step 1 mA. The value can be set with UP
,
DOWN
.
50
REF 542plusREF 542plus
Multifunction Protection and Switchgear Control Unit
Operator's manual
1MRS755869
