ABB RELION RET670 User Manual

V
ref
I
dir
ANSI09000636-1-en.vsd
1
2
2
3
4
ANSI09000636 V1 EN-US

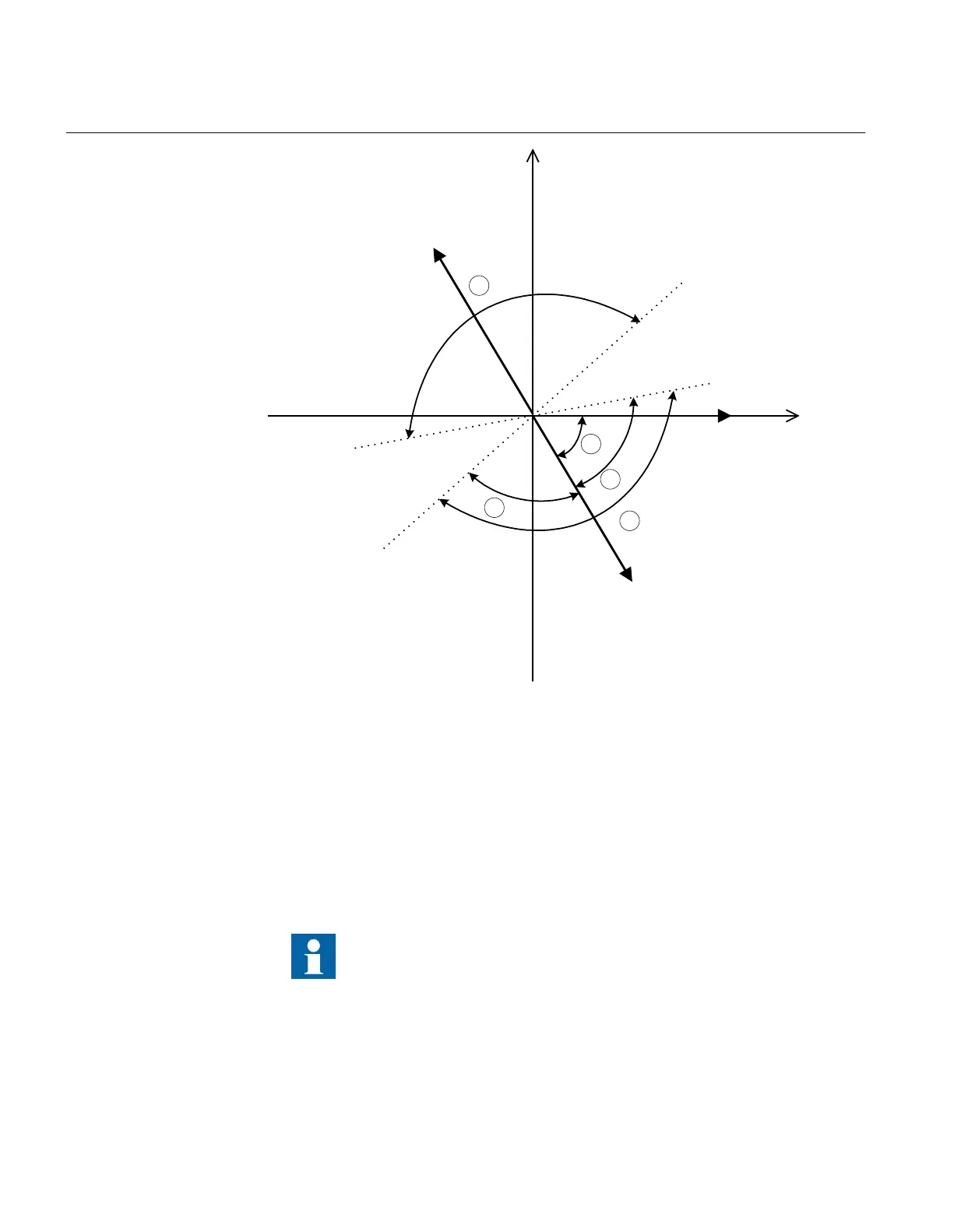

Figure 260: Directional function characteristic
1. RCA = Relay characteristic angle
2. ROA = Relay operating angle
3. Reverse
4. Forward
9.2.3.1 Settings for each step
M12982-19 v10
x means step 1, 2, 3 and 4.
DirModeSelx: The directional mode of step x. Possible settings are Disabled/Non-
directional/
Forward/Reverse.
Section 9 1MRK 504 163-UUS A
Current protection
522 Transformer protection RET670 2.2 ANSI
Application manual

ABB RELION RET670 Specifications

General

Rated Frequency	50/60 Hz
Communication Protocols	IEC 61850, IEC 60870-5-103, DNP3
Operating Temperature Range	-25°C to +55°C
Mounting	Rack Mounting
Input Voltage	100-240 V AC
Protection Functions	Overcurrent Protection
Enclosure	IP20
