94
Chapter 3

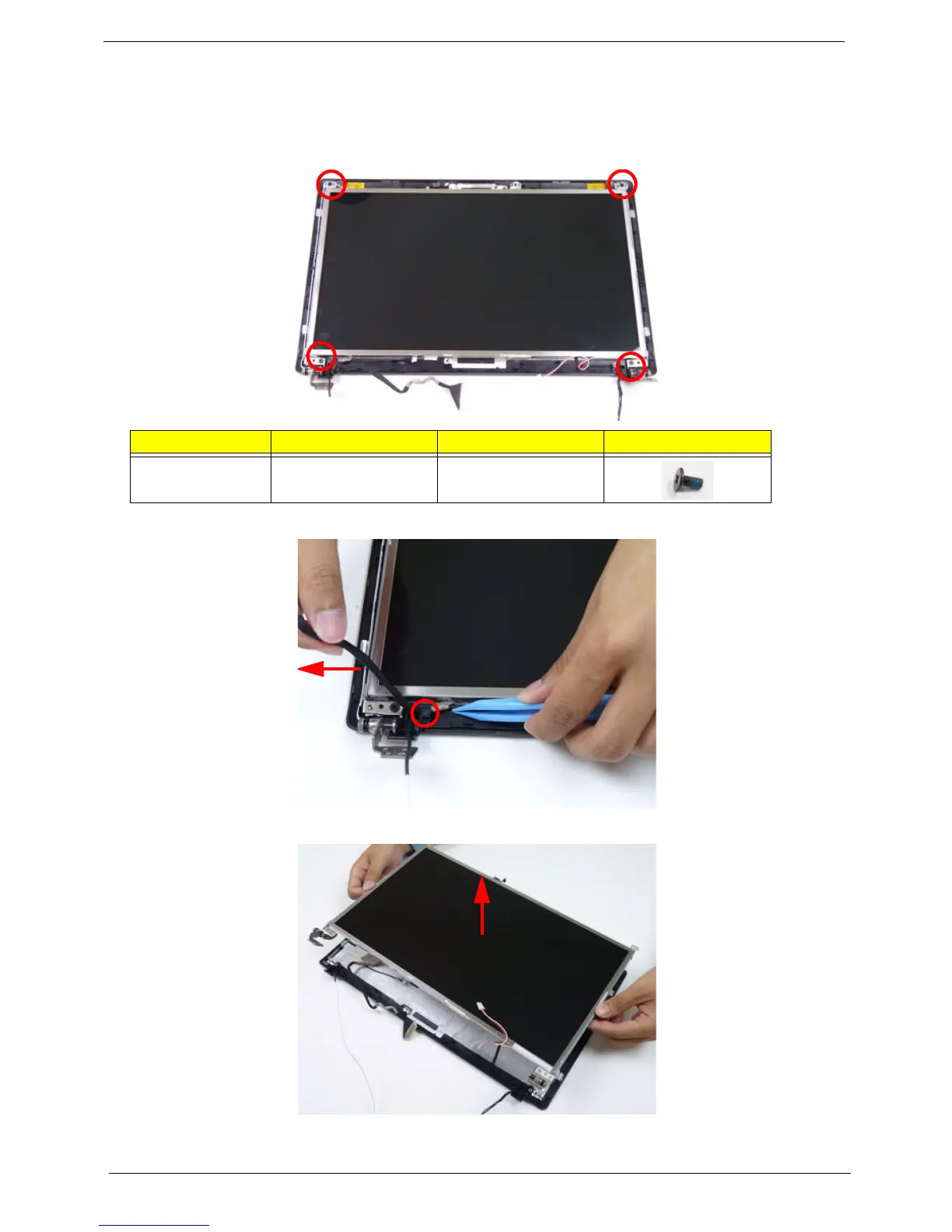

Removing the LCD/LED Panel
1.
See “Removing the LCD Bezel” on page 90.
2.
Remove the four (4) securing screws from the LCD/LED panel.
3.
Remove the cable from the cable guide.
4.
Lift the LCD/LED Panel clear of the module.
Ste
p
Size
Quantity
Screw T
ype
LCD/LED Panel
M2.5*5
4
