Removing the Thermal Module
1. See “Removing the Upper Cover” on page 64.
2. Disconnect the fan cable.

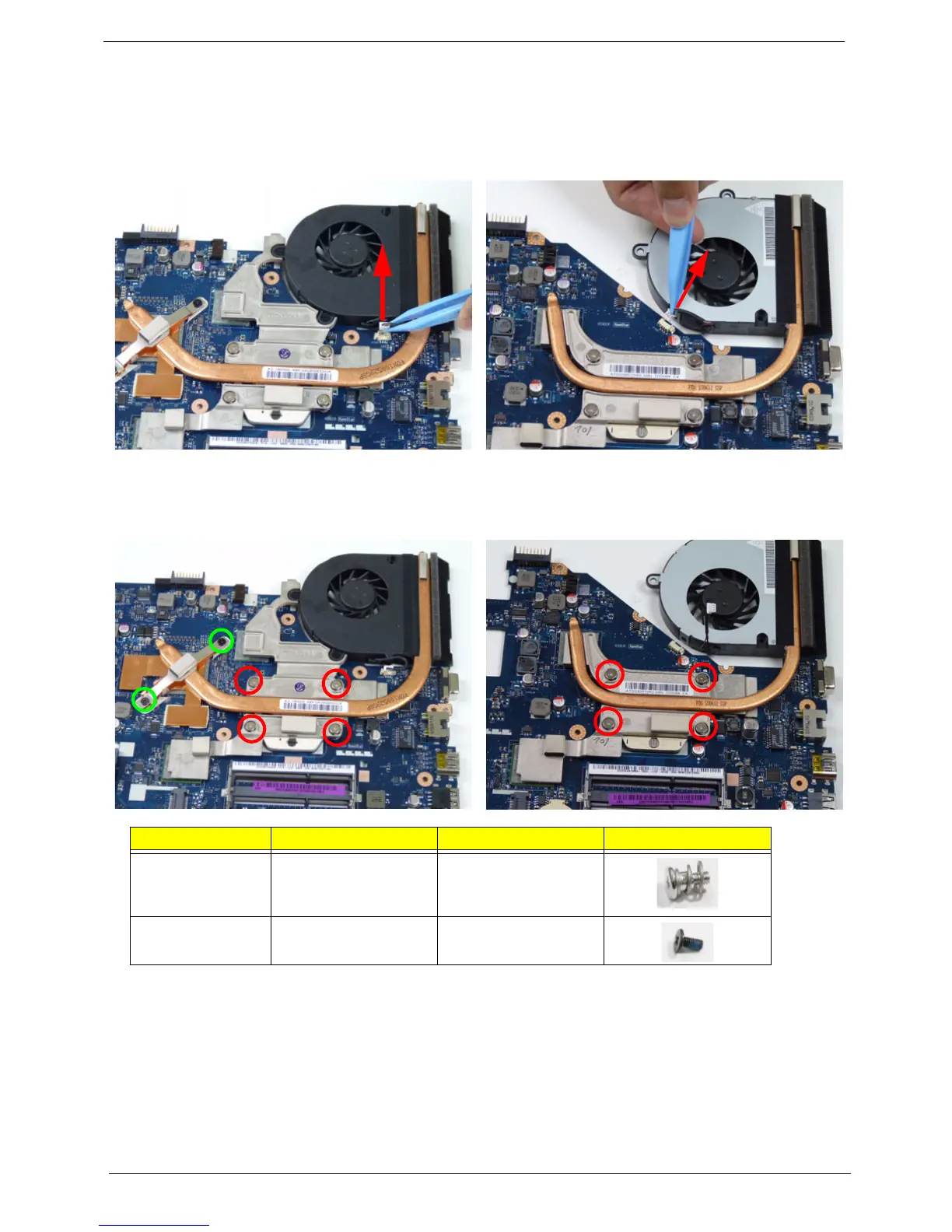

3. Remove the four (4) securing screws (in reverse numerical order from screw 4 to 1) from the thermal module.
In the discrete model, remove two (2) additional screws (in reverse numerical order from screw 6 to 5).
Discrete UMA
Discrete UMA
Step Size Quantity Screw Type
Thermal Module M1.98*3 (red
callouts)
4
(Discrete only) M2.5*5(green
callouts)
2
1
2
3
4
5
6
1
2
3
4
