Acer ASPIRE 5252 Service Guide

Chapter 3 97

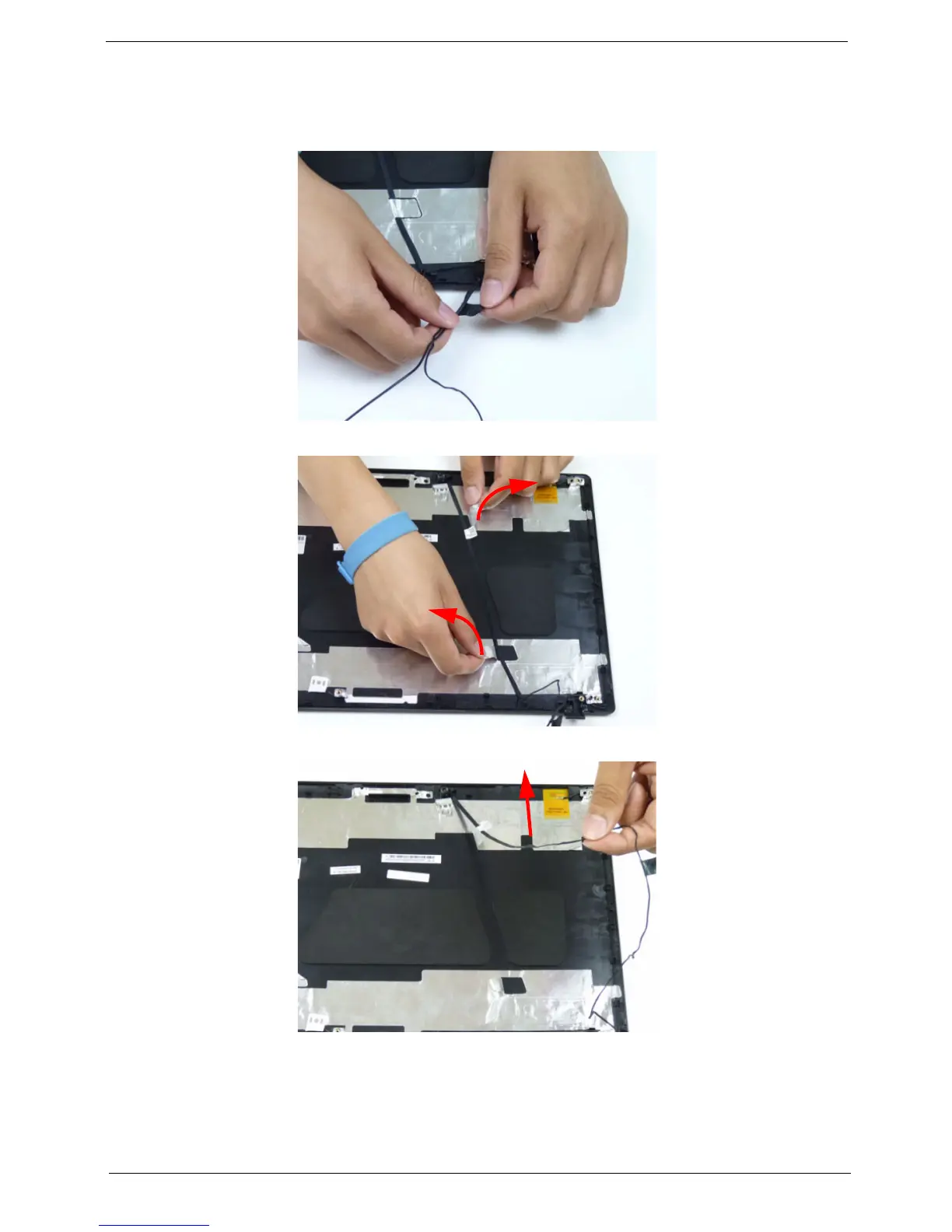

Removing the Microphone Cable
1. See “Removing the LCD/LED Panel” on page 94.
2. Remove the adhesive securing the microphone cable and antenna.
3. Peel back the foil tabs and remove the microphone cable from the cable channel.
4. Lift the microphone set clear of the panel.

Acer ASPIRE 5252 Specifications

General

Brand	Acer
Model	ASPIRE 5252
Category	Laptop
Language	English
