Chapter 3 169

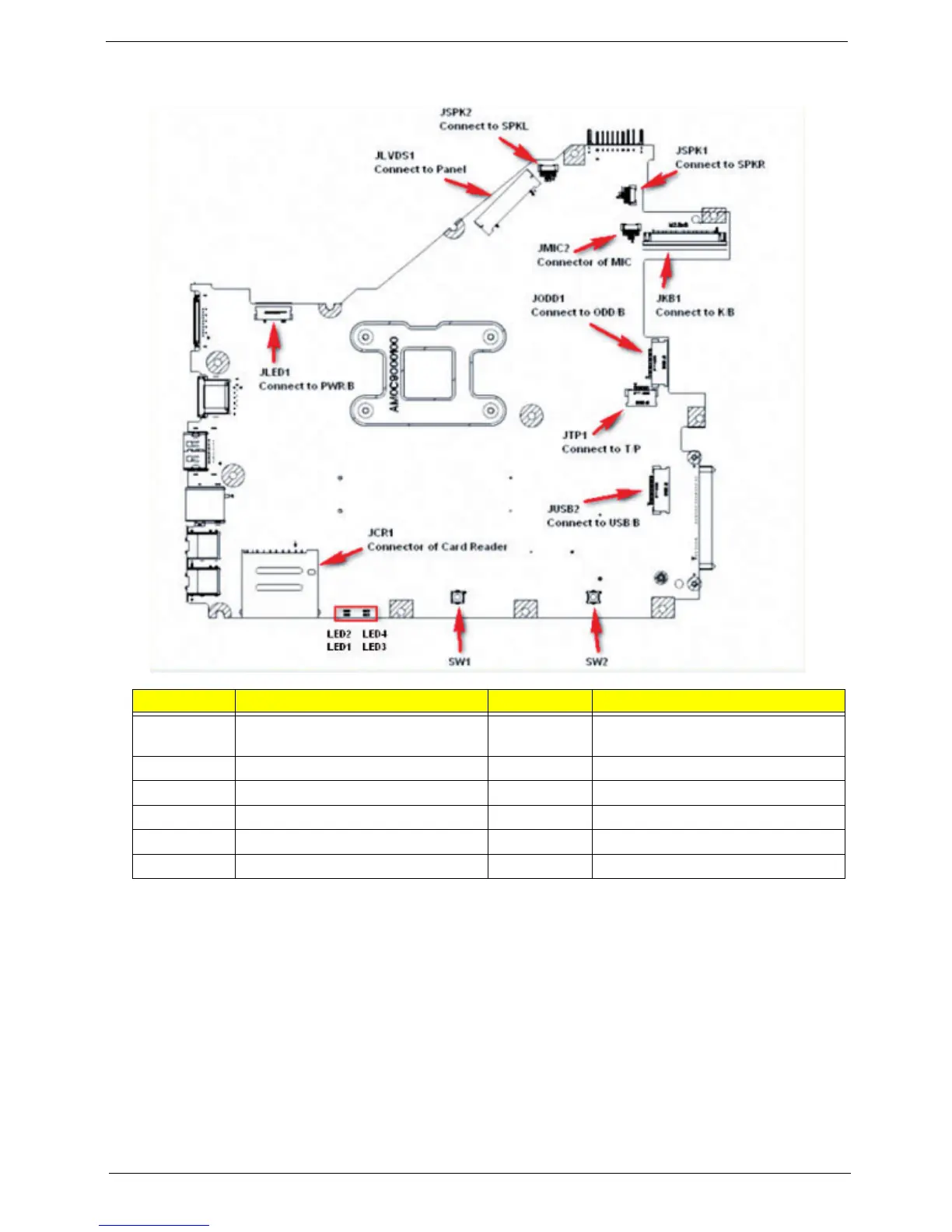

Top View (UMA)
Item Description Item Description
JLVDS1 LED / CCFL connector JCR1 Card Reader Board (FFC)
connector
JSPK2 Left Speaker connector JLED1 Powerboard (FFC) connector
JSPK1 Right Speaker connector JMIC2 Internal MIC connector
JKB1 Keyboard connector SW1/SW2 Left button / Right button
JTP1 Touch pad (FFC) connector LED1/LED2 Power State Indicator
JUSB2 USB Board (FFC) connector LED3/LED4 Battery Charging Indicator
To Next Page
