168 Chapter 3

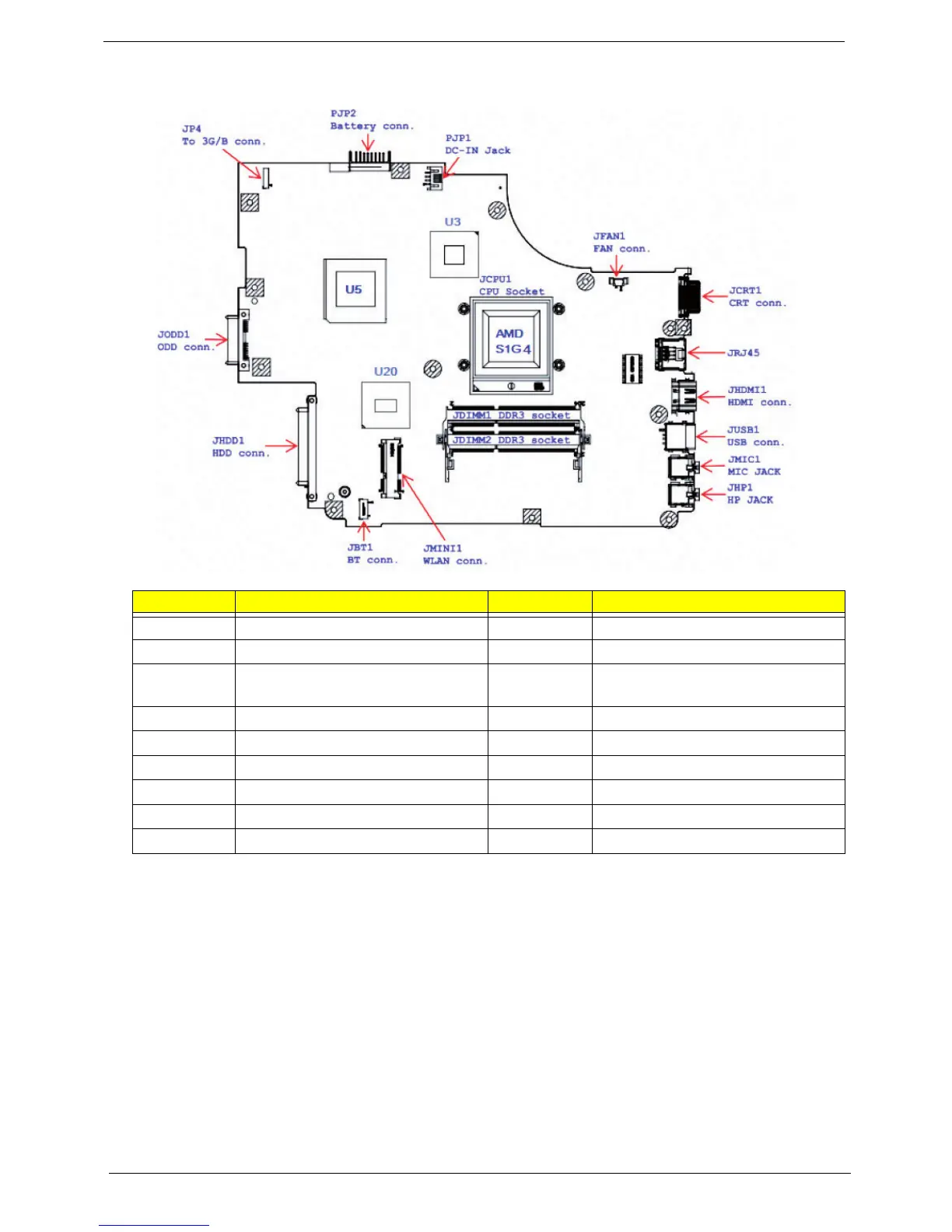

Bottom View (Discrete)
Item Description Item Description
PJP2 Battery connector JHP1 External SPDIF connector
PJP1 DC-IN jack JBT1 Bluetooth connector
JDIMM1/
JDIMM2
DDR3 memory socket JHDD1 SATAHDD connector
JCRT1 External CRT connector JODD1 SATAODD connector
JRJ45 RJ45 LAN JFAN1 FAN connector
JHDMI1 HDMI connector JCPU1 CPU socket
JMINI1 WLAN connector U3 NB RS880M
JUSB1 USB connector U5 VGA
JMIC1 External microphone connector U41 PCH
To Next Page
