130 Chapter 3
Replacing the Power Board
NOTE: The power board may vary depending your model.

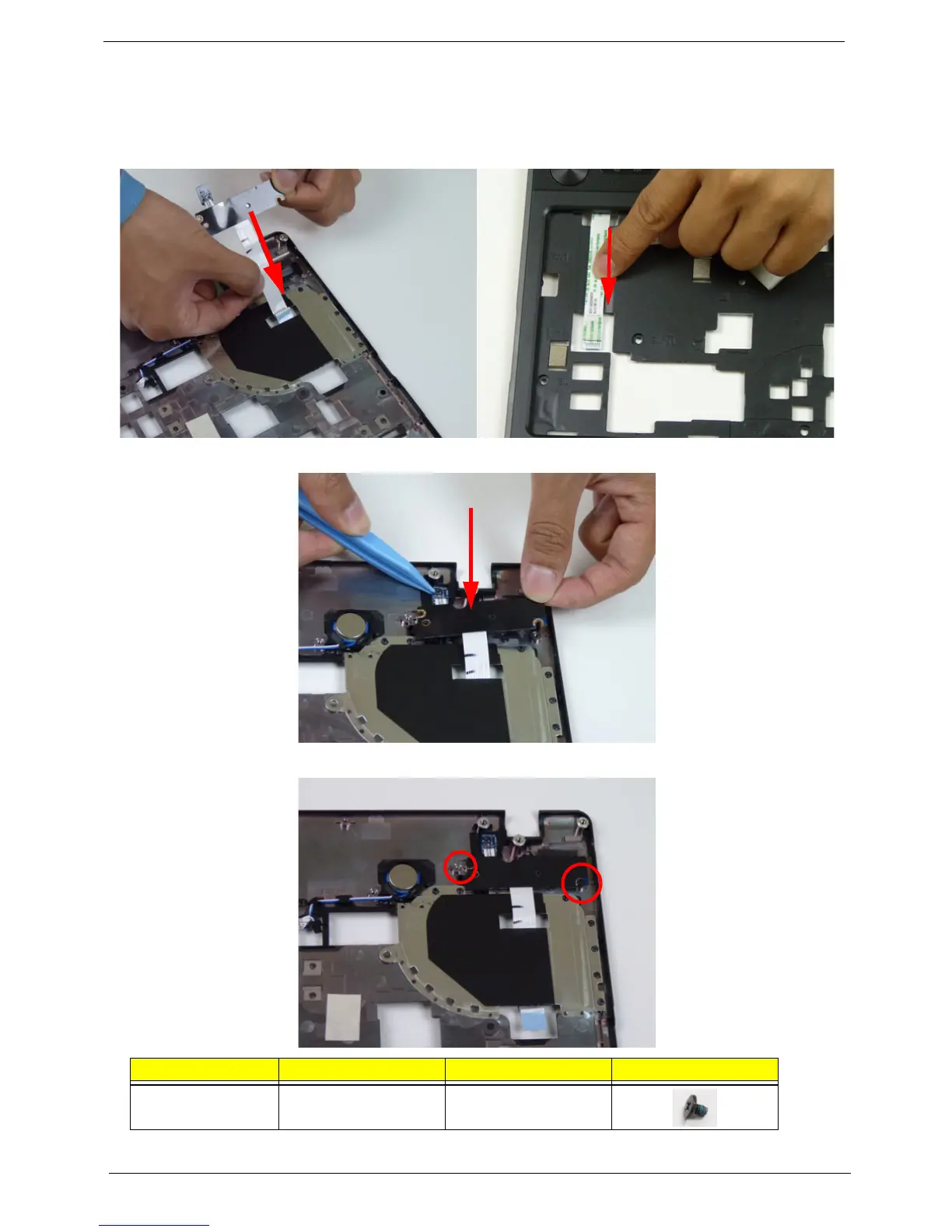

1. Pass the cable through the upper cover as shown. Turn the upper cover over and gently press down on the
FFC to secure it to the upper cover.
2. Place the power board onto the upper cover.
3. Replace two (2) screws to secure the power board.
Step Size Quantity Screw Type
Power Board M2*3 2
