Chapter 3 123

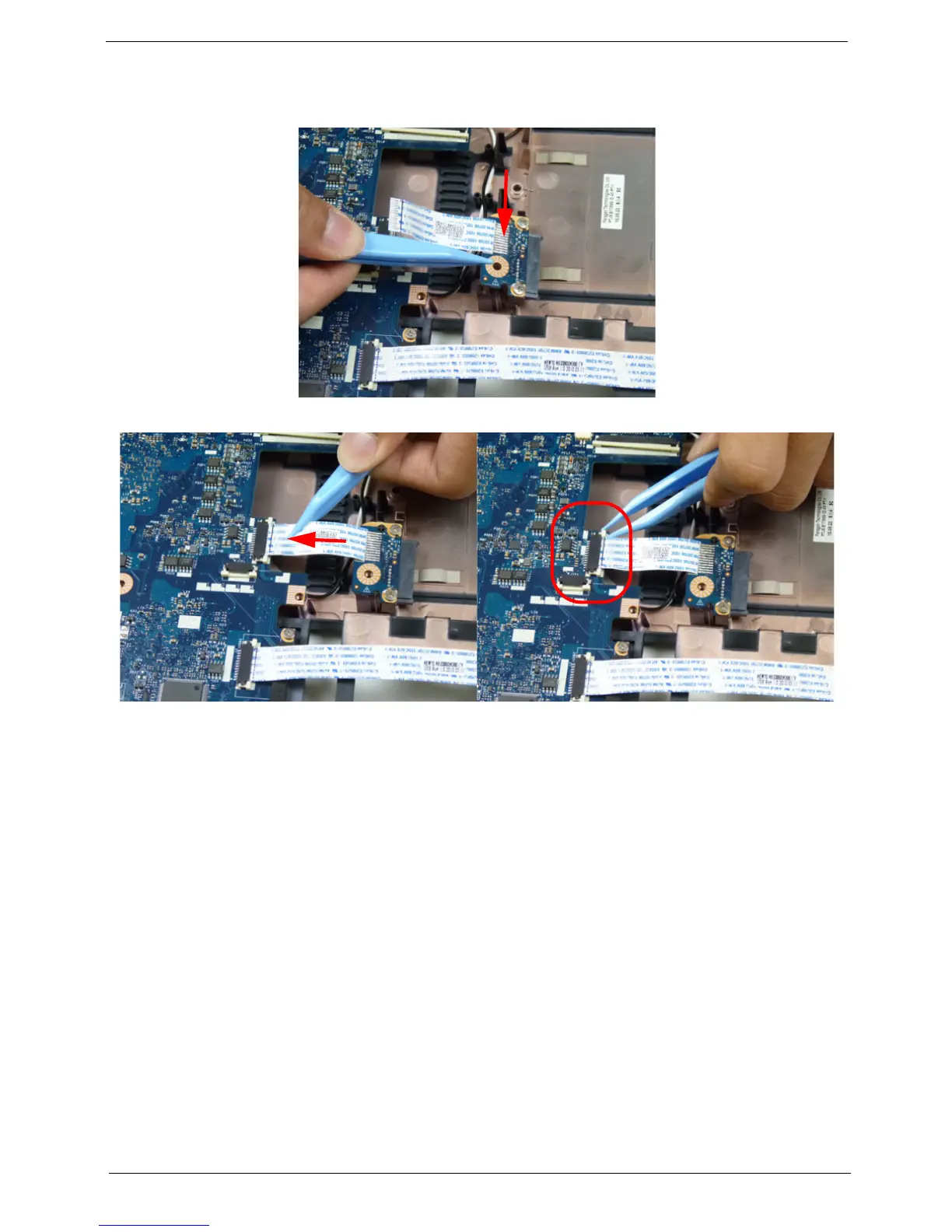

Replacing the ODD Connector Board (UMA Only)
1. Place the ODD connector board into the lower cover using the board pin.
2. Connect the ODD FFC to the mainboard and lock the connector.
