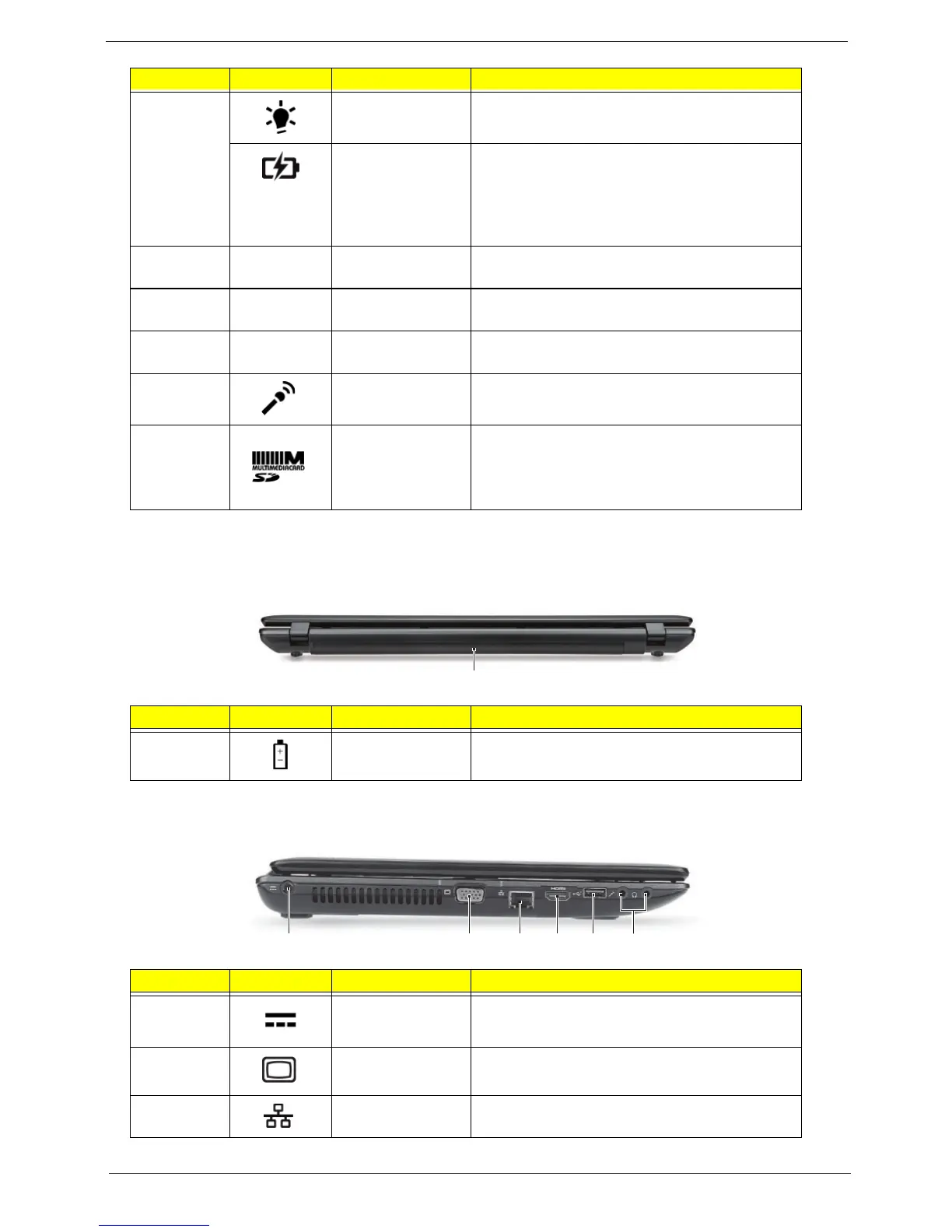

NOTE: The 2-in1 card reader will be on the front left for UMA models and on the front right for discrete models.
Rear View
Left View
7
Power
Indicates the computer’s power status.
Battery
Indicates the computer’s battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in
AC mode.
8 Click buttons (left
and right)
The left and right buttons function like the left
and right mouse buttons.
9 Palmrest Comfortable support area for your hands when
you use the computer.
10 Speakers Left and right speakers deliver stereo audio
output.
11 Microphone Internal microphone for recording sound.
2-in-1 card
reader
Accepts Secure Digital (SD), MultiMediaCard
(MMC).
Note: Push to remove/install the card. Only
one card can operate at any given time.
No. Icon Item Description
1 Battery bay Houses the computer's battery pack.
No. Icon Item Description
1 DC-in jack Connects to an AC adapter
2 External display
(VGA) port
Connects to a display device
(e.g. external monitor, LCD projector).
3 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based
network.
No. Icon Item Description
1
265431
