170 Chapter 3

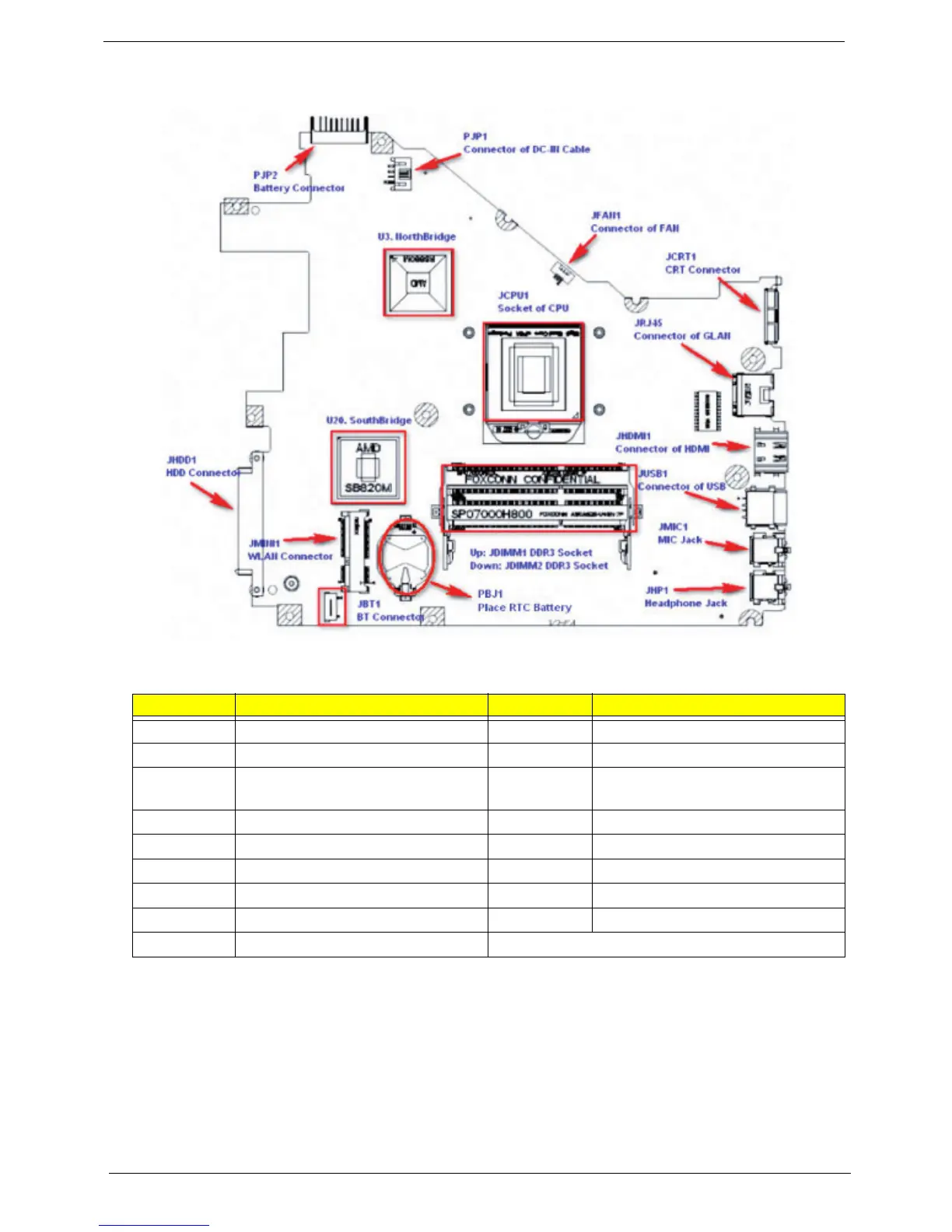

Bottom View (UMA)
Item Description Item Description
PJP2 Battery connector JHP1 External SPDIF connector
PJP1 DC-IN jack JBT1 BT(with cable) connector
JDIMM1/
JDIMM2
DDR3 memory socket JHDD1 SATA HDD connector
JCRT1 D-Sub connector JODD1 SATA ODD connector
JRJ45 RJ45 of GLAN JFAN1 FAN connector
JHDMI1 HDMI connector JCPU1 CPU socket
JMINI1 WLAN connector U3 NB
JUSB1 USB connector U20 SB
JMIC1 External microphone connector
To Next Page
