3-3
8
Machine Maintenance Procedures
LCD Bezel Removal
0
Prerequisite:
LCD (Liquid Crystal Display) Mo
dule Removal

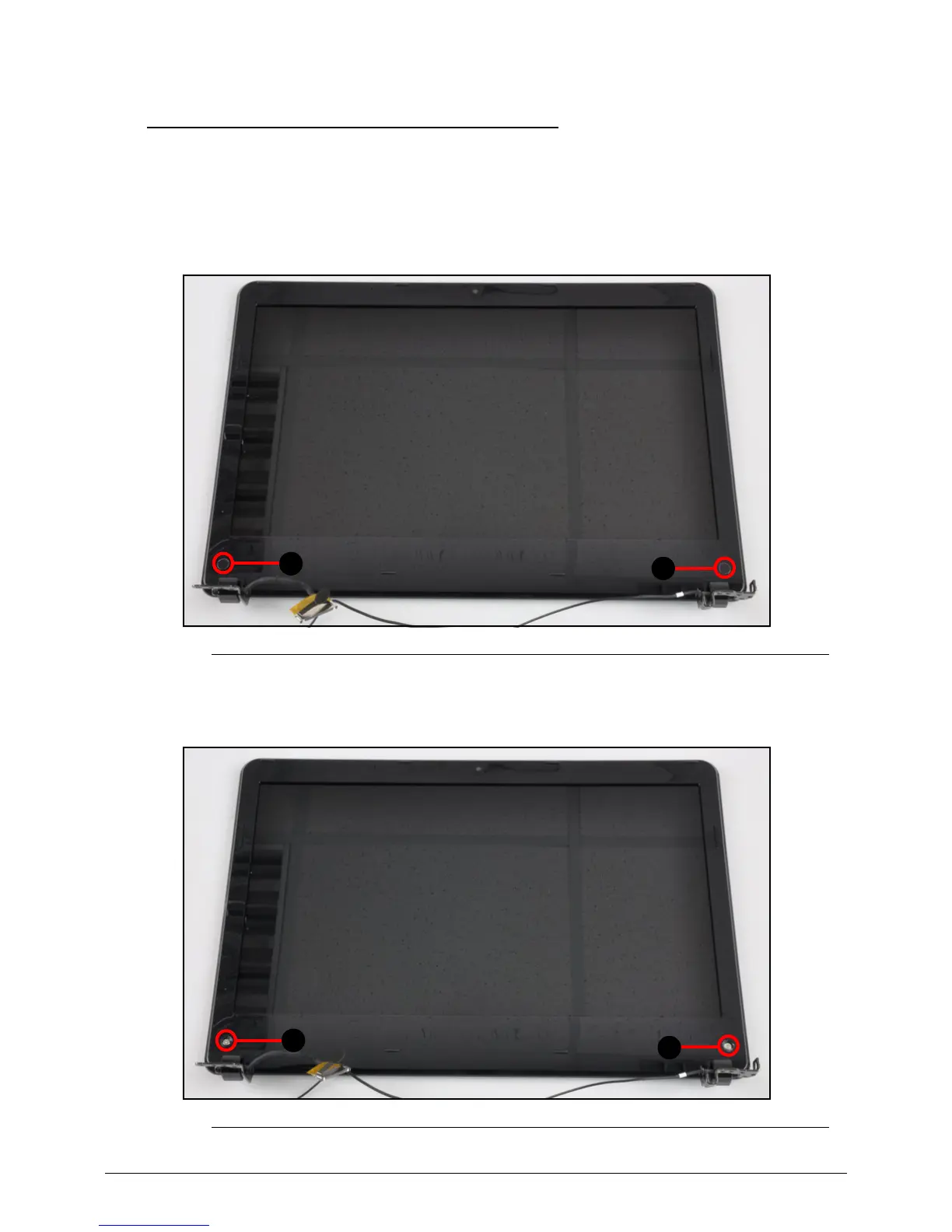

1.
Remove two (2) screw myla
r (A) from the LCD bezel (
Figur
e
3-36
).
Figure 3-36.
LCD
Bezel Screw Mylar
2.
Remove two (2) screws (B) se
curing the LCD bezel in place (
Figure
3-37
).
Figure 3-37.
LCD
Bezel Screw
A
A
B
B
