Replacing the Mainboard 0

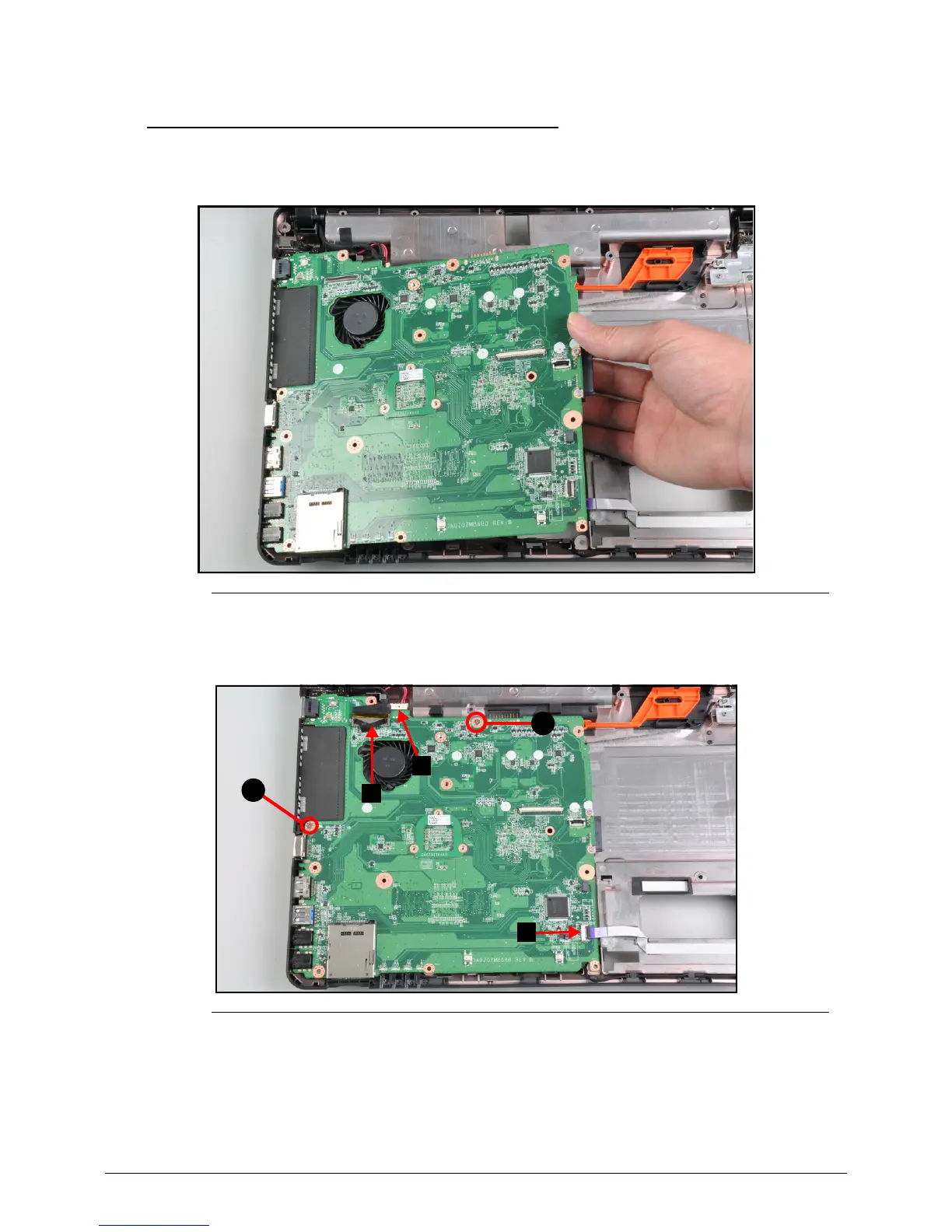

1. Place the mainboard onto the base assembly (Figure 3-68).
Figure 3-68. Mainboard Removal
2. Install and secure two (2) screws (C) to mainboard (Figure 3-69).
Figure 3-69. Mainboard Frontside
3. Connect IO Board FPC to mainboard connector (F) (Figure 3-69).
4. Connect DC-in cable to mainboard connector (E) (Figure 3-69).
5. Connect LVDS cable to mainboard connector (D) (Figure 3-69).
D
C
C
E
F
