Machine Maintenance Procedures 3-15

ODD Module Installation 0

1. Install ODD bezel (B) on ODD module (Figure 3-10).

2. Install ODD bracket (D) on ODD module (Figure 3-10).

3. Install and secure two (2) screws (C) to secure the bracket (D) to the back of ODD

(Figure 3-10).

4. Install ODD module into ODD bay. Refer to Figure 3-9.

5. Install and secure one (1) screw (A) to the ODD mudule. Refer to Figure 3-9.

6. Install Battery Pack.

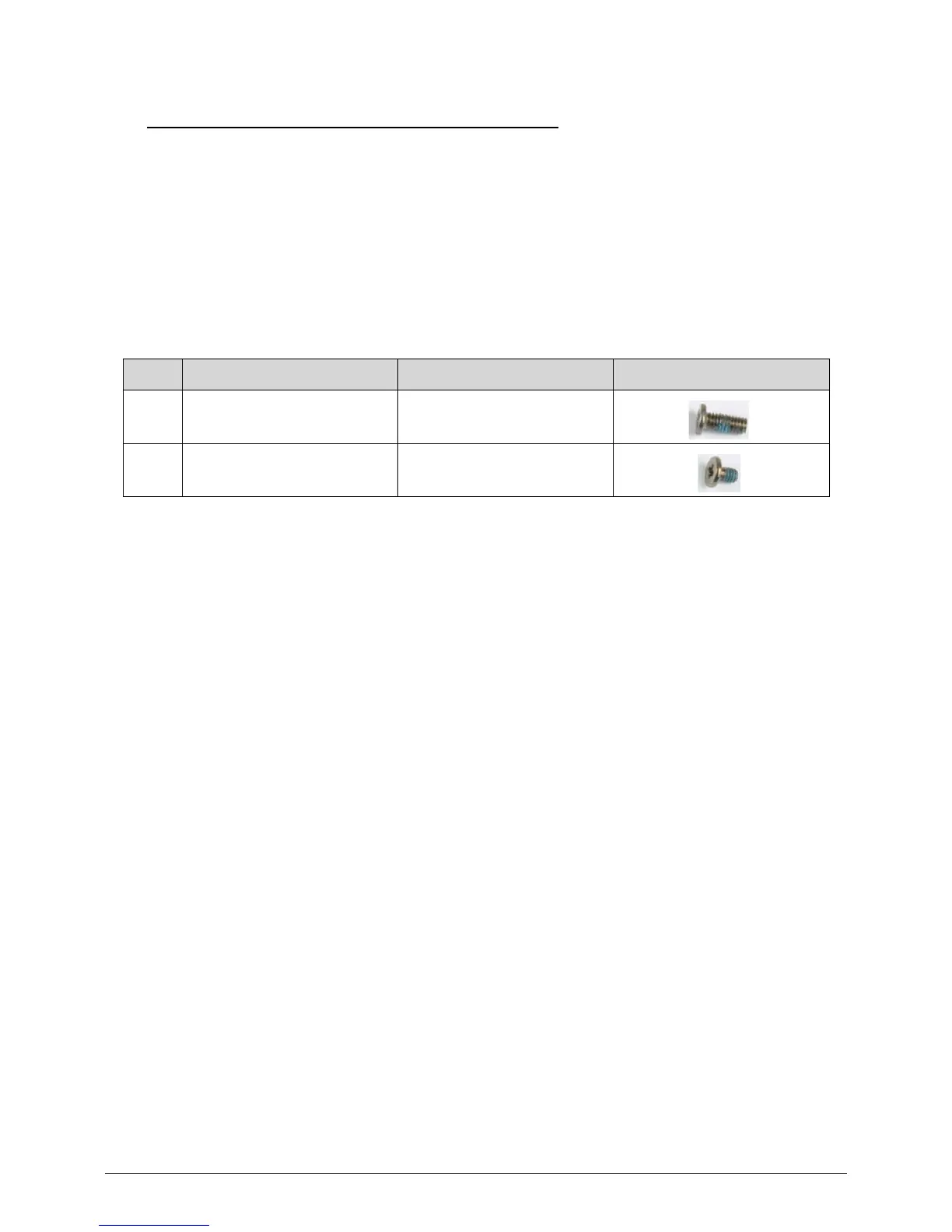

ID Size Quantity Screw Type

AM2.5*6 1

C M2.0*3.0 2
