3-18 Machine Maintenance Procedures

DIMM (Dual In-line Memory Module) Module Removal 0

Prerequisite:

Base Door Removal

1. Find DIMM (C) on the base assembly (Figure 3-11).

2. Push DIMM clips (A) outwards (Figure 3-14).

3. Remove DIMM from mainboard connector (B) (Figure 3-14).

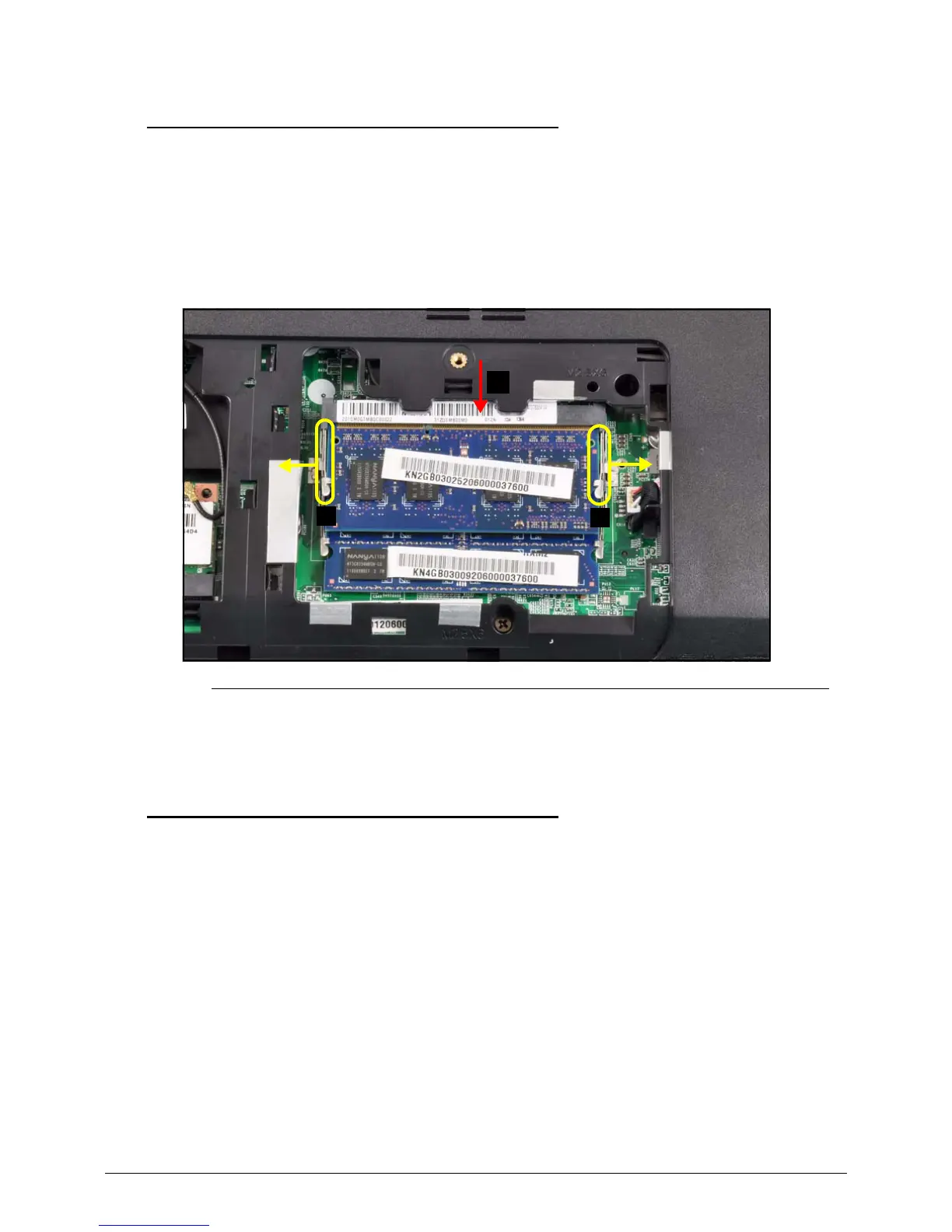

Figure 3-14. DIMM Modules

4. Repeat steps 2 and 3 for remaining modules.

DIMM Module Installation 0

1. Insert DIMM into mainboard connector (B). Refer to Figure 3-14.

2. Push down on DIMM until module clips (A) lock in position. Refer to Figure 3-14.

3. Repeat steps 2 and 3 for remaining modules.

4. Install Base Door.
