3-20 Machine Maintenance Procedures

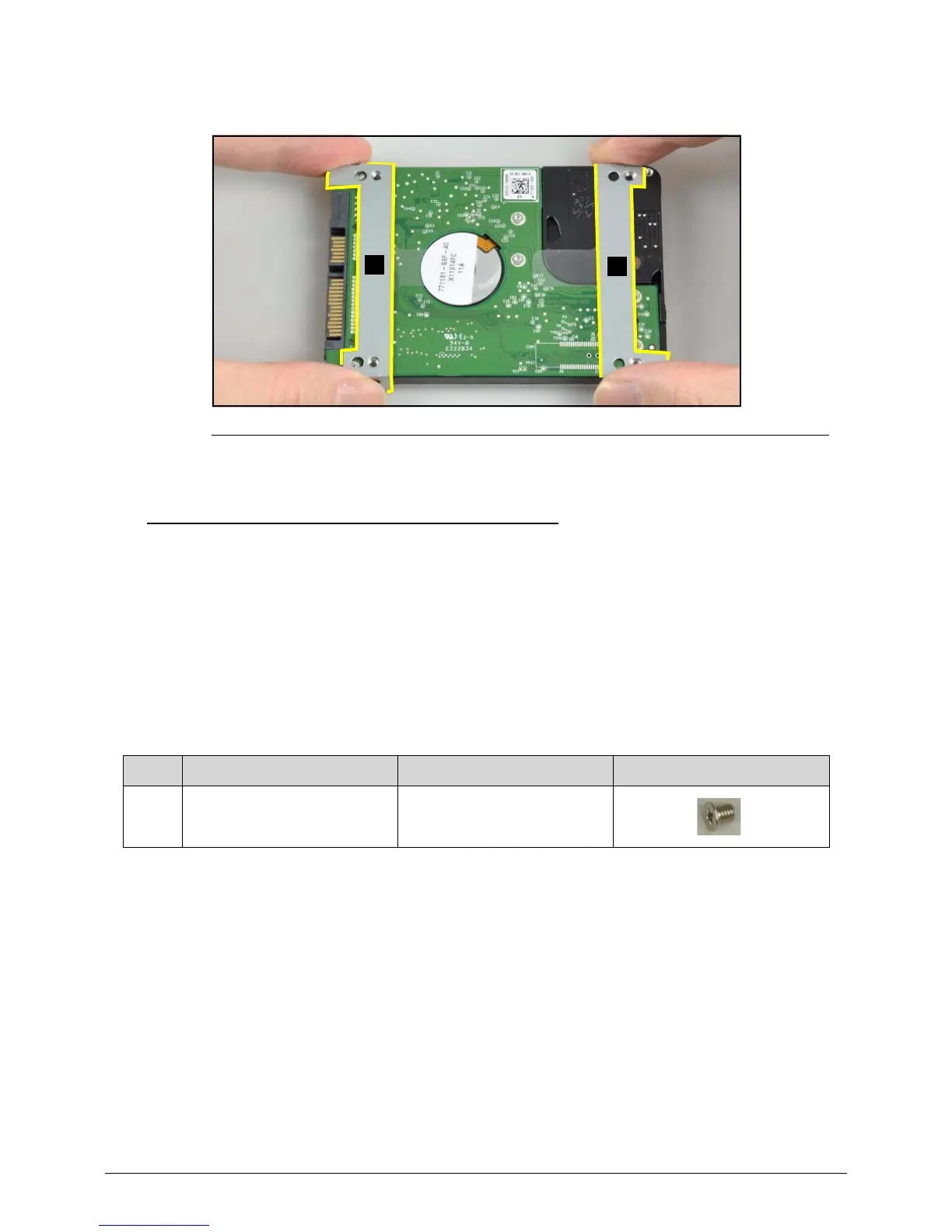

6. Remove HDD bracket (G) from HDD (Figure 3-17).

Figure 3-17. HDD Bracket

HDD Module Installation 0

1. Place HDD brackets (G) onto HDD (Figure 3-17).

2. Install and secure four (4) screws (F) to HDD brackets (G) (Figure 3-16).

3. Attach HDD cable to HDD connector (E). Refer to Figure 3-16.

4. Place HDD module onto the base assembly and connect HDD module to mainboard

connector (C). Refer to Figure 3-15.

5. Connect HDD cable to mainboard connector (D) (Figure 3-15).

6. Install Base Door.

ID Size Quantity Screw Type

F M3.0*3.5 Ni 4
